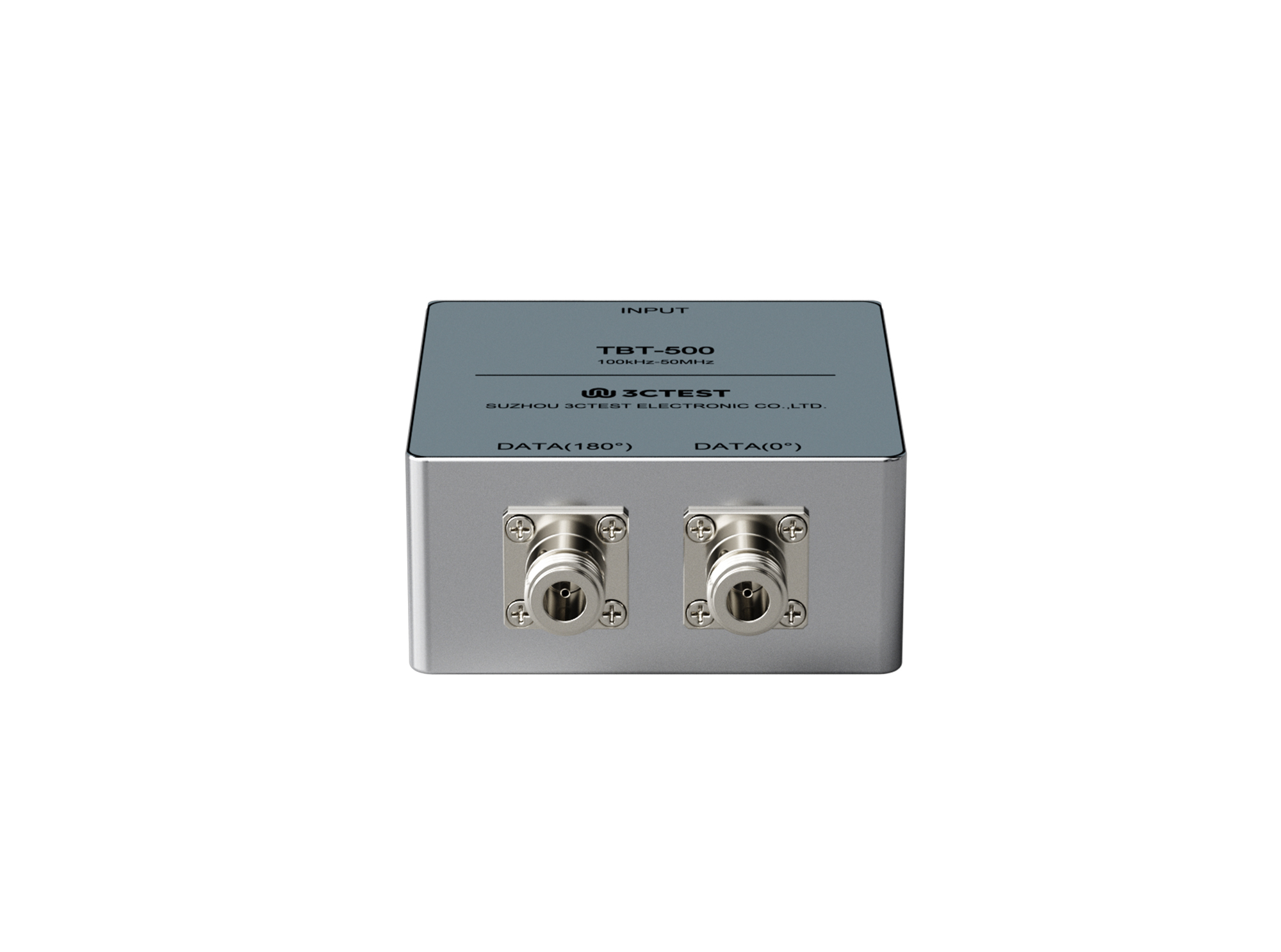

Balanced-Unbalanced Transformer

TBT-500

Request a Quote Add to Compare Add to Quote List

Introduction

The TBT-500 balanced-unbalanced transformer is specifically designed to meet the requirements of ISO 7637-4:2020 It is designed for conversion between balanced and unbalanced signals and is widely used in communication applications. The transformer features high power handling capability, low insertion loss, excellent amplitude balance, and stable frequency response.

Standards

ISO Standards

ISO 7637-4

Specification

Technical Parameters

Frequency	100 kHz ~ 50 MHz
Characteristic Impedance	50 Ω
Insertion Loss	≤1 dB * According to the law of conservation of energy, there is -3 dB background at single output terminal.
Amplitude Balance	≤1 dB
Standing-wave Ratio (SWR)	≤3
Power Consumption	100 VA
Turn Ratio	1:1

General Parameters

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Balanced-Unbalanced Transformer Next: Balanced-Unbalanced Transformer Back to list

Interface	Type N
Dimension (L x W x H)	140 mm (L)* 100 mm (W)* 48 mm (H)
Weight	1.5 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa

Balanced-Unbalanced Transformer TBT-500
