Common-mode Conducted Immunity Coupling/Decoupling Network

CDN 416T4 (300 V)

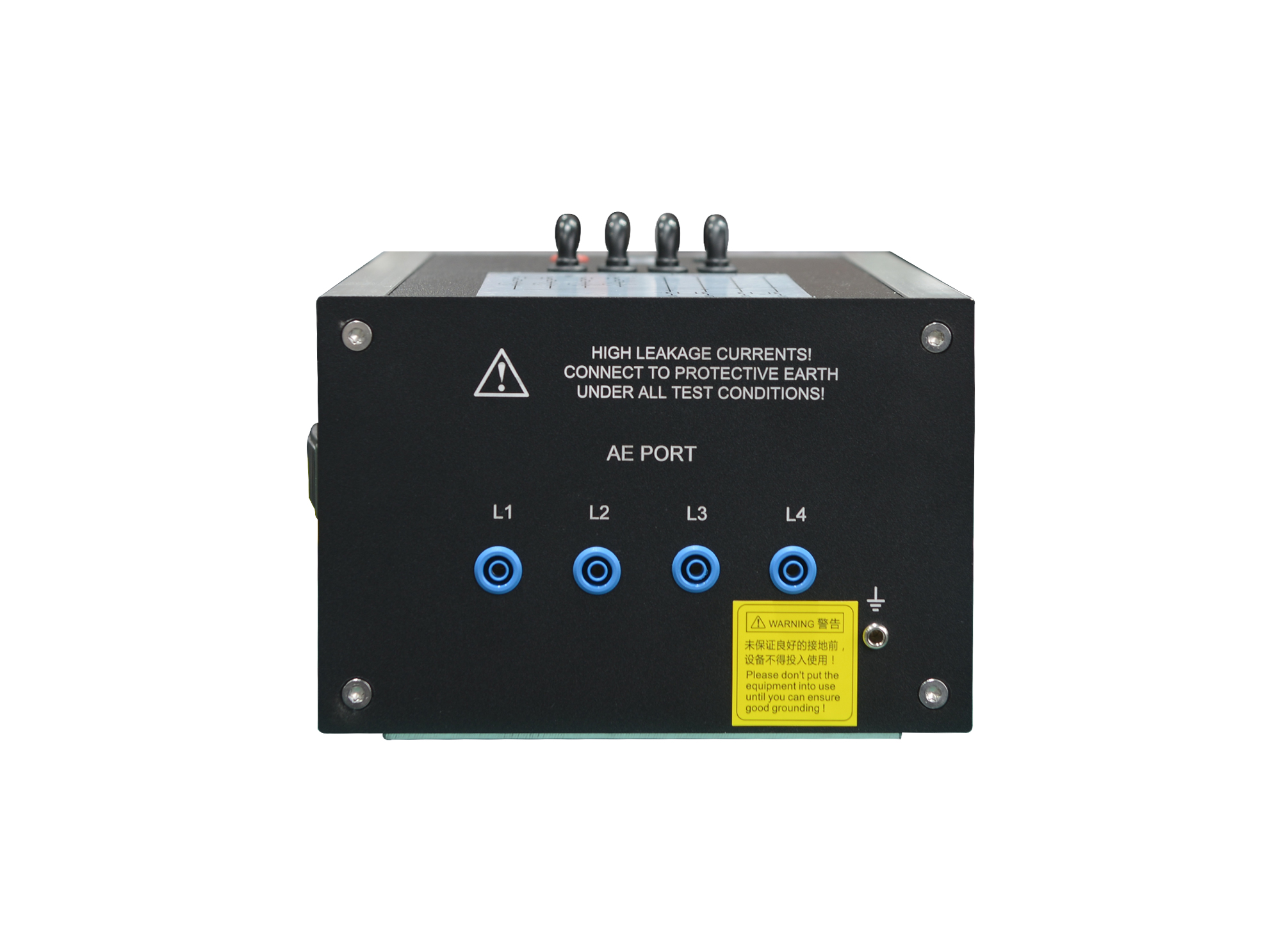

The CDN 416T4 (300 V) coupling/decoupling network complies with IEC 61000-4-16, GB/T 17626.16 and other domestic and international standards. It is applicable to common-mode conducted immunity tests on various unscreened balanced lines within the frequency range of 0 Hz to 150 kHz, and fully complies with the performance and cabling specifications for CDNs.

The CDN 416T4 supports CW signals across a wide frequency range of

DC/15 Hz ~ 150 kHz. The max. coupling voltage is 300 V (rms), which covers standard test scenarios and meets stringent test requirements. It features a maximum signal transmission rate of 100 Mbit/s and is fitted with 4 mm banana ports. It ensures stable data transmission during tests, accurately reproduces the actual communication status of devices, and guarantees accurate and repeatable test results.

> All ports adopt 4 mm banana ports

> Support 100 Mbit/s signal transmission rate

> Specifically designed for 4-wire unscreened balanced lines

> Max. current rating 1 A, suitable for most industrial and automotive electronic devices
