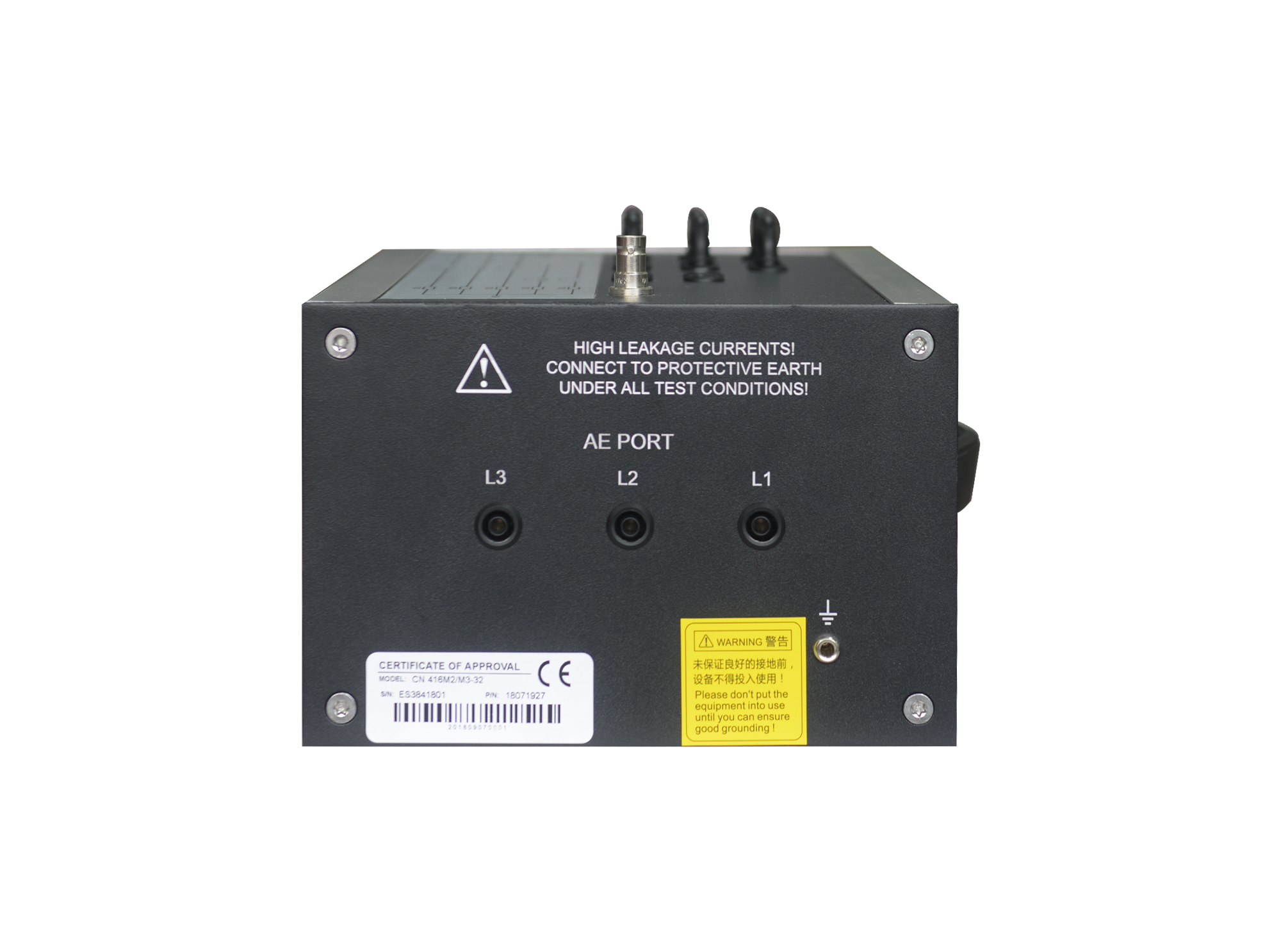

Common-mode Conducted Immunity Coupling Network

CN 416M2/M3-32

The CN 416M2/M3-32 Coupling Network complies with IEC 61000-4-16, GB/T 17626.16 and other domestic and international standards.

Introduction

The CN 416M2/M3-32 Coupling Network complies with IEC 61000-4-16, GB/T 17626.16 and other domestic and international standards.

Schematic Diagram

Schematic Diagram.png

Test Connection Diagram

Features

> Support 2-wire/3-wire simultaneous common-mode injection

> All ports adopt 4 mm banana ports

> High voltage and high current rating for industrial use

> Built-in quick shorting switch, optimized for DC coupling with easy operation

Standards

IEC Standards

GB/T Standards

EN Standards

Application Areas

Specification

Technical Parameters

Coupling Frequency	0 Hz ~ 150 kHz, CW
Coupling Voltage	300 V (rms)
Coupling Mode	2-wire/3-wire common-mode (to ground simultaneously)
Coupling Component	1 μF capacitor
Coupling Resistance	M2/200 Ω * 2; M3/300 Ω * 2
Test Voltage	Max. 250 V AC(L-N)
Test Current	Max. 32 A
AE/EUT Port	4 mm banana port
Signal Injection Port	4 mm banana port

General Parameters

Accessories

Standard Accessories

Test Cables, Plug

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

1	Common-mode Conducted Disturbance Simulator	Model: CDS 300 Frequency: 0 Hz(DC) ~ 165 kHz Max. voltage: 300 V
2	Isolation Transformer	Used for common-mode signal decoupling of 3-phase 4-wire power lines.
