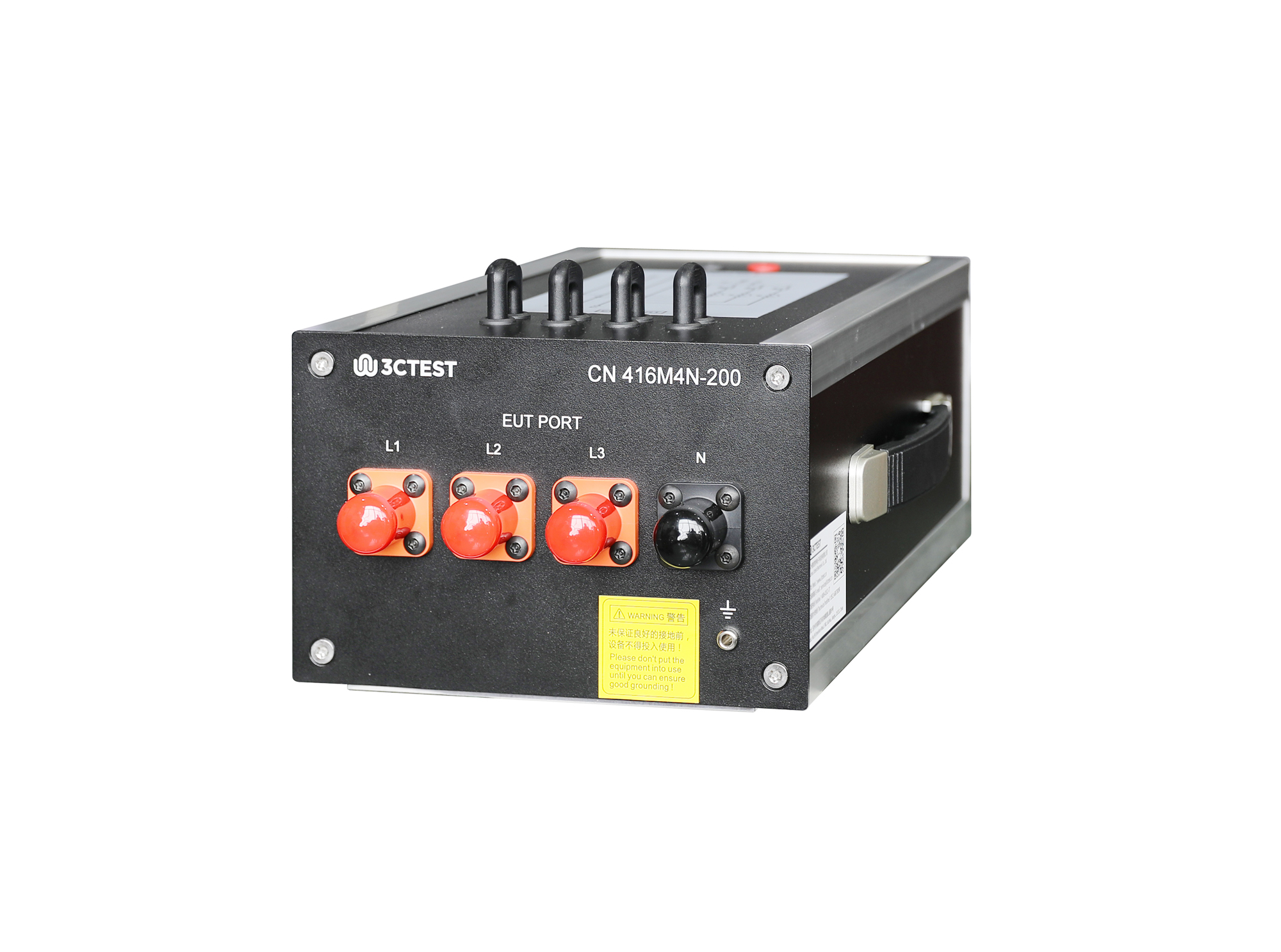

Coupling Network

CN 416M4N-200

The CN 416M4N-200 coupling network complies with IEC 61000-4-16 and is designed for common-mode conducted immunity testing on 4-wire cables.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The CN 416M4N-200 coupling network complies with IEC 61000-4-16 and is designed for common-mode conducted immunity testing on 4-wire cables. It supports a maximum coupled common-mode voltage of 300 V, featuring excellent coupling and decoupling performance for stable and reliable testing.

With a compact design and easy operation, it is suitable for compliance verification of industrial control, automotive electronics, communication equipment, and household appliances.

Features

> 4-wire simultaneous common-mode injection

> High-speed shorting switch for DC coupling

> Signal injection via banana terminals

> Max. conducted coupling voltage 300 V

Standards

IEC Standards

IEC 61000-4-16

Application Areas

Technical Parameters

Coupling Frequency	DC ~ 150 kHz, CW
Line Impedance	400 Ω*4, accuracy: ±1%
Coupled Voltage	300 V
Coupling Mode	4-wire common-mode (simultaneous line-to-ground coupling)
Coupling Components	1 μF capacitor, accuracy ±1%
Working Voltage	Max. AC 690 V, DC 1,000 V
Working Current	Max. 200 A
Signal Injection Port	4 mm banana plug
Grounding Method	Flat grounding wire

General Parameters

Accessories

Standard Accessories

Power Cord, Test Cable, Grounding Wire, Shorting Plug, User Manual

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: None Next: Common-mode Conducted Immunity Coupling Network Back to list

Enclosure Material	Aluminum alloy
Dimension	220 (W)135 (H)415 (D) mm
Weight	Approx. 7 kg
Ambient Temperature	15 ℃ ~ 35 ℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
