Coupling/Decoupling Network

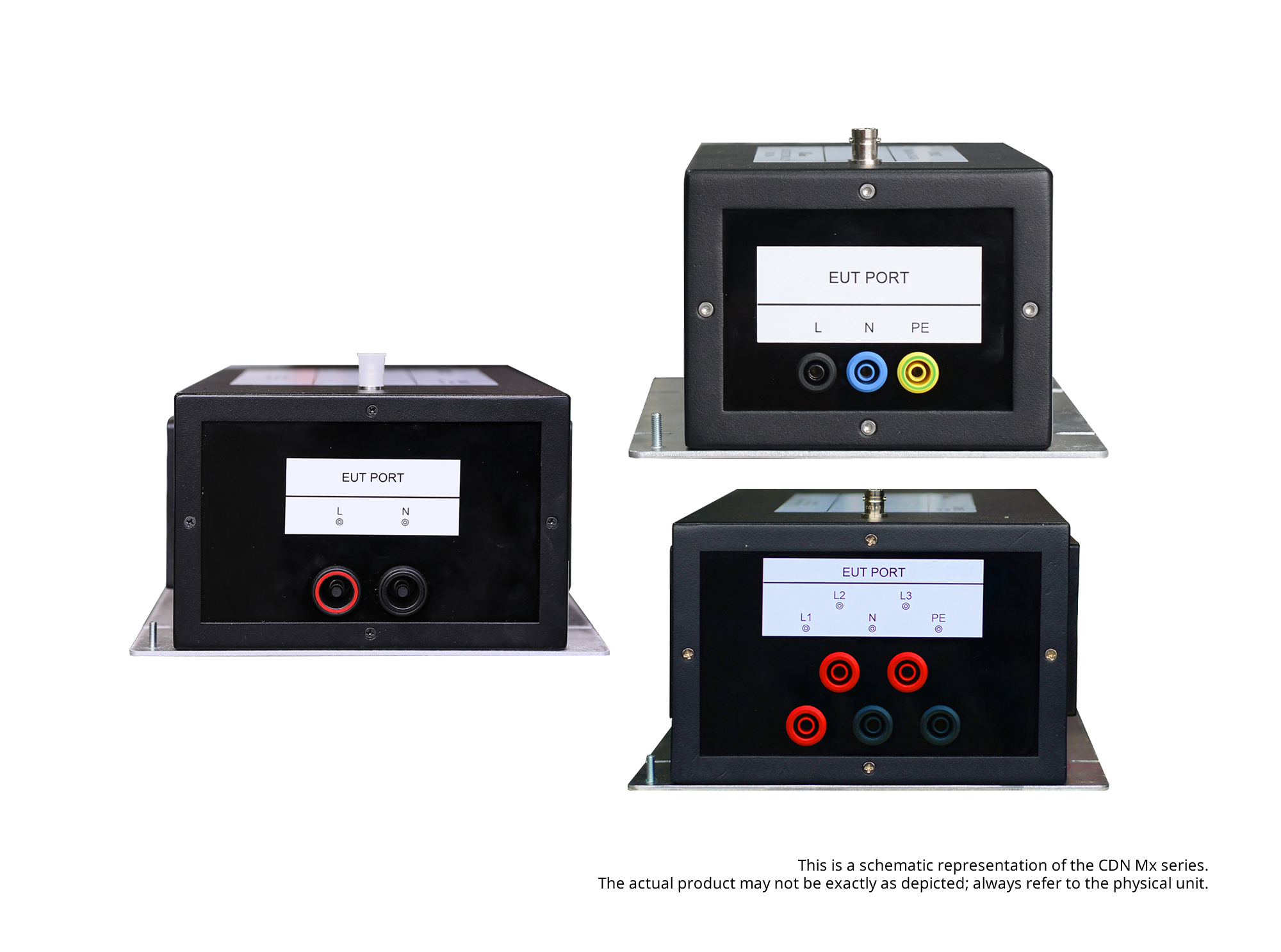

CDN Mx Series

The CDN Mx coupling/decoupling network complies with IEC/EN 61000-4-6 and is suitable for surge immunity testing of single-phase 1-wire/2-wire/3-wire and three-phase 4-wire/5-wire power lines.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The CDN Mx coupling/decoupling network complies with IEC/EN 61000-4-6 and is suitable for surge immunity testing of single-phase 1-wire/2-wire/3-wire and three-phase 4-wire/5-wire power lines. The load capacity can be customized according to customer requirements.

Features

> For unshielded power lines

> High-current coaxial terminal

Standards

IEC Standards

IEC 61000-4-6

GB/T Standards

GB/T 17626.6

EN Standards

EN 61000-4-6

Application Areas

Specification

Technical Parameters

RF Signal Input	BNC
RF Input Power	6 W
Common-mode Impedance	150 kHz ~ 24 MHz: 150 Ω ± 20 Ω 24 MHz ~ 80 MHz: 150 Ω﹢60 Ω/ -45 Ω 80 MHz ~ 230 MHz: 150 Ω ± 60 Ω
Dimension	≤32 A: 170 (W)115 (H)210 (D) mm 32 A＜I≤100 A: 220 (W)135 (H)407 (D) mm 100 A＜I≤200 A: 435 (W)215 (H)670 (D) mm
Weight	Approx. 4.5 kg

Accessories

Standard Accessories

≤32 A	Calibration Adapter, Test Cable, User Manual
32 A＜I≤100 A	Calibration Adapter, Fan Power Adapter, Test Cable, User Manual
100 A＜I≤200 A	Calibration Adapter, Power Cord, Use Manual

Optional Accessories

Selection Guide

1	CDN M1	PE，32 A , EUT/AE 4 mm2, 150 kHz ~ 230 MHz
2	CDN M2-75	L+N，75 A 1500 V AC/3000 V DC（Line-Ground）, EUT/AE 25 mm² , 150 kHz ~ 80 MHz
3	CDN M2-100	L+N，100 A 700 V AC/1500 V DC（Line-Ground）, EUT/AE 25 mm², 150 kHz ~ 80 MHz L+N，100 A 1500 V AC/3000 V DC（Line-Ground）, EUT/AE 25 mm², 150 kHz ~ 80 MHz
4	CDN M2M3	L+N/L+N+PE，32 A 250 V AC/400 V DC（Line-Ground）, EUT/AE 4 mm², 150 kHz ~ 230 MHz
5	CDN M2M3-16	L+N/L+N+PE，16 A 250 V AC/400 V DC（Line-Ground） , EUT/AE 4 mm² , 150 kHz ~ 230 MHz
6	CDN M3-32	L+N+PE，32 A 250 V AC/400 V DC（Line-Ground）, EUT/AE 4 mm² , 150 kHz ~ 230 MHz
7	CDN M3-100 CDN M3-100(AC 1500)	L+N+PE，100 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm² , 150 kHz ~ 80 MHz L+N+PE，100 A 1500 V AC/3000 V DC（Line-Ground），EUT/AE 25 mm² , 150 kHz ~ 80 MHz
8	CDN M3L	L1+L2+L3，32 A 250 V AC/400 V DC（Line-Ground）, EUT/AE 4 mm², 150 kHz ~ 230 MHz
9	CDN M3L-75	L1+L2+L3，75 A 700 V AC / 1500 V DC （Line-Ground）, EUT/AE 25 mm²，150 kHz ~ 80 MHz
10	CDN M4N-16	L1+L2+L3+N，16 A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm², 150 kHz ~ 230 MHz
11	CDN M4N-32	L1+L2+L3+N，32 A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm² , 150 kHz ~ 230 MHz
12	CDN M4N-75	L1+L2+L3+N，75 A 700 V AC / 1500 V DC（Line-Ground）, EUT/AE 25 mm²，150 kHz ~ 80 MHz
13	CDN M4N-100 CDN M4N-100(AC 1500)	L1+L2+L3+N，100 A 700 V AC/1500 V DC（Line-Ground）,EUT/AE 25 mm²，150 kHz ~ 80 MHz L1+L2+L3+N，100 A 1500 V AC/3000 V DC（Line-Ground）,EUT/AE 25 mm²，150 kHz ~ 80 MHz
14	CDN M4N-200	L1+L2+L3+N，200 A 700 V AC/1500 V DC（Line-Ground）,EUT/AE 50 mm²，150 kHz ~ 80 MHz
15	CDN M4PE-32 CDN M4PE-32(AC690V 32A)	L1+L2+L3+PE，32A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm², 150 kHz ~ 230 MHz L1+L2+L3+PE，32A 690 V AC / 1000 V DC（Line-Ground），EUT/AE 4 mm², 150 kHz ~ 230 MHz
16	CDN M4PE-75	L1+L2+L3+PE，75 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm²，150 kHz ~ 80 MHz
17	CDN M5-32 CDN M5-32(690)	L1+L2+L3+N+PE，32 A 250 V AC / 400 V DC（Line-Ground）, EUT/AE 4 mm², 150 kHz ~ 230 MHz L1+L2+L3+N+PE，32 A 690 V AC / 1000 V DC（Line-Ground）, EUT/AE 4 mm², 150 kHz ~ 230 MHz
18	CDN M5-75	L1+L2+L3+N+PE，75 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm²，150 kHz ~ 80 MHz
19	CDN M5-100 CDN M5-100(AC 1500)	L1+L2+L3+N+PE，100 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm²，150 kHz ~ 80 MHz L1+L2+L3+N+PE，100 A 1500 V AC/3000 V DC（Line-Ground），EUT/AE 25 mm²，150 kHz ~ 80 MHz
