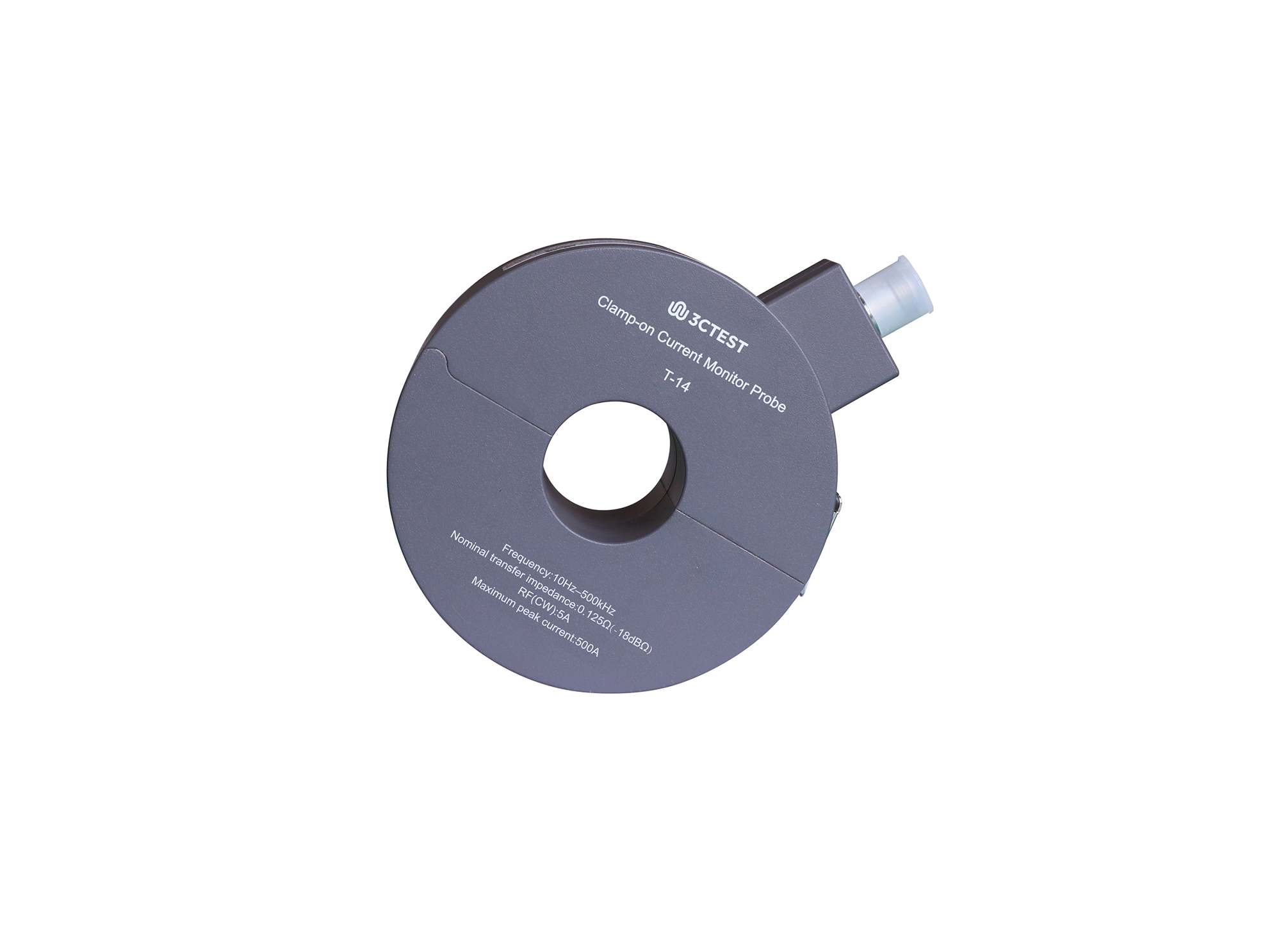

Clamp-on Current Monitor Probe

T-14

The T-14 Clamp-on Current Monitor Probe complies with  MIL-STD-461H and RTCA DO-160G. It measures AC and transient pulse currents with DC or low-frequency bias, transferring the signals to measurement devices via electromagnetic coupling.

Featuring undistorted waveforms and galvanic isolation from current carrying conductors, it meets the measurement requirements of AC signals up to 500 kHz and transient pulse signals with rise times greater than 70 μs. Its excellent DC bias capability also makes it suitable for conducted immunity testing.

S21 Curve

Note: Transfer impedance (dBΩ)= S21+34 dBΩ @50 Ω load

> Low noise floor for conducted emissions and conducted immunity current measurements

> Excellent DC bias capability, ensuring stable operation under high EUT current

> Undistorted waveform, galvanic isolation from the conductor under test
