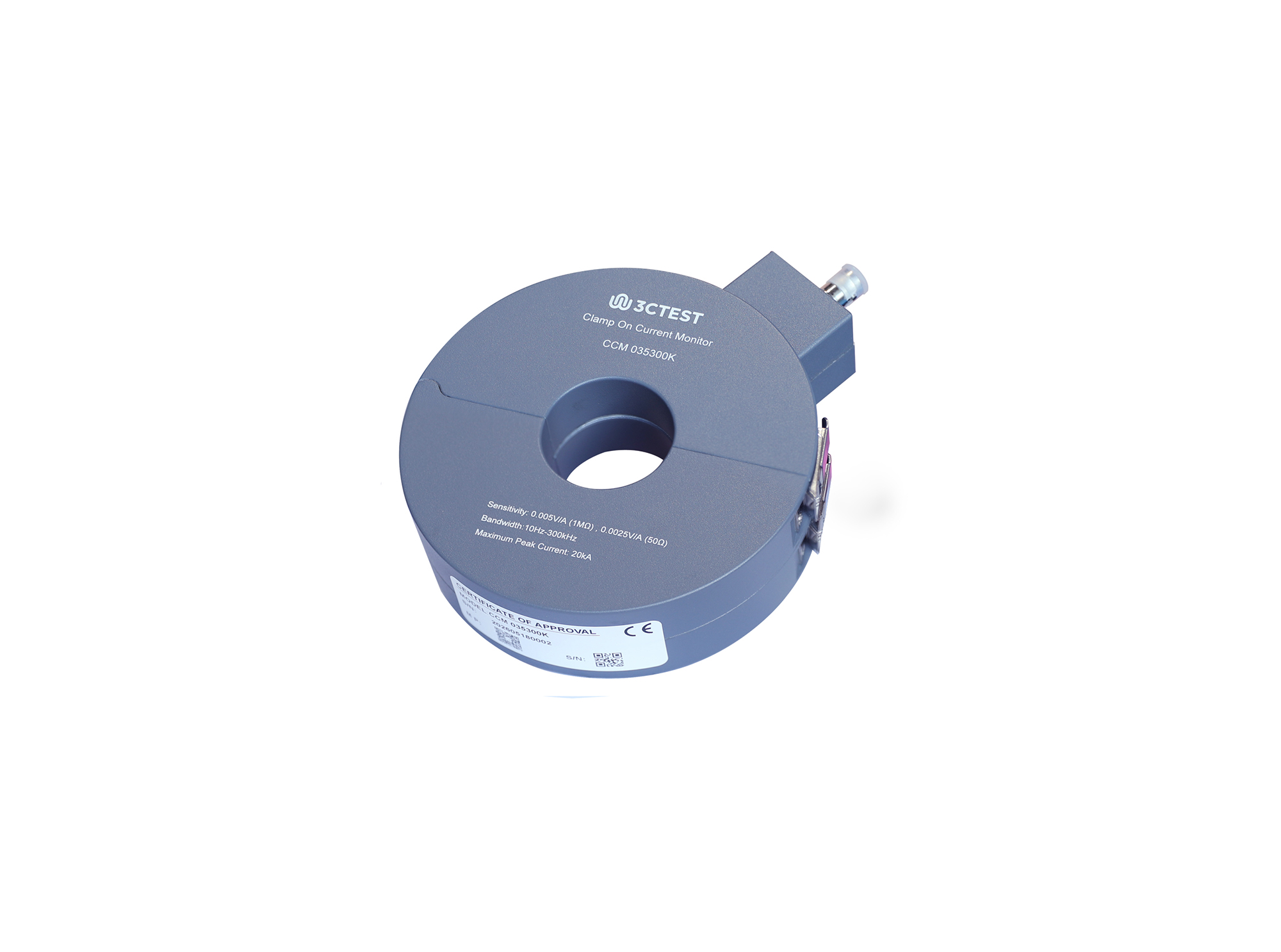

Card Type Broadband Current Clamp

CCM 035300K

CCM 035300K is a card type broadband current clamp designed for measuring AC currents from 10 Hz to 300 kHz as well as time-domain pulse currents. It transfers AC or pulse current signals to recording equipment as voltage signals through electromagnetic coupling, while providing excellent waveform fidelity and galvanic isolation from the current-carrying conductor.

The CCM 035300K meets the measurement requirements specified by various standards for AC signals up to 300 kHz and transient pulse signals with rise times greater than 1.2 μs. It is widely used in EMC conducted susceptibility (immunity) testing.

s21 Curve

CCM 035300K Card Type Broadband Current Clamp s21 curve

Explanation: When the load impedance is 50 Ω: Transfer impedance (dB)=s21+34dBΩ;

                      When the load impedance is 1 MΩ: Transfer impedance (dB)=s21+34dBΩ+6dB;

> Undistorted waveform, physical isolation from current carrying conductors

> Supports the requirements for AC signal current measurement from 10 Hz to 300 kHz

> Supports the requirements for time-domain pulse current measurement with a rise time above 1.2 μs
