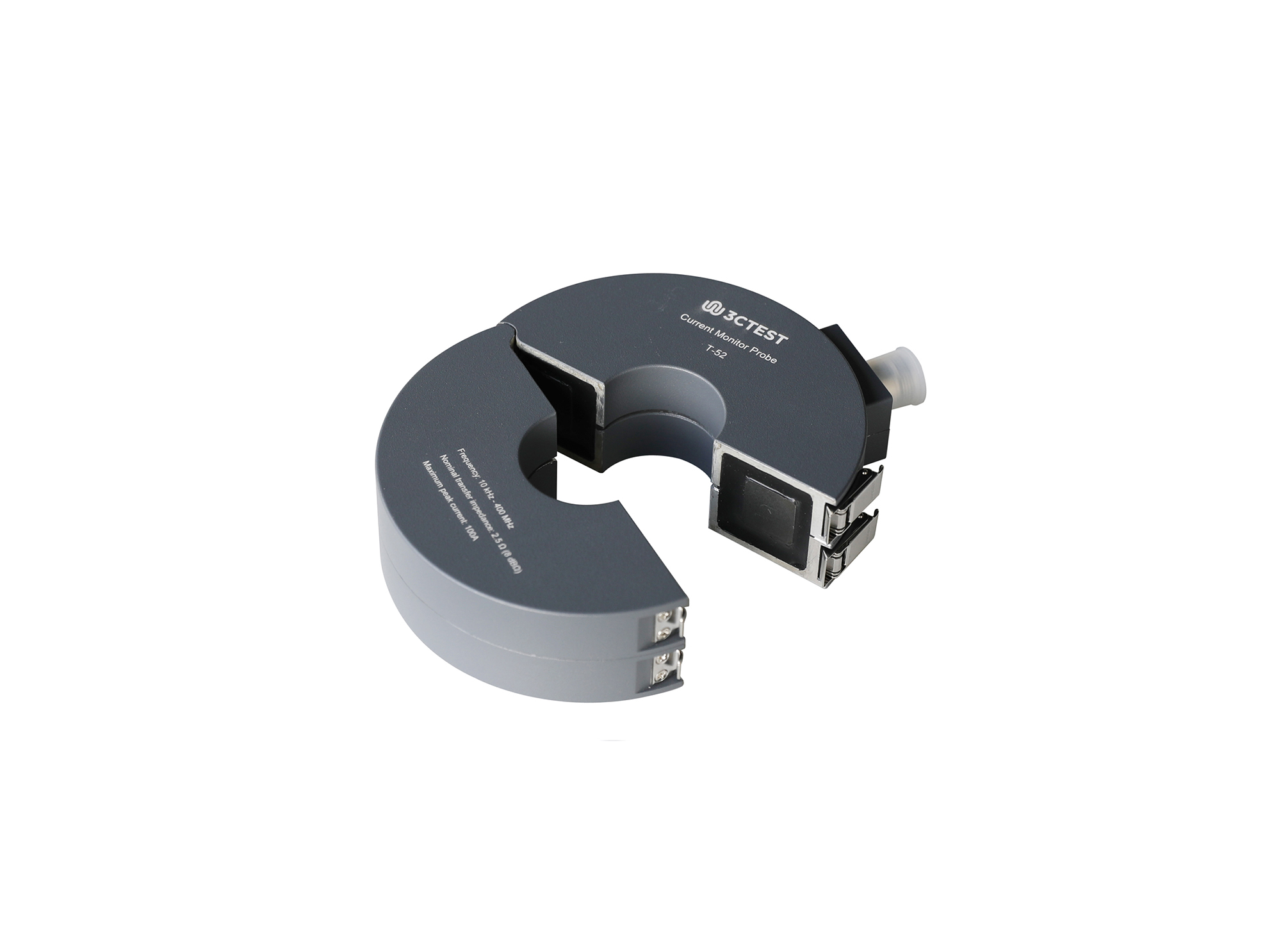

Current Monitor Clamp

T-52

The T-52 Current Monitor Clamp complies with MIL-STD-461H, RTCA DO-160G and GJB151C-2024, and is designed for measuring high-frequency AC current and time-domain pulse current under low-frequency and DC bias. It transfers  AC or pulse signal currents to recording equipment as voltage signals via electromagnetic coupling.

Featuring undistorted waveform and galvanic isolation from the conductor under test, it meets measurement requirements for AC injection signals up to 400 MHz and transient pulse signals with rise time exceeding 1 ns. It is widely used in conducted electromagnetic compatibility (EMC) susceptibility (immunity) testing.

Note: Transfer impedance (dBΩ)= S21+34 dBΩ @50 Ω load

> Supports high-frequency AC current measurement under low-frequency and DC bias

> Flat frequency response and low transfer impedance variation ensure a high SNR for low-frequency measurements

> Undistorted waveform, galvanic isolation from the conductor under test
