Wideband Current Monitor Clamp

TWCM 00400M

The TWCM 00400M Wideband Current Monitor Clamp complies with ‌ MIL-STD-461H, RTCA DO-160G and GJB151C-2024, and is designed to measure AC currents from 10 kHz to 400 MHz and time-domain pulse currents. It transfers  AC or pulse signal currents to recording equipment as voltage signals via electromagnetic coupling.

Featuring undistorted waveforms and galvanic isolation from the conductor under test, it meets the measurement requirements of AC signals up to 400 MHz and transient pulse signals with rise times greater than 0.9 ns. It is widely used in conducted electromagnetic compatibility (EMC) susceptibility (immunity) testing.

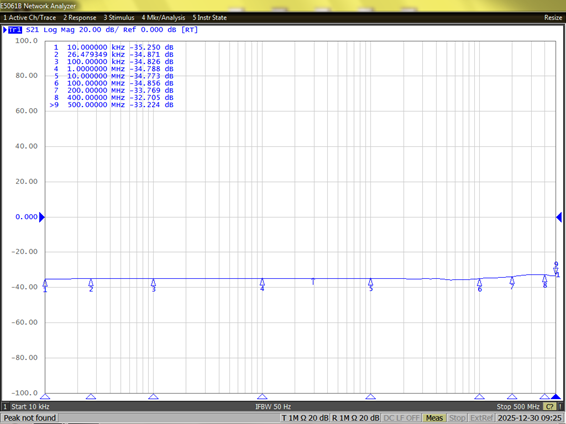

S21 Curve

Note: Transfer impedance (dB)=S21+34 dB @50 Ω;

Transfer impedance (dB)=S21+34 dB+6 dB @1 MΩ

> Undistorted waveform, galvanic isolation from the conductor under test

> Supports the requirements for AC signal current measurement from 10 kHz to 400 MHz

> Supports time-domain pulse current measurements with rise times above 0.9 ns
