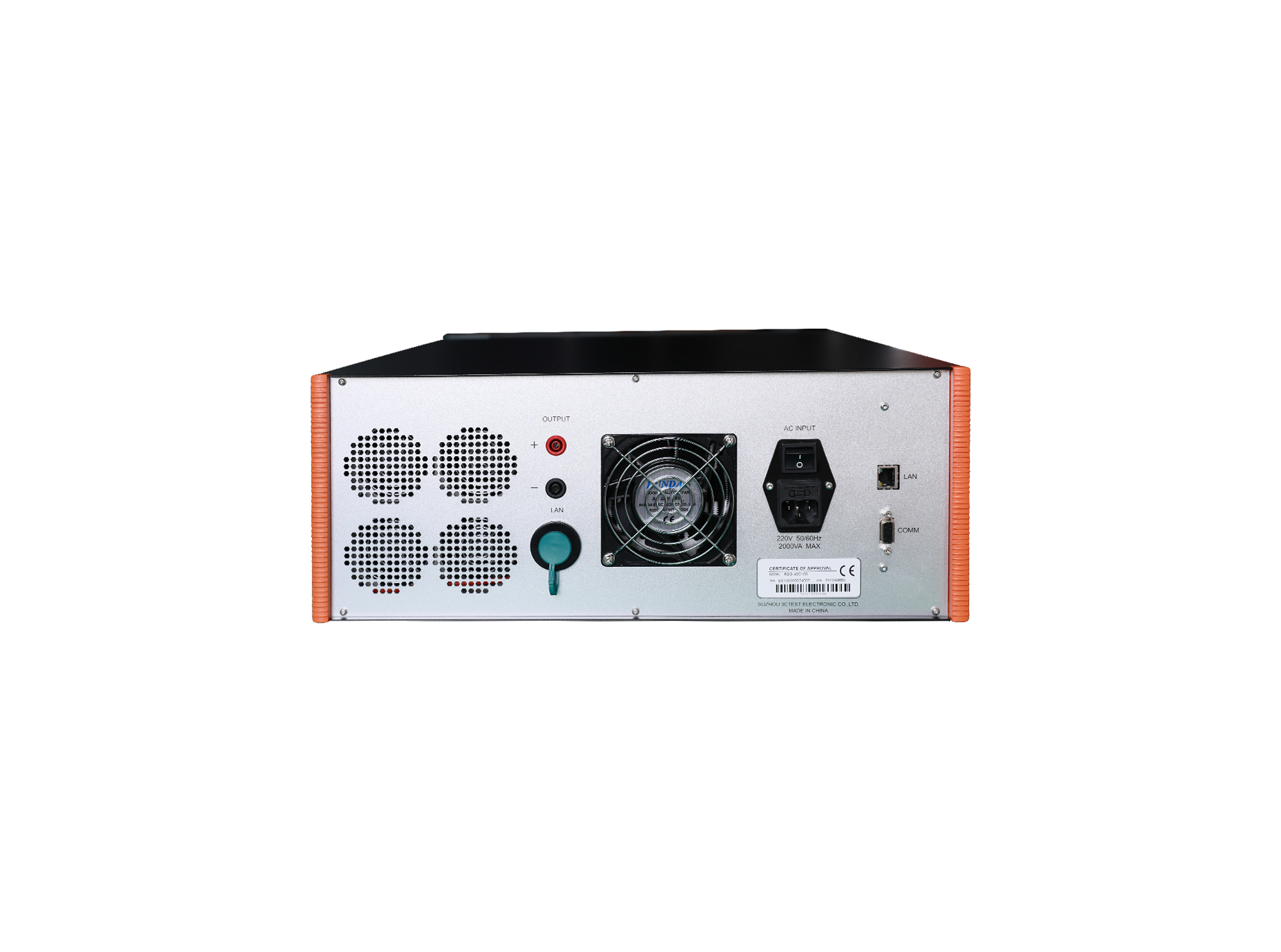

Differential Mode Conducted Interference Simulator

RSG 40C20(DMS)

RSG 40C20 (DMS) is a simulator for differential mode conducted interference immunity testing that complies with the requirements of IEC 61000-4-19/GB/T 17626.19 and JJF 1245.4-2019 standards.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

RSG 40C20 (DMS) is a simulator for differential mode conducted interference immunity testing that complies with the requirements of IEC 61000-4-19/GB/T 17626.19 and JJF 1245.4-2019 standards. Supported by our company's Corelab software and various coupling decoupling networks, coupled transformers and other facilities can conduct the following tests: 2 kHz~150 kHz differential mode voltage and current (unmodulated waveform, continuous wave pulse with intermittent period, and pulse waveform modulated with rectangular pulse) tests that meet IEC 61000-4-19, and current tests that meet JJF 1245.4-2019.

Features

> 5.7-inch screen front panel operation

> The integrated design makes the system more simple, safe and durable

> Ethernet, RJ45 interface for PC remote control and test report print

> Compliant with IEC 61000-4-19/GB/T 17626.19 and JJF 1245.4-2019 standards

> The key components are all made of high-quality materials, with reliable quality, exquisite appearance and comfortable operation

Standards

IEC Standards

IEC 61000-4-19

GB/T Standards

GB/T 17626.19

Other Standards

JJF 1245.4

Application Areas

Automotive Electronics

Specification

Technical Parameters

Frequency	2 kHz ~ 150 kHz
Modulation frequency	0 ~ 1,000 Hz
Frequency Step	Linear, logarithmic, static
Technical parameters for differential voltage immunity testing
Waveform	Sine, total harmonic distortion<5%
Output Voltage	0.1 V ~ 40 V 0.1 V ~ 30 V(RMS)
Load Impedance	10 Ω±30%
Technical parameters for differential current immunity testing
Max. Current	5 A
Load Impedance	1 Ω ±0.3 Ω
BNC Output	10: 1(0.1 V / A)

General Parameters

产品配件

随机标配

测试线、电源线、保险丝、出厂报告、说明书。

选配附件

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Differential-mode Conducted Immunity Coupling/Decoupling Network Next: Differential-mode Conducted Immunity Coupling/Decoupling Network Back to list

Dimension	620(L)450(W)190(H) mm
Weight	Approx. 25 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa

1	Coupling/Decoupling Network	Model: CDN 419M3-32 EUT voltage range: single-phase three-wire, 32 A, 250 V AC/DC Frequency: 2 kHz~150 kHz
2	Coupling/Decoupling Network	Model: CDN 419M4N-32 EUT voltage range: three-phase four-wire, 32 A, line to ground 250 V AC/DC Frequency: 2 kHz~150 kHz
3	Pulse Transformer	Model: TPT-600-2 Coupling pulse voltage: Max. 600 V Secondary side flow capacity: Max. 30 A Used for IEC 61000-4-19
4	PC Control Software	Model: Corelab Compatible with Windows 7 and above. It features user-friendly operation with an elegant and intuitive interface. Equipped with comprehensive operation functions and standard test libraries.
5	Differential Current Testing Module	Model: WCT 20 Frequency: 2 kHz~150 kHz Max. current: 5 A Max. voltage: ＜ 22 V Impedance: 1 Ω± 0.3 Ω
6	Differential Voltage Testing Module	Model: R419-10 Differential voltage test matching module Resistance value: 10 Ω
7	Differential Current Testing Module	Model: RJJF-100 Resistance value:100 Ω
