Data and Control Line Coupling Decoupling Network

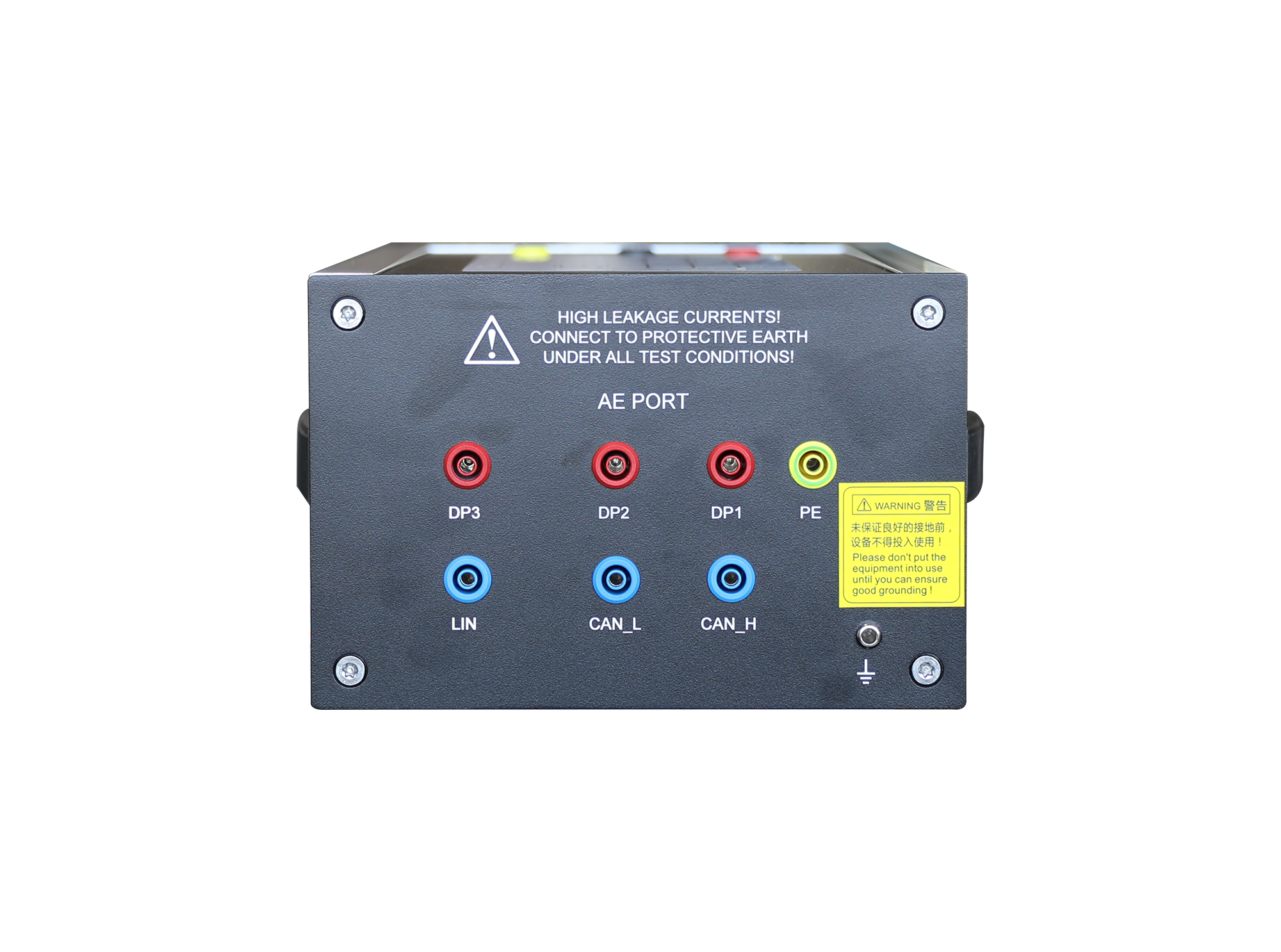

CDN 418CAN

The CDN 418CAN coupling/decoupling network is a professional device designed for immunity tests of damped oscillatory waves and ring waves on CAN/LIN lines. complies with IEC 61000-4-12, IEC 61000-4-18, GB/T 17626.12 and GB/T 17626.18.

The CDN 418CAN supports data transmission rates of 10 Mbit/s for CAN lines and 100 Kbit/s for LIN lines. At a test voltage of 3 kV, the max. residual voltage at the AE port is only 25 V, and no additional decoupling components are required.Greatly improve test efficiency.

Fully satisfies compliance tests across automotive, industrial and communication sectors, ensuring standard-compliant and credible test results.

> Compatible with all brands of EMC generators without additional adaptation

> Excellent decoupling performance, no extra protection required for auxiliary equipment

> Compatible with multiple scenarios and has two coupling modes including CAN H+CAN L to ground, and LIN to ground.

> Data rate is CAN 10 Mbit/s, LIN 100 Kbit/s

> The coupling and decoupling modules are externally mounted and replaceable
