Stripline

D1550

The stripline is used for vehicle electronic component immunity testing according to ISO 11452-5.

Request a Quote Add to Compare Add to Quote List

Introduction

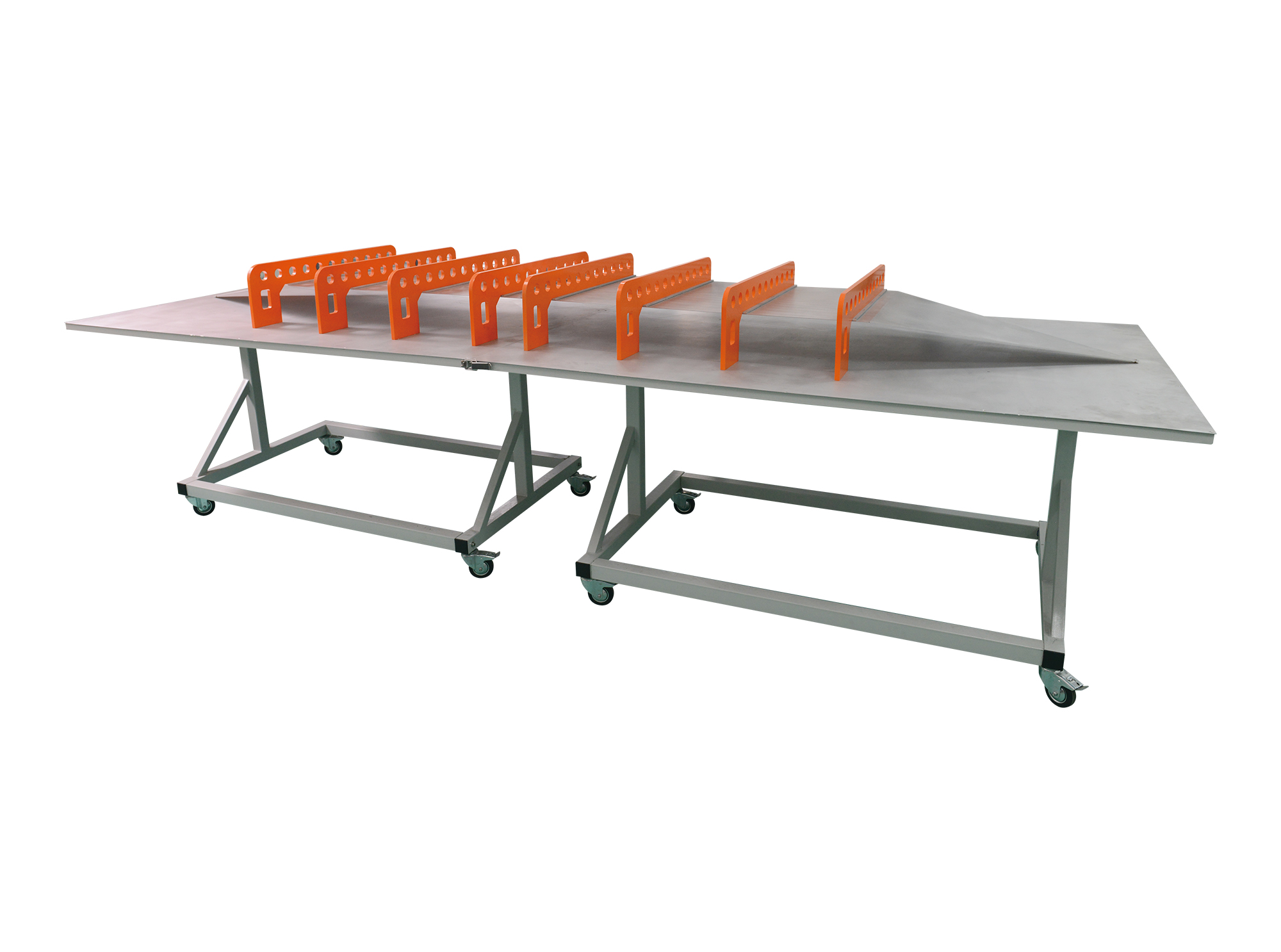

The stripline is used for vehicle electronic component immunity testing according to ISO 11452-5. It is fixed on a mpvable for easy mobility. The table can be vertically tilted to reduce the overall width, and the stripline can also be separated into two sections for convenient storage and transportation. It features excellent return loss performance and supports testing up to 1 GHz.

Standards

ISO Standards

ISO 11452-5

Application Areas

Automotive Electronics

Specification

Technical Parameters

Frequency	0 ~ 1 GHz
Max. Input Power	1 kW cont.
Wave Impedance	377 Ω
Impedance	50 Ω
Typical VSWR	＞1.22
Return Loss	＞20 dB
Connector Type	N (50 Ω)
Stripline Height	150 mm above the ground plane
Table Height	1,000 mm
Stripline Dimension	740 (W)150 (H)4,110(L)mm
Overall Dimension	1,500 (W)1,260(H)4,300(L)mm
