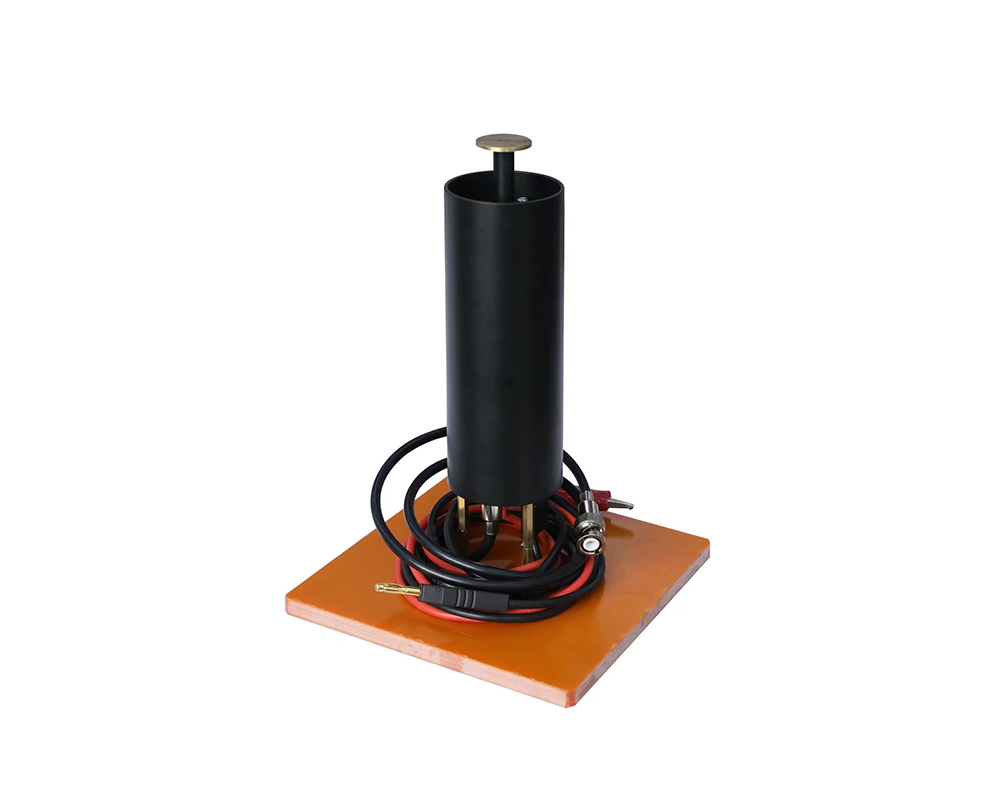

High voltage Divider

EDS-HVM30

The ESD-HVM30 high-voltage divider complies with the requirements of IEC/EN 61000-4-2.

The ESD-HVM30 high-voltage divider is designed in accordance with IEC/EN 61000-4-2 Ed.2, used to verify whether the output voltage of an ESD simulator meets standard requirements under air discharge mode.

> Complies with IEC 61000-4-2

> 20 GΩ // 3 pF impedance

> Max test voltage is 30 kV
