Electrostatic Discharge Device

ESDD

The test table is specially designed for ESD tests. Adopting an all‑solid‑wood structure, it complies with IEC 61000‑4‑2 and GB/T 17626.2 standards.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The test table is specially designed for ESD tests. Adopting an all‑solid‑wood structure, it complies with IEC 61000‑4‑2 and GB/T 17626.2 standards. It can also be used for EFT/Burst, damped oscillatory wave and automotive electronics immunity tests.

Standards

IEC Standards

IEC 61000-4-2

GB/T Standards

GB/T 17626.2

EN Standards

EN 61000-4-2

Application Areas

Specification

Technical Parameters

Table-Top Equipment
Test Table	1,600800800 mm
Ground Reference Plane	2,7001,8002 mm
Vertical Coupling Plane	5005003 mm
Horizontal Coupling Plane	1,6008002 mm
Insulating Support	1,6008000.5 mm
Ground Resistance	470 kΩ*2

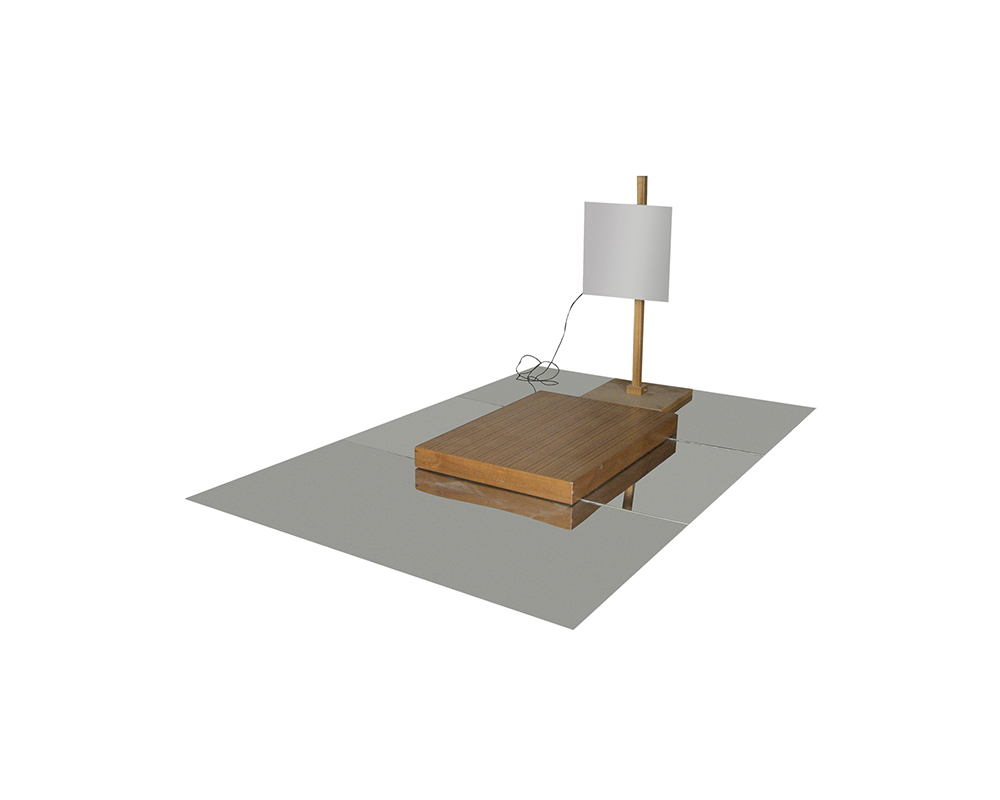

Floor-Standing Equipment
Insulating Support	1,100800100 mm
Ground Reference Plane	2,7001,8002 mm
Vertical Coupling Plane	5005003 mm
Ground Resistance	470 kΩ*2
