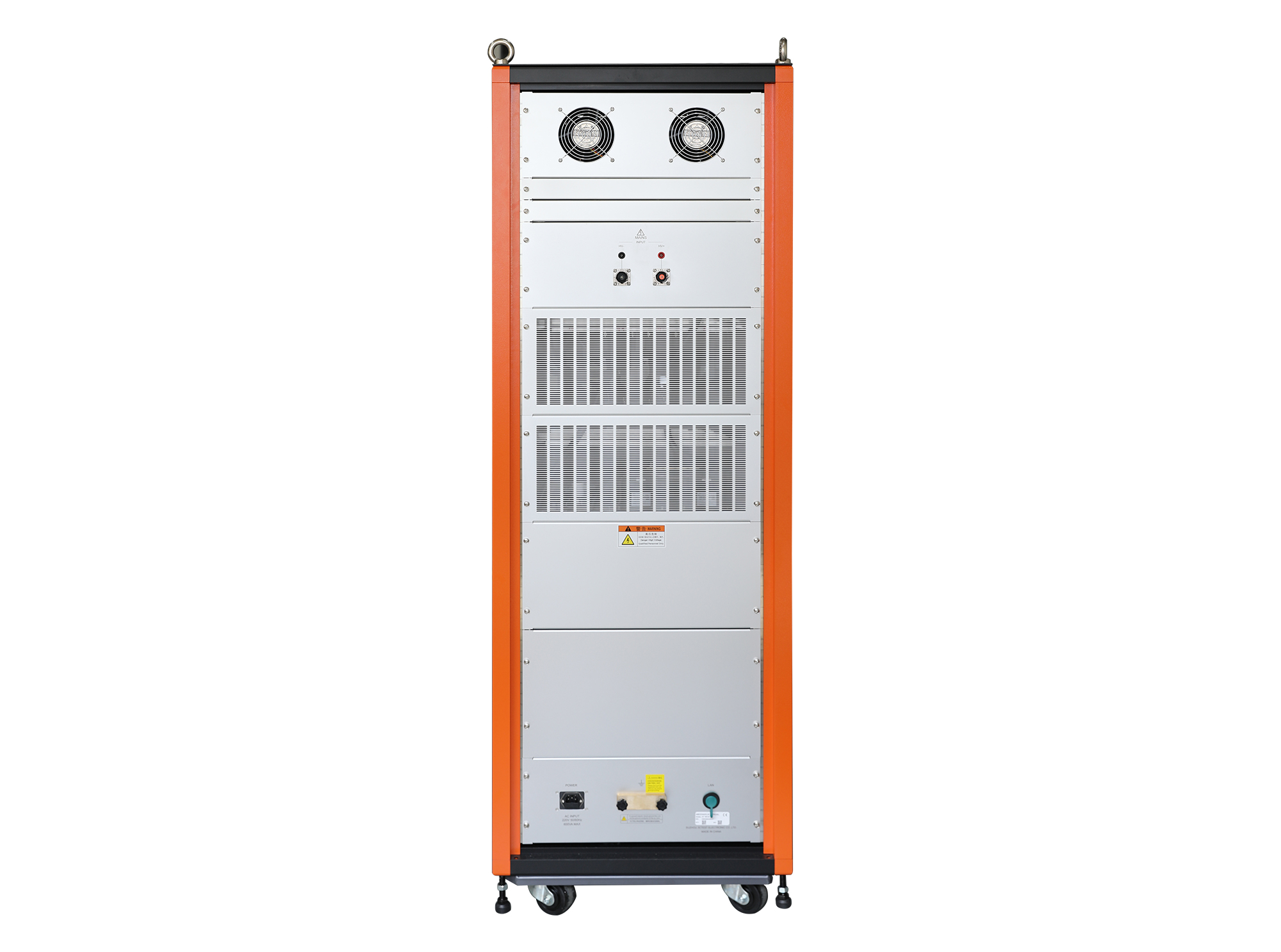

High-Voltage Artificial Network

ANQJ 150C20

The ANQJ 150C20 is designed in accordance with ISO 21498-2:2021, ISO 21498-2:2024, MBN 11123, VW 80300, and Q-JLY J7111974A. It integrates selectable resistance values of 2 * 10 mΩ, 2 * 25 mΩ, 2 * 50 mΩ, 2 * 100 mΩ, 2 * 200 mΩ,

50 mΩ, 100 mΩ, and 200 mΩ, as well as a 10 mF capacitor. The equipment supports testing at up to 1,500 VDC and 200 A DC.

Standard Schematic Diagram

 Compliant with ISO 21498-2:2021, ISO 21498-2:2024, MBN_11123, and Q-JLY J7111974A standards

  Compliant with VW 80300 standards

> Color touch screen, supporting quick switching between impedance and capacitance

> Built-in 10 mF decoupling capacitor and discharge resistor, with real-time capacitor voltage monitoring

> Maximum input voltage: 1,500 VDC; maximum test current: 200 A

> Output resistance: 2 * 10 mΩ, 2 * 25 mΩ, 2 * 50 mΩ, 2 * 100 mΩ, 2 * 200 mΩ, 50 mΩ, 100 mΩ, and 200 mΩ

> Current monitoring and display with overcurrent alarm

> Water-cooled thermal management system for enhanced cooling performance

> Built-in temperature, water flow, water temperature, and water pressure protection

> Supports remote control
