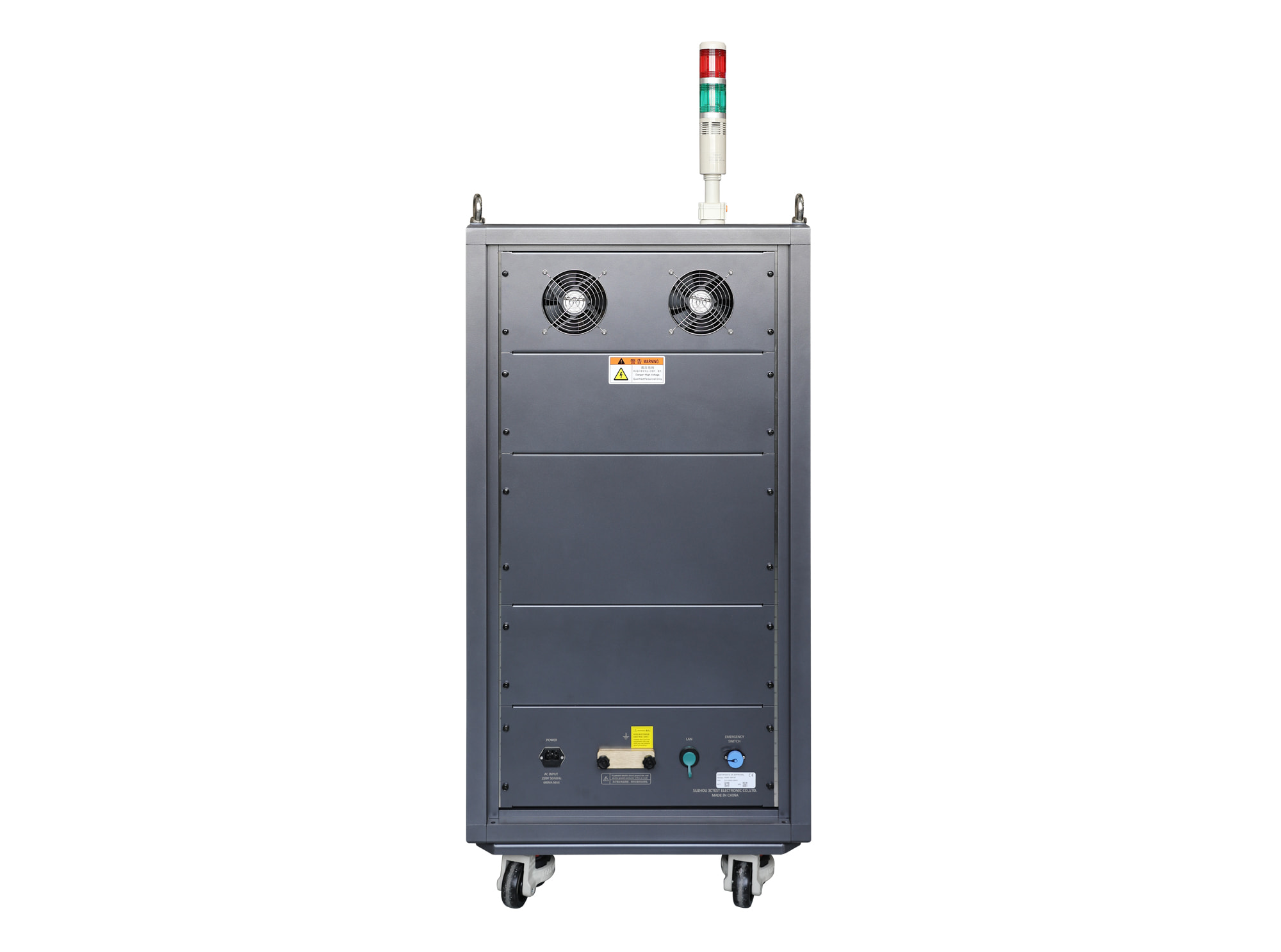

HV DC Short-Circuit Simulator

HDSS 150C50

The HDSS 150C50 HV DC Short-Circuit Simulator in compliance with ISO 21498-2:2024 Clause 6.12 short-circuit test, simulates external low-impedance short-circuit conditions...

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The HDSS 150C50 HV DC Short-Circuit Simulator in compliance with ISO 21498-2:2024 Clause 6.12 short-circuit test, simulates external low-impedance short-circuit conditions between the positive and negative terminals of Class B HV circuits, verifying the short-circuit withstand capability of HV connectors, cables, relays, fuses, and other components.

The controllable short-circuit switch provides open-circuit impedance ≥10 MΩ for electrical isolation and short-circuit impedance ≤5 mΩ for realistic low-impedance fault simulation. The test circuit supports DC 1 V to 1,500 V, 500 A continuous current, and 35 kA peak short-circuit current withstand capability. Built-in safety protection and remote control functions support certification and R&D testing.

Test Setup

① PC software AutoLab

② Electric Vehicle HV Electrical Performance Comprehensive Tester EVTS Series

③ HV Artificial Network AN Series/ HV Test Device HTS Series

④ HV DC Short-Circuit Simulator HDSS Series

⑤ Wide-range Adjustable Pre-charging Test Device RC Series

⑥ Ripple Signal Generator RSG Series

⑦ Coupling Transformer TPT Series

⑧ Automotive Load Dump Simulator EVDG 20/ Electro-mobile Vehicles Pulse Disturbance Generator EVPG 20/ Electro-mobile Vehicles Pulse Disturbance Simulator EVPS Series

Equipment Connection

① PC software AutoLab

② Electric Vehicle HV Electrical Performance Comprehensive Tester EVTS 150C36

③ Electro-mobile Vehicles Pulse Disturbance Generator EVPG 20

* Peak short-circuit current may damage high-precision power supplies. A dedicated test power supply is recommended.

Features

> 7-inch color touchscreen front-panel operation

> Complies with ISO 21498-2:2024 Clause 6.12 short-circuit test requirements

> The test circuit supports DC 1 V ~ 1,500 V, 500 A continuous current, and 35 kA peak short-circuit current withstand capability

> Built-in overvoltage and overcurrent protection; supported external emergency stop pedal

> Real-time LCD display of EUT voltage and current

> Open-circuit impedance ≥10 MΩ; short-circuit impedance ≤5 mΩ

> Ethernet interface for PC remote control and test report printing

Standards

ISO Standards

ISO 21498-2

Application Areas

Automotive Electronics

Specification

Technical Parameters

Standard	ISO 21498-2:2024
Test Voltage	Max. 1,500 V ±10%
Test Current	Max. 500 A ±10%
Short-Circuit Continuous Current	500 A
Peak Short-Circuit Current Withstand Capability	35 kA
Open-Circuit Impedance	≥10 MΩ
Short-Circuit Impedance	≤5 mΩ
Switch Open Holding Time (t_h1)	5 s ~ 100 s
Switch Closed Holding Time (t_h2)	5 s ~ 600 s
Counter	1 ~ 100
Trigger Mode	Auto, manual, external

General Parameters

Accessories

Standard Accessories

Power Cord, Test Cable, Coaxial Cable, Fuse, Flat Grounding Wire, Emergency Stop Pedal, User Manual

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Electric Vehicle HV Electrical Performance Comprehensive Tester Next: Electric Vehicle Pulse Disturbance Generator Back to list

Display Screen	7-inch TFT touchscreen
Working Power	AC 220 V ± 10%, 50/60 Hz
Fuse	6 A
Max. Power Consumption	300 W
Communication Mode	Ethernet
Working Status Indication	Front panel LED indication and LCD display
Fault Detection	Front panel LCD display and stop operation when failure occurs
Dimension	22U rack, 600 (W) 1,600 (H) 900 (H) (Incl. alarm indicator)
Weight	Approx. 150kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa

1	Immunity Test Software	Model: AutoLab > Compatible with Windows 7/8/10/11 > User-friendly operation with an intuitive UI > Supports customized test procedures with built-in standard test libraries > Comply with ISO 21498-2, VW 80300
2	HV Artificial Network	Model: AN Series Standard: ISO 21498, VW 80300 Input voltage: 0 ~ 1,500 V DC DC current capacity: Max. 800 A (higher ratings can be customized)
2	HV Test Device	Model: HTS Series Standard: VW 80300 Input voltage: 0 ~ 1,500 V DC DC current capacity: 0 mΩ/50 mΩ 300 A/100 mΩ 200 A/200 mΩ 100 A
3	Electric Vehicle HV Electrical Performance Comprehensive Tester	Model: EVTS Series Standard: ISO 21498, VW 80300 Input voltage: 0 ~ 1,500 V DC DC current capacity: Max. 600 A (higher ratings can be customized)
4	Wide-range Adjustable Pre-charging Test Device	Model: RC Series Standard: VW 80300 EHV-04 Input voltage: 0 ~ 1,500 V DC Capacitor: 10 μF ~ 1,200 μF DC current capacity: Max. 300 A (higher ratings can be customized)
5	Ripple Signal Generator	Model: RSG Series Standard: ISO 21498, VW 80300 Max. open-circuit output voltage: 160 V_pp Max. output current: 200 A_pp Frequency: 10 Hz ~ 300 kHz
6	Coupling Transformer	Model: TPT Series Standard: ISO 21498, VW 80300 Max. coupling voltage: 160 V_pp Max. coupling current: 400 A_pp DC current capacity: Max. 1,000 A (higher ratings can be customized)
7	Automotive Load Dump Simulator	Model: EVDG 20 Standard: VW 80300 EHV-10 Pulse voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 100 A (higher ratings can be customized)
	Electro-mobile Vehicles Pulse Disturbance Generator	Model: EVPG 20 Standard: VW 80300 EHV-16 Pulse voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 100 A (higher ratings can be customized)
	Electric Vehicle Pulse Disturbance Generator	Model: EVPS Series Standard: VW 80300 EHV-10 & EHV-16 Pulse voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 300 A (higher ratings can be customized)
