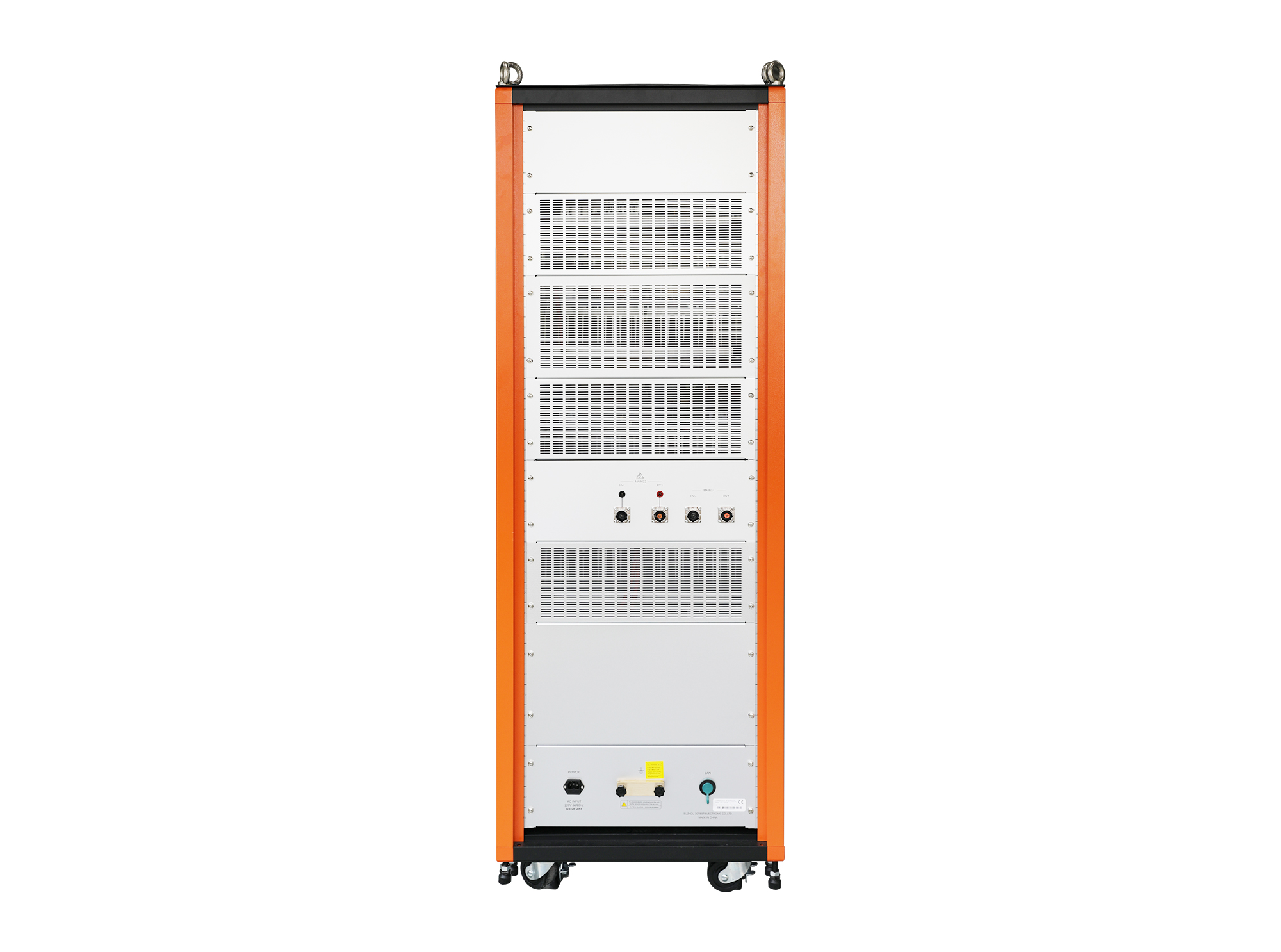

HV Test Device

HTS 150C30

HTS 150C30 is designed according to VW 80300:2021, with integrated impedances of 0 mΩ, 50 mΩ, 100 mΩ, 200 mΩ and 10 mF capacitors. This device can be used for testing with a max. DC current of 1,500 V and 300 A.

> Color touch screen operation, no manual switching required during testing, safe and convenient

> Built in 10 mF decoupling capacitor and discharge resistor, and real-time monitoring of capacitor voltage

> Air cooling, built-in temperature protection, no additional cooling equipment required

> Internal resistance complies with VW 80300 tolerance of ±2%

> Optional (Autolab) remote control for automatic system testing and emission testing

> Output resistances: 0 mΩ, 50 mΩ, 100 mΩ, 200 mΩ

> Equipped with high-voltage shielded terminals for higher safety and easier operation
