High Voltage Shielded Enclosure

HVSE 200

The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4. Through plugging in corresponsive port, HVSE 200 can save users from complicated wiring.

With features of easy operation and good shielded effect.

Features

> High-performance shielding effectiveness

> High-voltage shielded power terminals is 1,500 V DC / 300 A

> High/Low-voltage differential misconnection prevention design

> Online DUT differential-mode and common-mode test conversion

> Built-in 100 nF isolation capacitor

Standards

ISO Standards

ISO 7637-4

Application Areas

Automotive Electronics

Specification

Technical Parameters

Port on Front Panel	Waveform B common/differential mode testing port

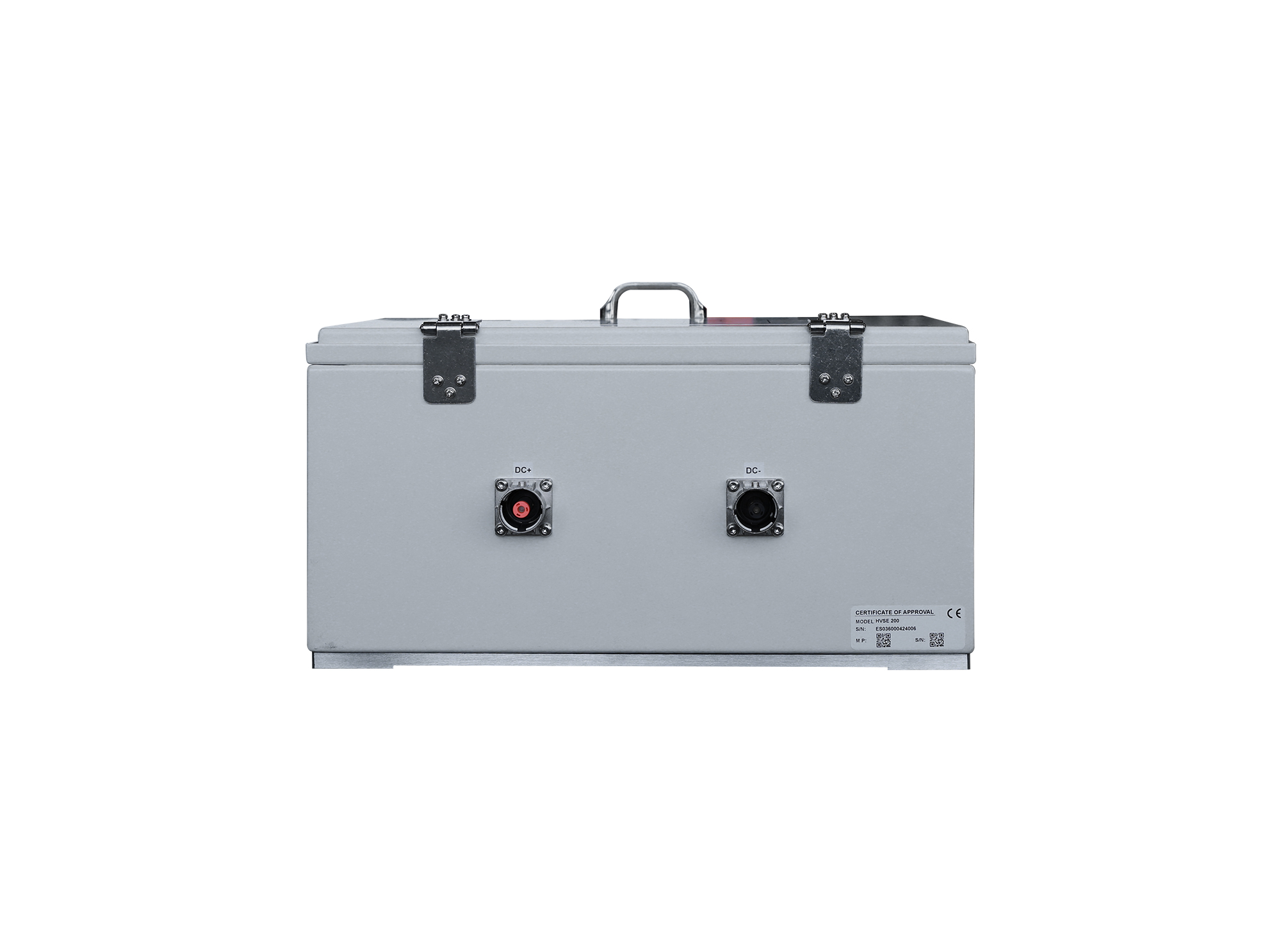

Port on Rear Panel	DUT Output
Port Withstand Voltage	1,500 V DC/300 A
Shielded Effect	＞80 dB
Capacitor	Built-in 100 nF grounding capacitor with a voltage rating of 1,500 V DC

General Parameters

Accessories

Standard Accessories

Test Cables

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: High Voltage Shielded Enclosure Next: Voltage Ripple Disturbance Simulator Back to list

Material	Aluminum
Dimension	345 (W) * 210 (H) * 405 (D) mm
Weight	Approx. 5 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%, RH (no condensation)
