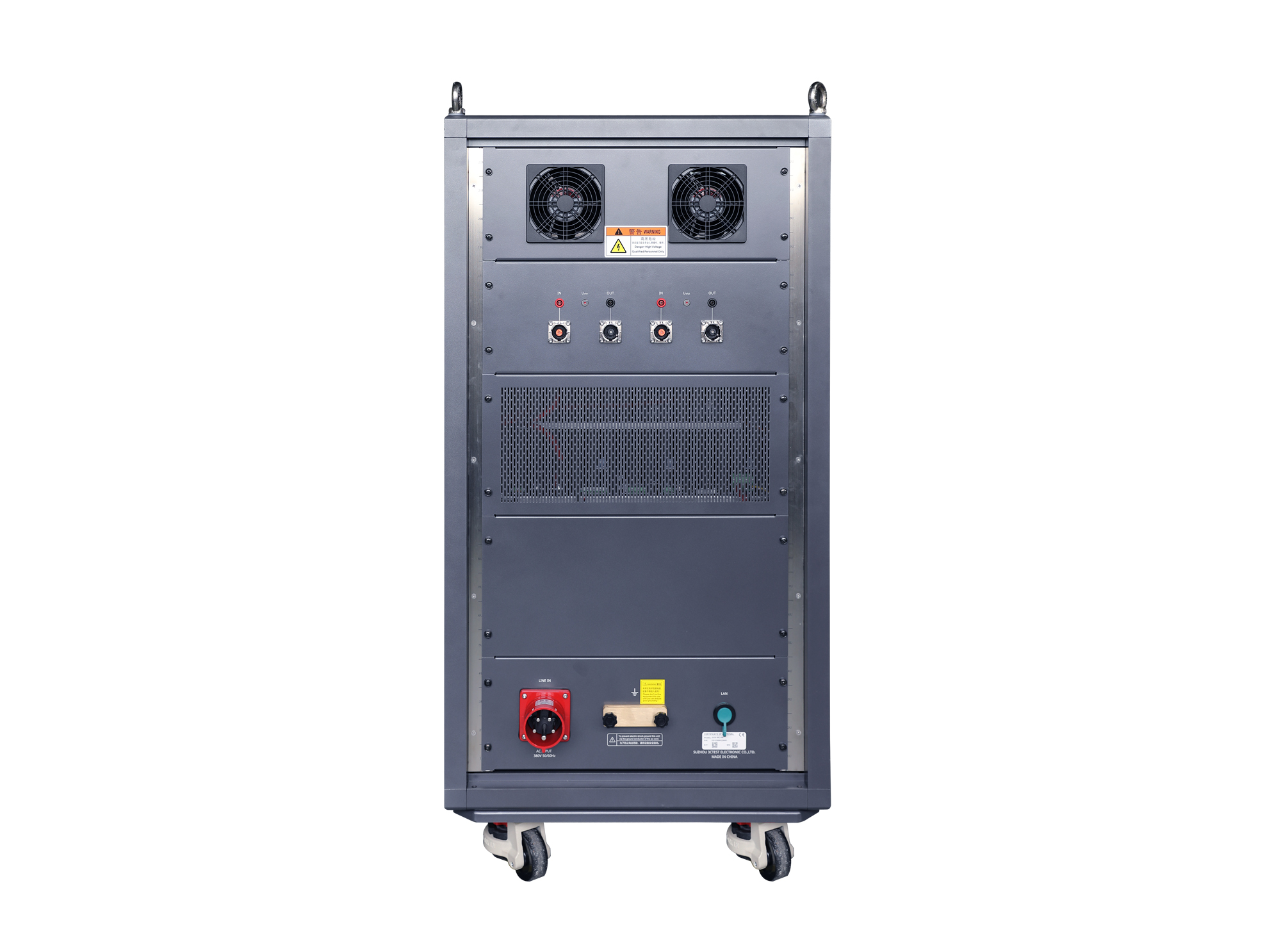

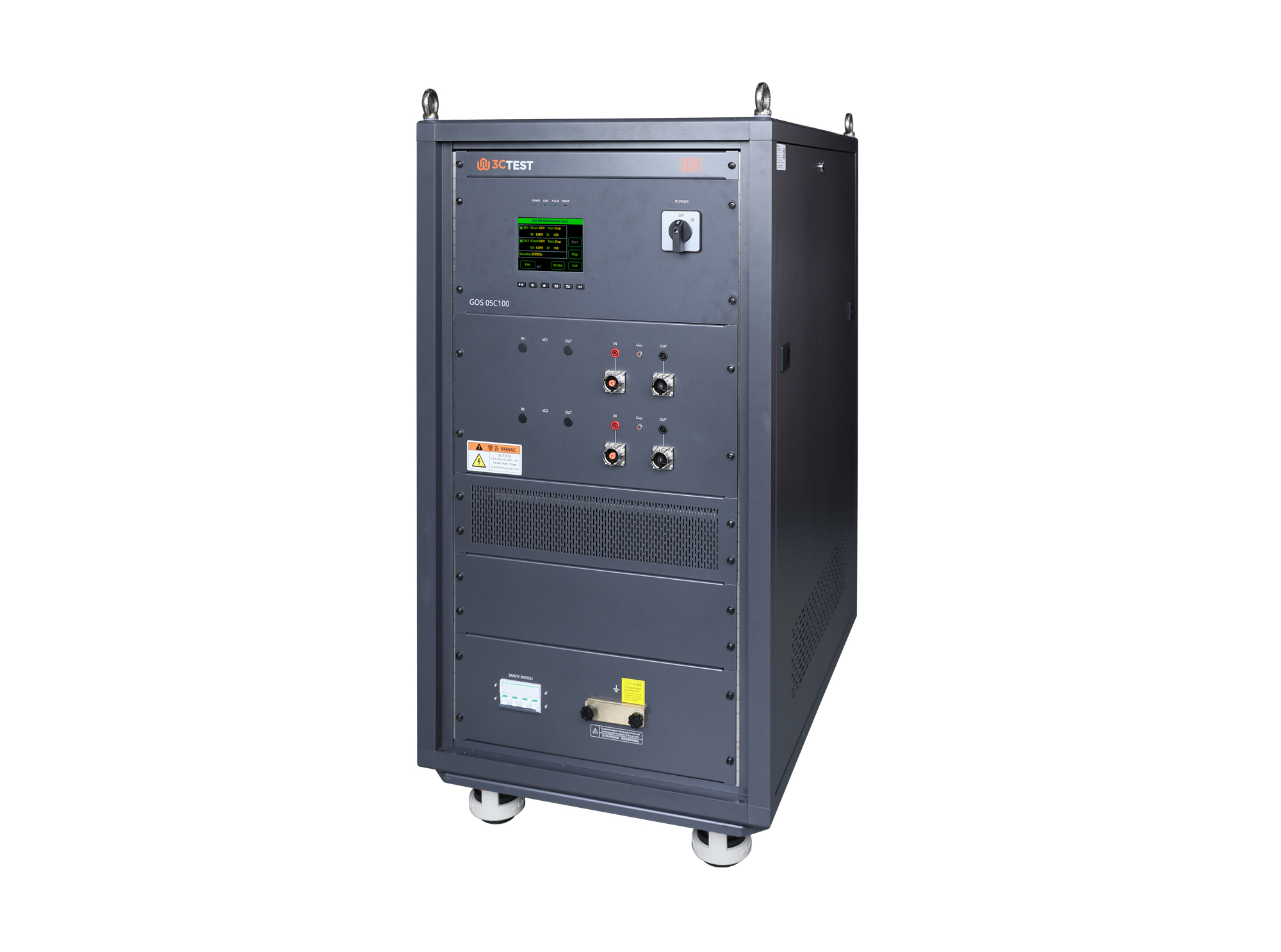

Ground Offset Simulator

GOS 05C100

The GOS 05C100 ground offset simulator complies with ISO 16750-2, ISO 21780, VW 80000, GMW 3172.

Request a Quote Add to Compare Add to Quote List

Introduction

The GOS 05C100 ground offset simulator complies with ISO 16750-2, ISO 21780, VW 80000, GMW 3172. It is a standalone test instrument specially designed to accurately reproduce and verify ground reference variations and power supply offsets of vehicle electronic systems.

Features

> Dual-channel independent output

> Max. test current 100 A

> Single-channel Max. power 500 W

> Support output voltage and current monitoring and protection

Standards

ISO Standards

GB/T Standards

Other Standards

Application Areas

Automotive Electronics

Application Areas

Technical Parameters

Output Voltage	-5 V ~ -1 V, 0 V，+1 V ~ +5 V
Voltage Accuracy	±0.1 V (-1 V, 0 V, +1 V), other ±10%
High-level Holding Time	1 s ~ 9,999 s
Rated Current	100 A
Protect Circuit	Overcurrent protection
Trigger Mode	Automatic
Output Terminal	HV Shield Terminal

General Parameters

Accessories

Standard Accessories

Power Cord, Fuse, Test Cable, Grounding Wire, User Manual

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: None Next: Voltage Offset Simulator Back to list

Display Screen	5-inch TFT touch screen
Working Power	AC 380 V, 土10%, 50 Hz/60 Hz
Power Consumption	Max. 1,500 W
Communication Mode	Ethernet LAN, RJ45
Working Status Indication	LED indication and LCD display on the front panel
Grounding Method	Flat grounding wire
Dimension	22U rack, 600 (W)1,250 (H)800 (D)mm
Weight	Approx. 150 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
