Impulse Current Simulator

PCC 10000&S10C2000

The PCC 10000 & S10C2000 is a new type of impulse current simulator developed in accordance with IEC 61643-11 and GB/T 18802.11.

Features

> 5.7-inch color touch screen front panel operation

> The Max. test current is 20 kA

> Generates 8/20 µs current waveform

> Test sequence function

> Built-in system fault alarm function

Standards

IEC Standards

GB/T Standards

Application Areas

Specification

Technical Parameters

Test Current	0.5 kA ~ 22 kA ±10%, calibration current starting from 1 kA
Charging Voltage	＜10 kV
Current Waveform	Rise time: 8 µs ±10% Duration: 20 µs ±10%
Output Polarity	Positive, negative, alternative
Source Output Impedance	＜0.5 Ω
Repetition Rate	5 s ~ 99 s (Minimum interval depends on test current)
Test Counter	1 ~ 10,000
Trigger Mode	Manual, Auto, External Trigger

General Parameters

Accessories

Optional Accessories

1	Wide-band Current Monitor	Model: CM 0301M

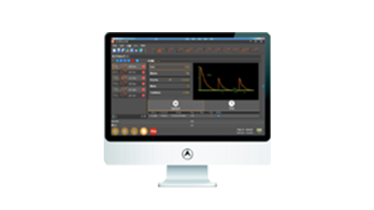

2	PC Control Software	Model: Corelab Compatible with Windows 7 and Windows XP. It features user-friendly operation with an elegant and intuitive interface. Equipped with comprehensive operation functions and standard test libraries.

Standard Accessories

User Manual, Three-core Power Cord, Fuse, Grounding Wire, Test Cable

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Working Power	AC 110 V/220 V ±10%, 50/60 Hz
Fuse	6 A
Max. Power Consumption	500 W
Communication	Ethernet LAN, RJ45
External Control Mode	25-pin parallel cable
External Trigger Input	BNC, 5 V TTL; Normally open contact. The unit can be triggered by oscilloscope when internal circuit closes.
Operation Control Input	BNC, 5 V TTL
Failure Detection	LCD display in front panel and stop work when failure occurs
Working Status Indication	LED indication and LCD display in front panel
Grounding Method	Flat grounding wire
Dimension	PCC 10000: 4U rack, 450(W)190(H)620(D) mm S10C2000: 6U rack, 450(W)280(H)620(D) mm
Weight	PCC 10000: Approx. 16 kg S10C2000: Approx. 44 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
