Impulse Current Simulator

S6B600

The S6B600 is a new type of impulse current simulator developed in compliance with IEC 61643-11 and GB/T 18802.11.

Request a Quote Add to Compare Add to Quote List

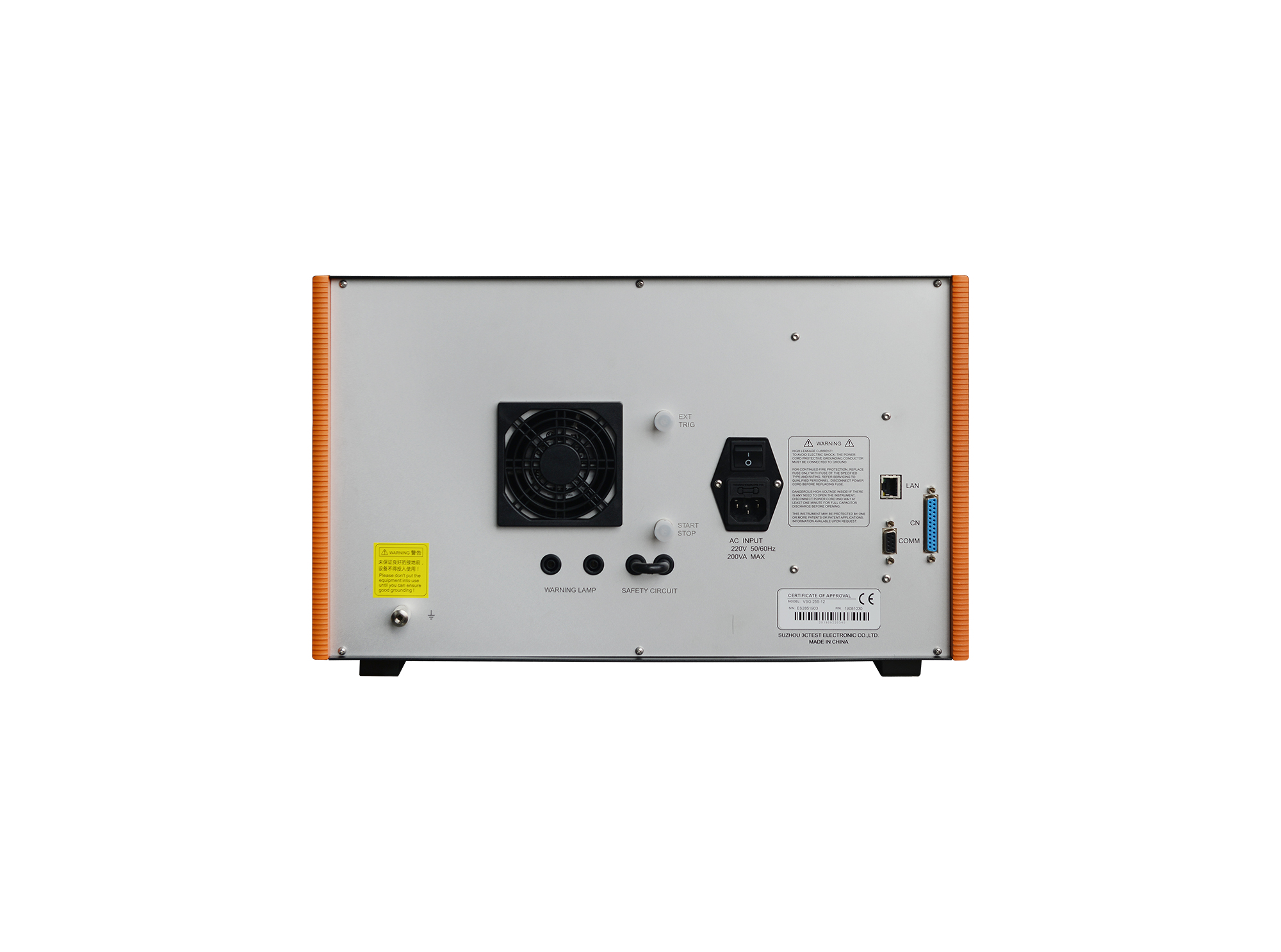

Introduction

The S6B600 is a new type of impulse current simulator developed in compliance with IEC 61643-11 and GB/T 18802.11. It can output a 4/10 μs impulse current waveform with a Max. output current of 6,000 A.

Features

> 5.7-inch color touch screen front panel operation

> Max. test current 6,000A

> Support text sequence function and easy operation

> Built-in fault alarm function

> Generate a 4/10 μs current waveform

Standards

IEC Standards

IEC 61643-11

GB/T Standards

GB/T 18802.11

Application Areas

Components

Specification

Technical Parameters

Test Current Range	100 A ~ 6,600 A，±10%
Current Waveform	Rise Time: 4 μs ± 10% Duration: 20 μs ± 10%
Output Polarity	Positive, negative, alternative
Source Impedance	1 ohm ± 10%
Charging Voltage	＜ 6.6 kV
Pulse Period	5 s ~ 99 s (The minimum interval depends on the test current.)
Test Count	1 ~ 10,000
Trigger Mode	Manual, Auto, External Trigger

General Parameters

Accessories

Standard Accessories

Three-core Power Cord, User Manual, Test Cables, Grounding Wire, Fuse

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Impulse Current Simulator Next: Impulse Current Simulator Back to list

Display Screen	5.7” TFT touch screen
Working Power	AC 110V/220 V，±10%，50/60 Hz ±5%
Fuse	6 A
Max. Power Consumption	500 W
External Control Mode	25-pin parallel cable
External Trigger Input	BNC, 5 V TTL normally open contact. Triggered by oscilloscope when the internal circuit is closed.
Operation Control Input	BNC, 5 V TTL
Failure Detection	LCD display in front panel and stop work when failure occurs
Working Status Indication	LED indication and LCD display in front panel
Grounding Method	Flat grounding wire
Communication Mode	Ethernet LAN, RJ45
Dimension	6U rack
Weight	Approx. 24 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
