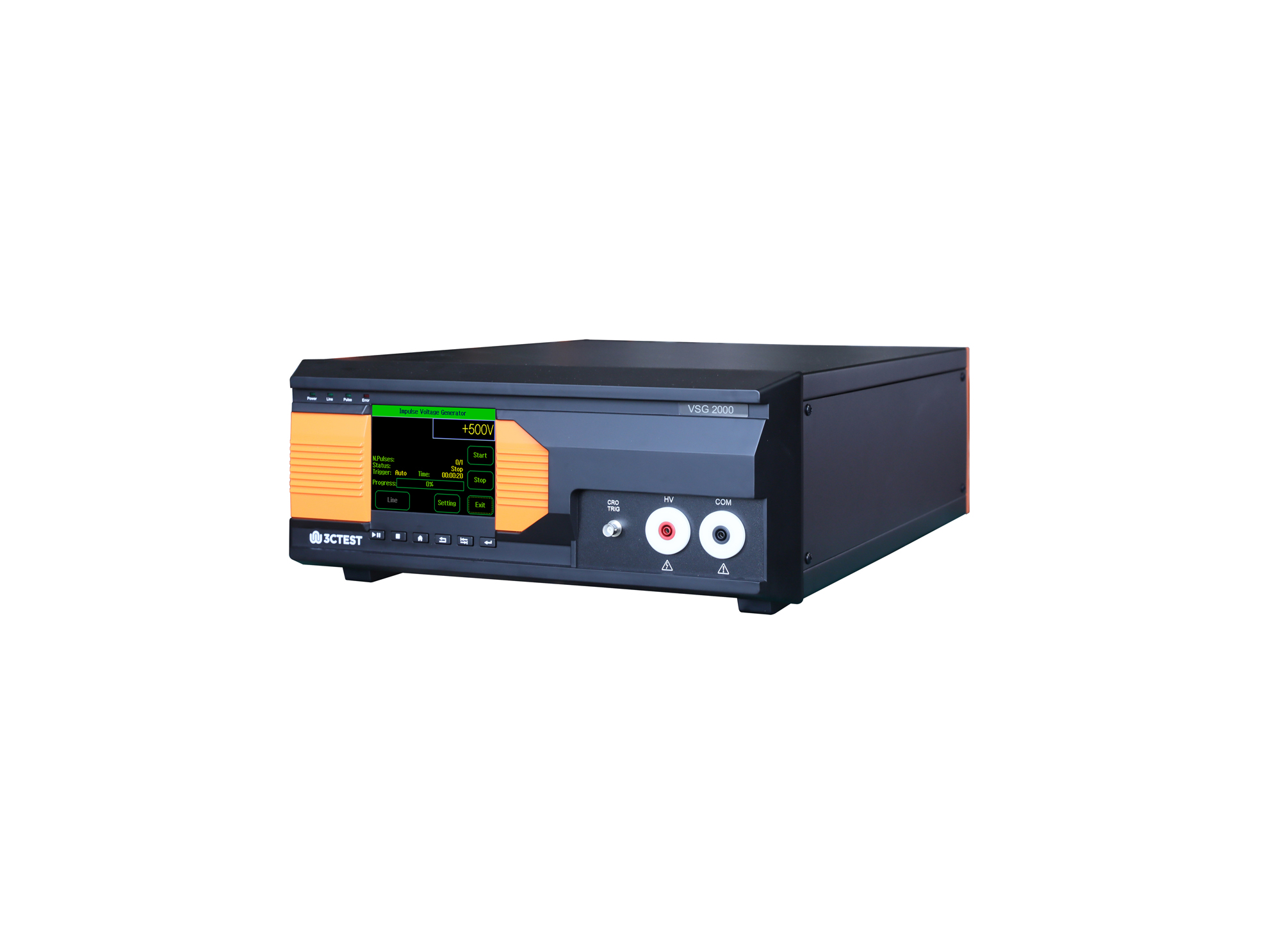

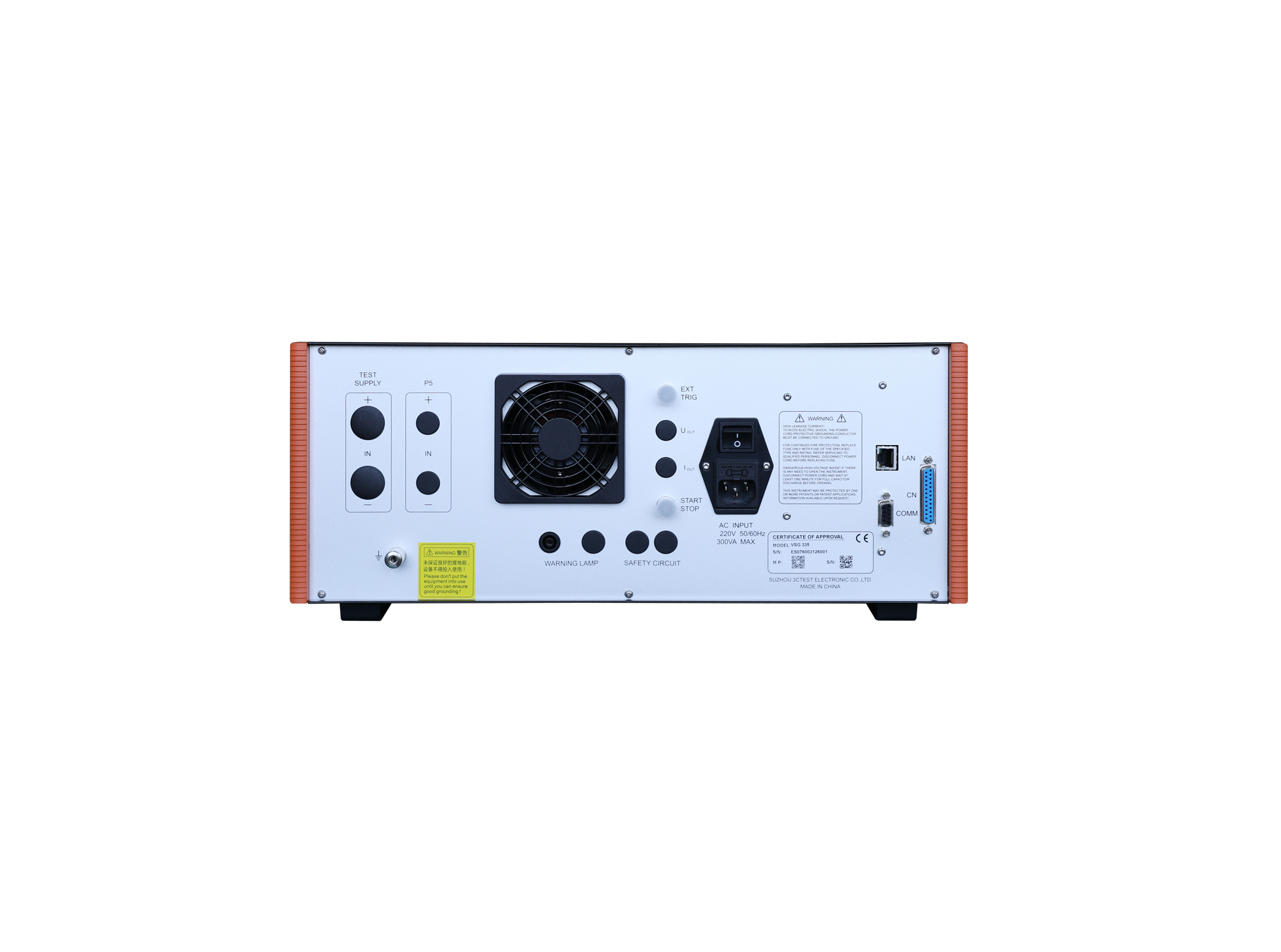

Voltage Surge Simulator

VSG 2000(500 Ω/0.2 μF)

The VSG 2000 is a voltage surge simulator complies with IEC 61180 and GB/T 17627.It is used for insulation withstand voltage and surge tests of components and units.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The VSG 2000 is a voltage surge simulator complies with IEC 61180 and GB/T 17627.It is used for insulation withstand voltage and surge tests of components and units.

The VSG 2000 generates 1.2/50 μs voltage surge waveforms. Its Max. pulse voltage is 20 kV, and output impedance is 500 Ω.

Features

> 5.7 inches color touch screen

> Max. pulse voltage 20 kV

> Support text sequence function

> DUT leakage current breakdown alarm function

Standards

IEC Standards

IEC 61180

GB/T Standards

GB/T 17627

Application Areas

Specification

Technical Parameters

Test Voltage	0.5 kV ~ 20 kV, ±3% ±35 V
Waveform Parameters (Open-circuit Voltage)	Front time: 1.2 μs ± 30% Duration time: 50 μs ± 20%
Output Impedance	500 Ω
Voltage Resolution	1 V
Polarity	Positive, negative, alternative
Burst Period	5 s ~ 99 s (Min. interval depends on test voltage)
Counter	1 ~ 10,000
Trigger Mode	Auto, manual, external trigger
Test Mode	Support text sequence function
Voltage Display	Display of charging voltage
DUT Breakdown Leakage Current	100 mA ~ 1,200 mA

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Grounding Wire, Fuse, Coaxial Cables

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: None Next: Impulse Voltage Simulator Back to list

Working Voltage	AC 100 V ~ 264 V, ±10%, 47 Hz ~ 63 Hz
Fuse	6 A
Max. Power Consumption	300 W
Communication Mode	Ethernet Lan (RJ45 interface)
Working Status Indication	LED indication and LCD display in front panel
Grounding Mode	Flat grounding wire
Dimension	6U rack, 450(W)280(H)620(D) mm
Weight	Approx. 30 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
