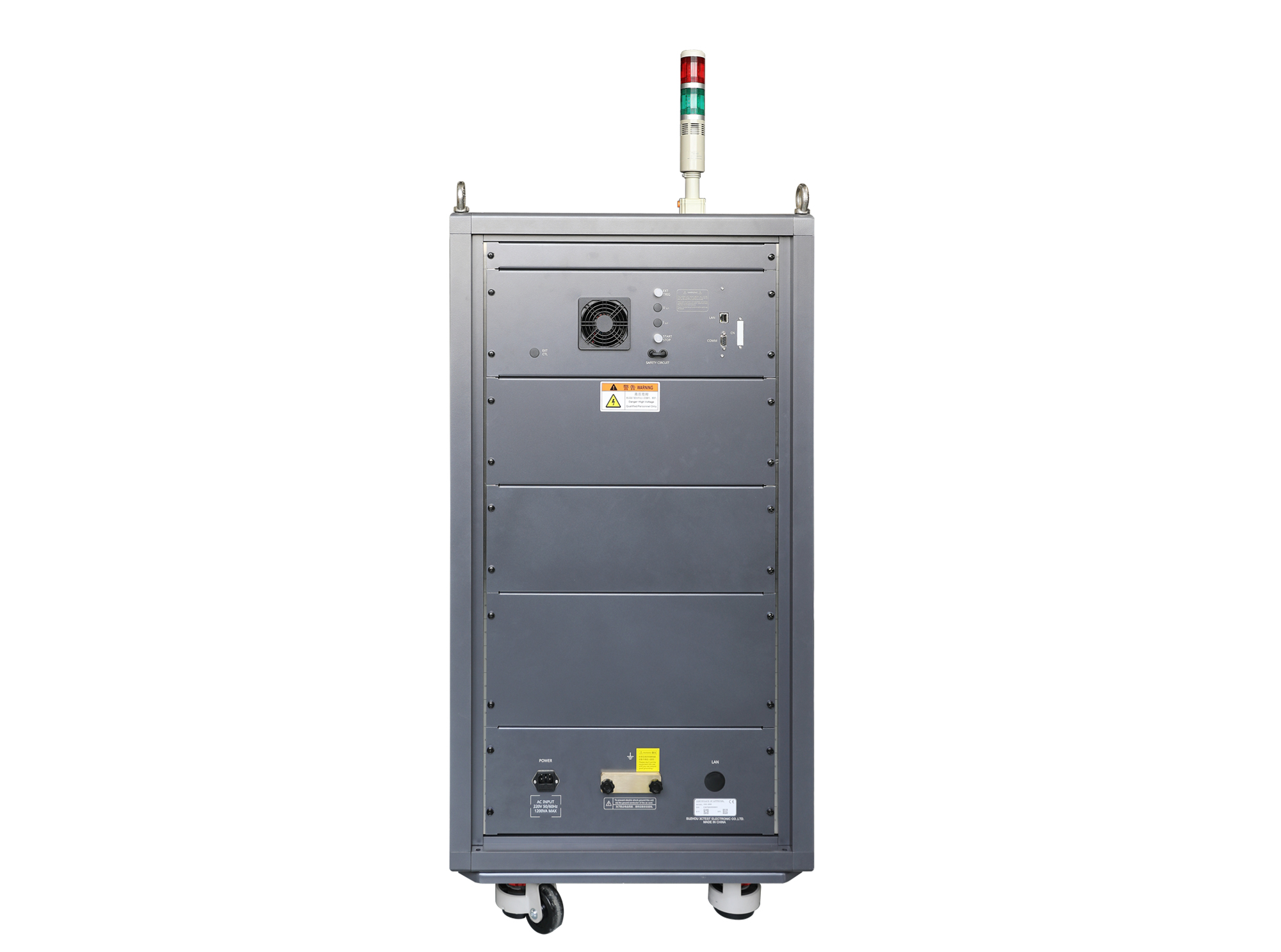

Impulse Voltage Simulator

VSG 2500

The VSG 2500 Impulse Voltage Simulator is designed in compliance with IEC 61180-1 and IEC 60335-1 to evaluate the dielectric withstand capability of electrical equipment. It’s capable of generating 1.2/50μs impulse voltage pulses from 0.5 kV to 25 kV, providing reliable and accurate testing performance.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

Features

> 5.7 inches color touch screen

> Max. test voltage 25 kV

> Support test sequence function

> Output impedance 2 Ω, 38 Ω, 500 Ω

> Equipped with an emergency stop button for immediate shutdown and enhanced operational safety

Standards

IEC Standards

GB/T Standards

Application Areas

Specification

Technical Parameters

Test Voltage	0.5 kV ~ 25 kV, ±3% ±35 V
Output Waveform (Open-circuit Voltage)	Front time: 1.2 μs ± 30% Duration time: 50 μs ± 20%
Output Impedance	2 Ω, 38 Ω, 500 Ω
Voltage Resolution	1 V
Polarity	+, -, first + then -
Repetition Time	4 s ~ 99 s (Min. interval depends on test voltage)
Counter	1 ~ 10,000
Trigger Mode	Auto, manual, external trigger
Test Mode	Support test sequence function
Voltage Display	Displays charging voltage in real time
Safety Circuit	Press the emergency stop button for immediate shutdown

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Grounding Wire, Fuses, RF Cable

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Impulse Voltage Simulator Next: None Back to list

Working Voltage	AC 220 V, ±10%, 50/60 Hz
Fuse	10 A
Max. Power Consumption	1,200 W
Communication Mode	Ethernet Lan (RJ45 interface)
Working Status Indication	LED indication and LCD display in front panel
Grounding Mode	Flat grounding wire
Dimension	22U rack, 450 mm(W)1,600 mm(H)900 mm(D); With alarm lamp: 600 mm(W)1,600 mm(H)900 mm(D);
Weight	Approx. 180 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
