Power Frequency Magnetic Field Simulator

MFS 1200

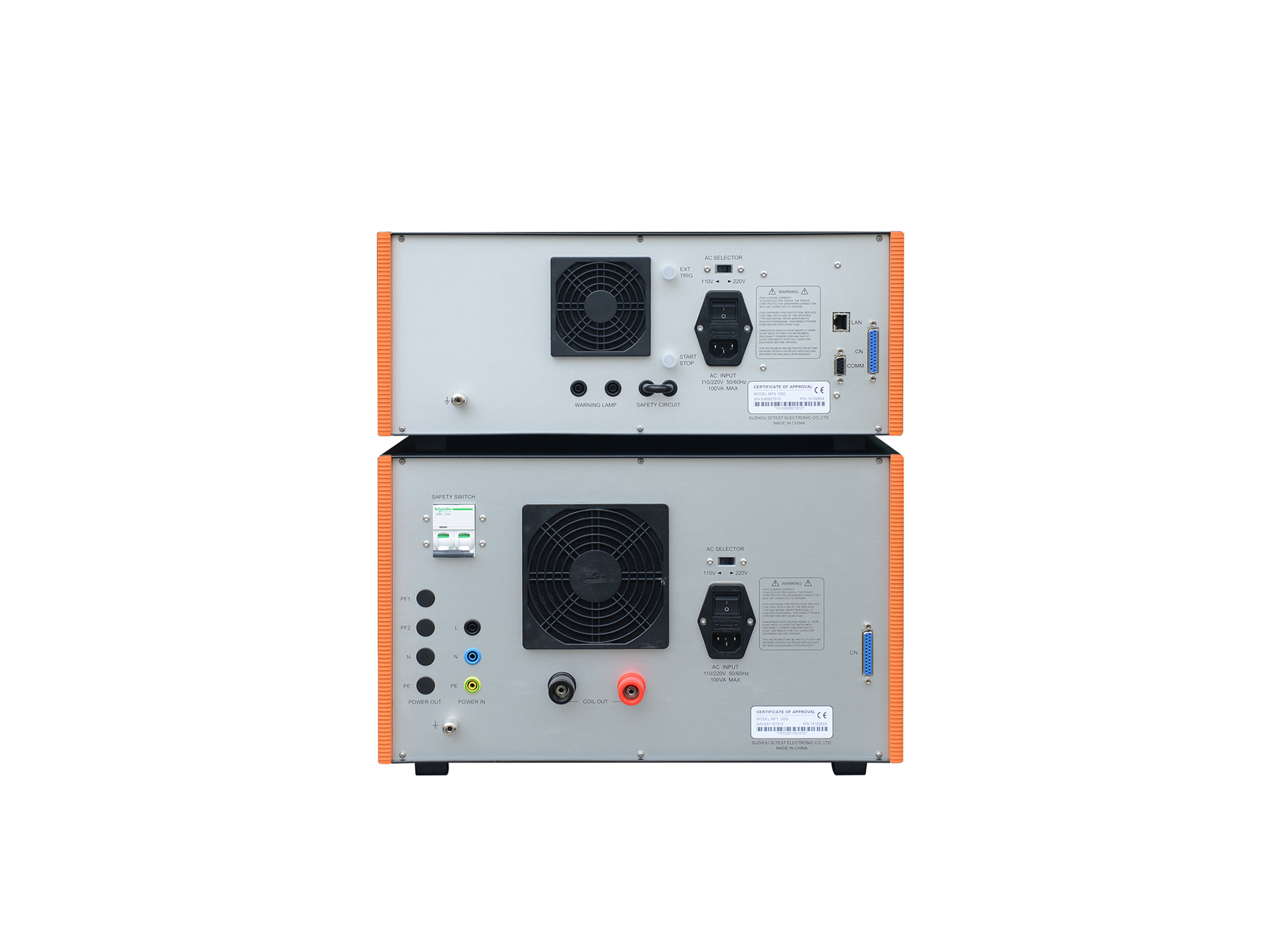

The MFS 1200 Power Frequency Magnetic Field Simulator is a highly reliable test instrument specially designed for power frequency magnetic field immunity tests on electrical and electronic products.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The MFS 1200 Power Frequency Magnetic Field Simulator is a highly reliable test instrument specially designed for power frequency magnetic field immunity tests on electrical and electronic products. It complies with IEC/EN 61000-4-8 and GB/T 17626.8 standards.

It can simulate magnetic field environments of residential areas, commercial zones, industrial and mining enterprises, power plants, as well as medium and high-voltage substations.

Test Connection Diagram

Test Connection Diagram.png

Naming Rules

Naming Rules.png

Features

> 5.7-inch color touch screen front panel operation

> Overvoltage, overcurrent and overtemperature protection

> Test sequence function is controlled by Corelab software.

> RJ45 Ethernet port for remote PC control

> Test report printing

Standards

IEC Standards

IEC 61000-4-8

GB/T Standards

GB/T 17626.8

EN Standards

EN 61000-4-8

Application Areas

Specification

Technical Parameters

Magnetic Field Strength	TCXS 113 Three-turn 1m*1m square magnetic field coil; Continuous: 1 A/m ~ 400 A/m; Short-term (1s ~ 10 s): 400 A/m ~ 1,200 A/m
Magnetic Field Output Accuracy	Error: less than 1 dB of the set output value
Current Waveform	50 Hz / 60 Hz sine wave
Total Current Harmonic Distortion (THDc)	< 5%
Waveform Interval Time	1 s ~ 9,999 s
Test Duration	1 s ~ 28,800 s
Trigger Mode	Manual, Auto, External Trigger
Magnetic Coil Dimensions	1 m* 1 m or customized
Magnetic Coil Shape	Rectangular or customized
Test Mode	Support test sequence function

General Parameters

Accessories

Standard Accessories

Power Cord, EUT Power Cable, User Manual, Network Cable, 5m Grounding Cable

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Variable-Frequency Magnetic Field Immunity Simulator Next: DC Magnetic Field Immunity Simulator Back to list

Display Screen	5.7”TFT touch screen
Working Power	AC 110 V/220 V(±10%)，50/60 Hz
Fuse	6 A
Max. Power Consumption	100 W
User Storage Space	Unlimited (PC)
Communication Mode	Ethernet Lan (RJ45 interface)
Detection Output Mode	1 m coaxial cable
Dimension	4U rack, 450 mm * 190 mm * 620 mm
Weight	Approx. 15.5 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%

1	MFT 1200	Power frequency magnetic field module, for use with MFS 1200 Dimensions: 6U rack, 450 (W) * 280 (H) * 620 (D) mm Weight: 70 kg
2	TCXS 111	1 m*1 m Coil
3	Control Software	Model: Corelab > Support Windows 7/8/10/11; > Support Ethernet Interface; > Support sequence test, easy to operate, generate and export test report.
