Large Power Frequency Magnetic Field Simulator

MFS 1200AS2250

The MFS 1200AS2250 Large Power Frequency Magnetic Field Simulator is a highly reliable test instrument specially designed for power frequency magnetic field immunity tests on medical electrical equipment and medical electrical systems.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

It can simulate magnetic field environments of residential areas, commercial zones, industrial and mining enterprises, power plants, as well as medium and high-voltage substations.

Features

> 5.7-inch color touch screen front panel operation

> Overvoltage and overcurrent protection

> Over-temperature protection

Standards

IEC Standards

IEC 61000-4-8

GB/T Standards

GB/T 17626.8

EN Standards

EN 61000-4-8

Application Areas

Specification

Technical Parameters

Magnetic Field Strength	*TCXS 1125 1m1m square magnetic field coil;** Continuous: 1 A/m ~ 100 A/m; Short-term (1 s ~ 10 s): 100 A/m ~ 1,200 A/m
Magnetic Field Strength	*TCXS 2250 2m2m square magnetic field coil;** Continuous: 1 A/m ~ 100 A/m; Short-term (1 s ~ 10 s): 100 A/m ~ 1,000 A/m
Current Waveform	50 Hz / 60 Hz sine wave
Total Current Harmonic Distortion (THDc)	< 5%
Waveform Interval Time	1 s ~ 9,999 s
Test Duration	1 s ~ 28,800 s
Trigger Mode	Manual, Auto, External Trigger
Magnetic Coil Dimensions	1 m* 1 m, 2m* 2m
Coil Shape	Rectangular
Coil Test Direction	90°/180°

General Parameters

Coil Parameters

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: DC Magnetic Field Immunity Simulator Next: Damped Oscillatory Wave Simulator Back to list

Display Screen	5.7” TFT touch screen
Working Power	AC 110 V/220 V，±10%，50/60 Hz
Fuse	6 A
Max. Power Consumption	100 W
Grounding Method	Flat grounding wire
Working Status Indication	LED indication and LCD display in front panel
EUT Power Voltage Injection	Cabinet type, single-phase 380 V AC/63 A industrial socket
Trigger Output	Standard 1m coaxial cable
Dimension	35U rack
Weight	Approx. 100 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%

TCXS1125	Magnetic field strength: 1 A/m ~ 1,200 A/m
	Dimensions: 1,320(L) * 180(W) * 1,040(H) mm
TCXS2250	Magnetic field strength: 1 A/m ~ 1,000 A/m
	Dimensions: 2,340(L) * 2,060(W) * 300(H) mm

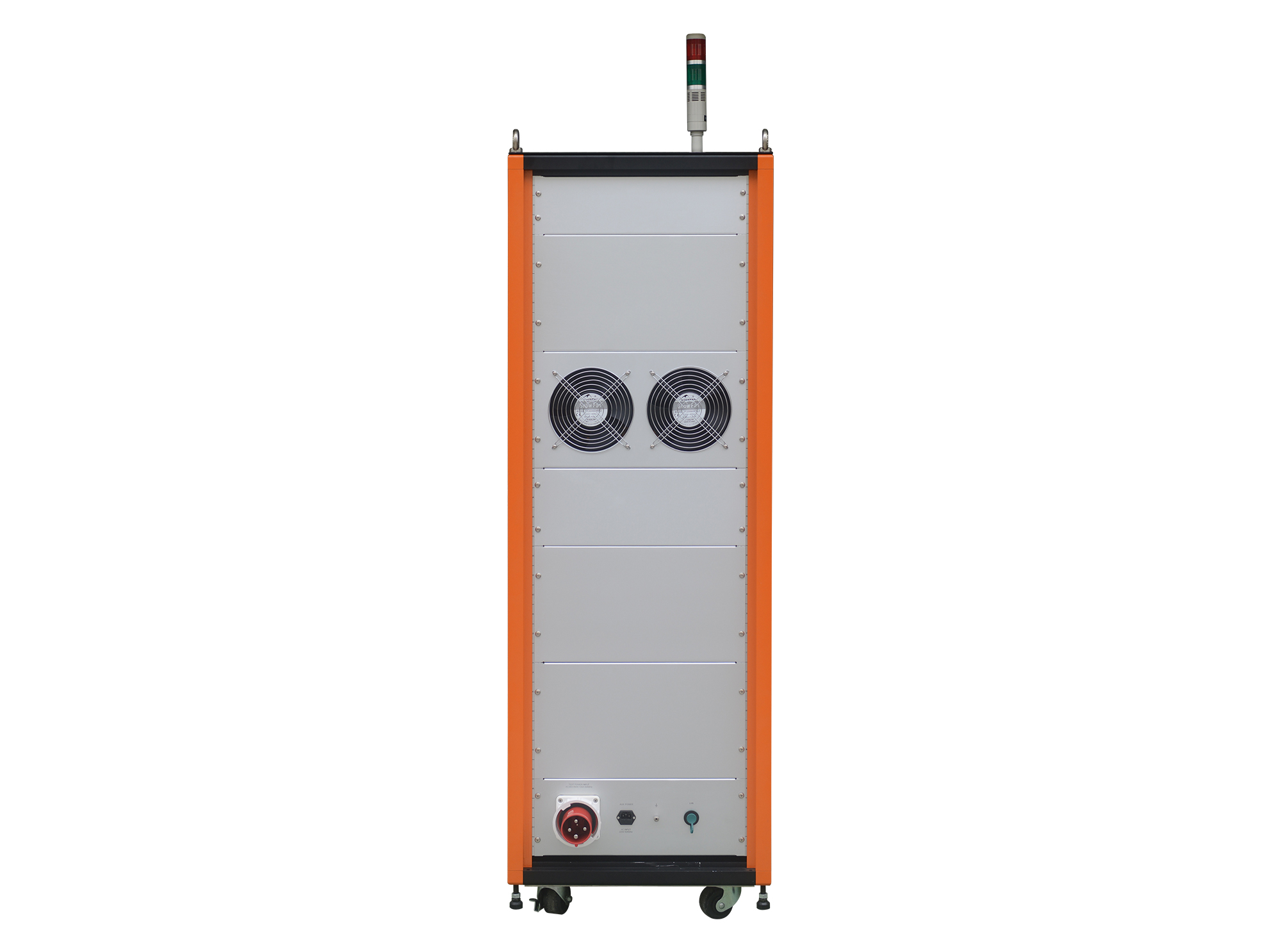

Large Power Frequency Magnetic Field Simulator MFS 1200AS2250
