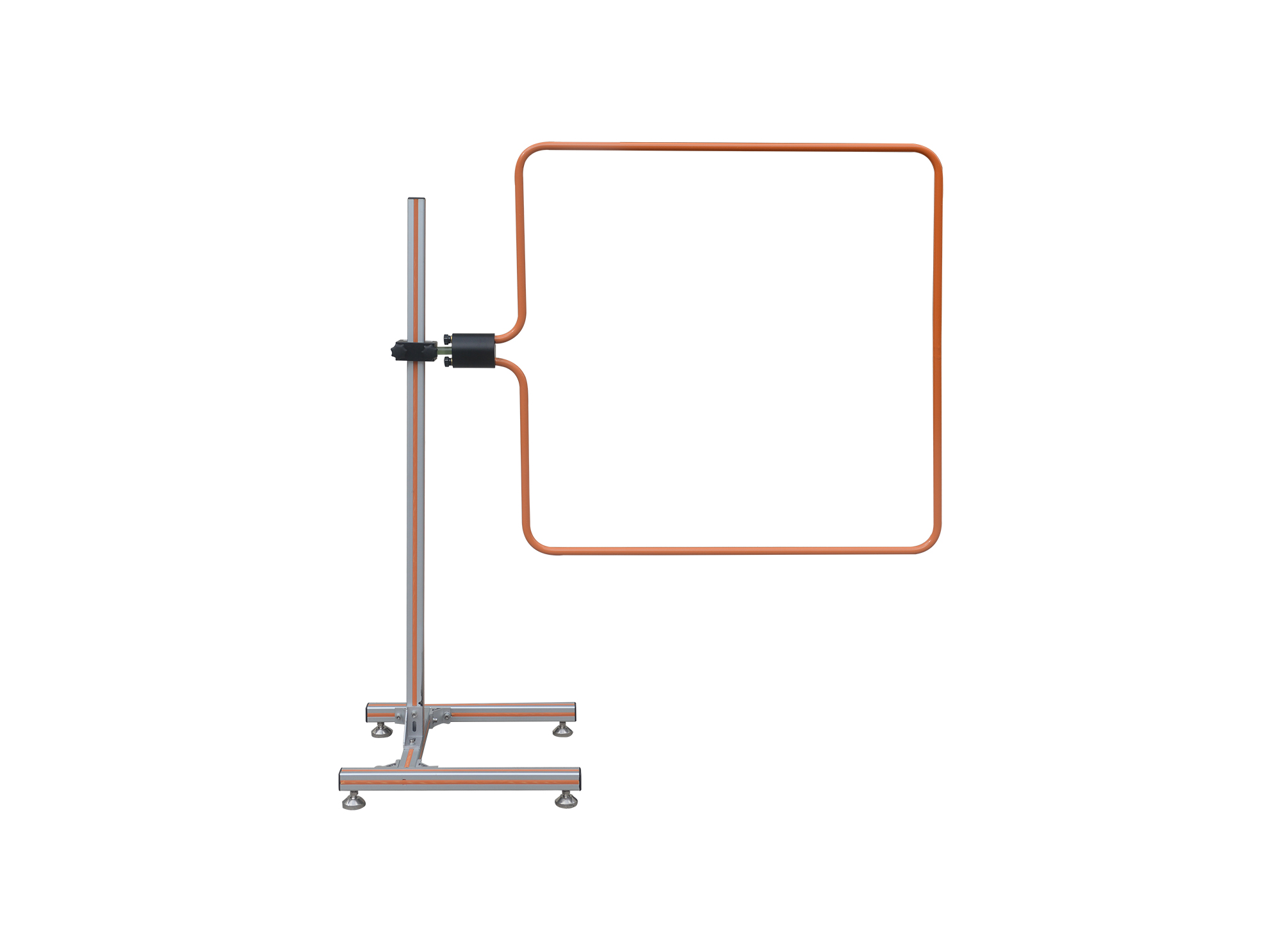

Magnetic Field Coil

TCXS 111

The magnetic field coil TCXS 111 complies with IEC 61000-4-8, -4-9, -4-10 and GB/T 17626.8, GB/T 17215 and GB/T 15283.

Request a Quote Add to Compare Add to Quote List

Introduction

The magnetic field coil TCXS 111 complies with IEC 61000-4-8, -4-9, -4-10 and GB/T 17626.8, GB/T 17215 and GB/T 15283.

The TCXS 111 provides accurate reference for power-frequency magnetic field immunity tests of EUTs. Power-frequency magnetic field tests simulate magnetic environments in residential, commercial, industrial, power plant areas, as well as medium- and high-voltage substations.

Features

> Coil field direction adjustable via 360° rotation in test

> Vertical height adjustable

> Stable output magnetic field strength

> Aluminum profile bracket structural design

Standards

IEC Standards

GB/T Standards

Application Areas

Technical Parameters

Magnetic Field Strength	1 A/m ~ 400 A/m
Magnetic Field Strength	1.26 μT ~ 503 μT
Magnetic Field Direction	90°/180°
Test Duration	≤100 A/m: duration 5 h
Test Duration	≥100 A/m: duration ＜ 10 s
Coil Turn	Single
Overall Coil Dimensions	1,400 (L)* 1,000 (W) mm, Coil height adjustment travel: 500 mm
Coil Size	1,000 (L)* 1,000 (W) mm, Single turn
Ambient Temperature	15℃ ~ 35℃
Dimension	1,500* 1,250* 200 mm
Weight	Approx.10 kg
