Line Impedance Stabilization Network

LISN ML 200HVS

The LISN ML 200HVS line impedance stabilization network is designed according to MIL-STD-461 and GJB 151. Designed for conducted emission test, it isolates power interference and provides the specified power impedance to EUT.

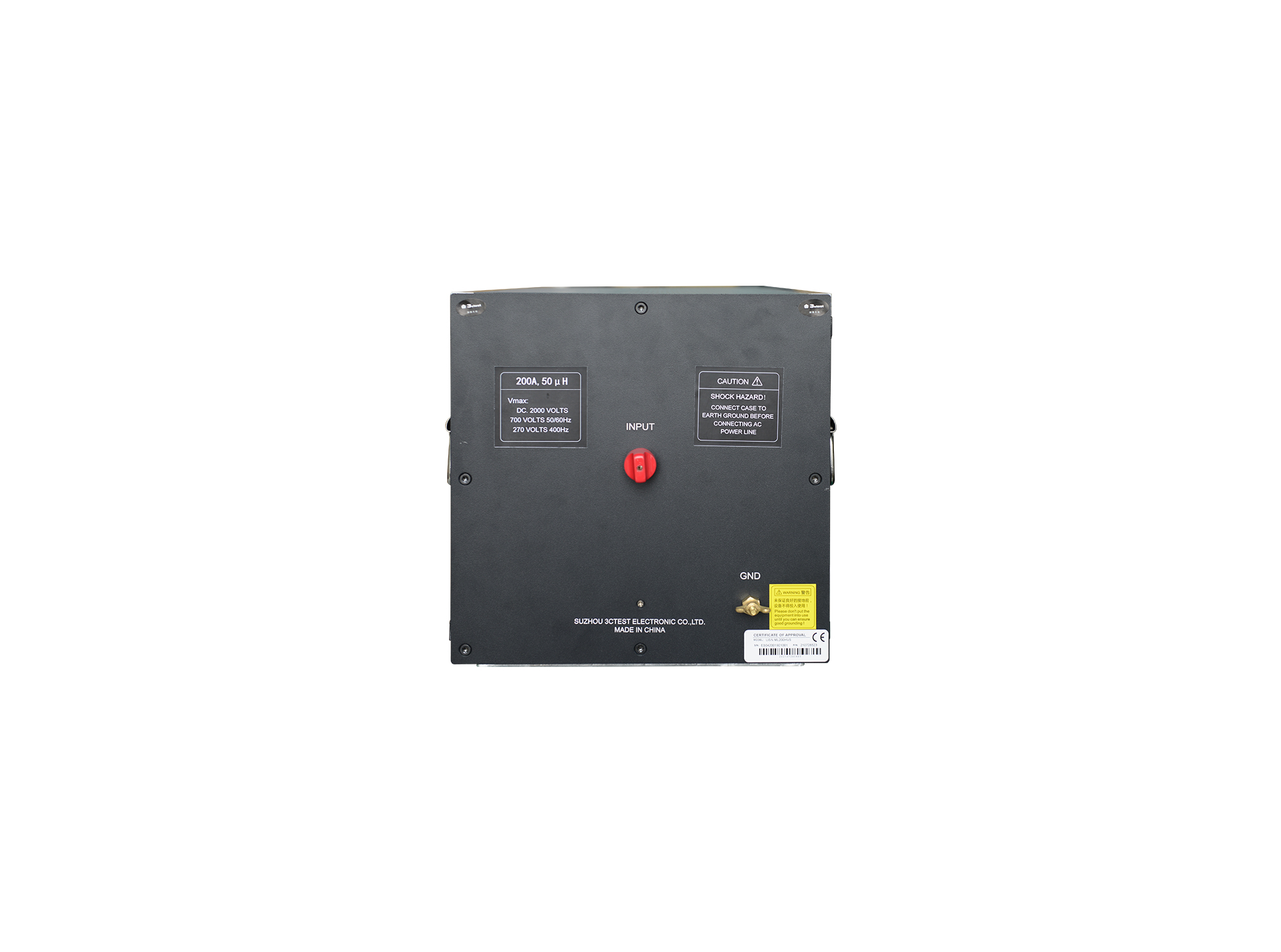

The Max. voltage of EUT port is 2000V DC, 700 V 50/60 Hz, 270 V 400 Hz, the maximum current is 200 A. In test, the OUTPUT port is connected to EUT and INPUT port connected to power supply. The EMI port is type N.

> Max. continuous current is 200 A

> Test voltage 2,000V DC, 700 V 50/60 Hz, 270 V 400 Hz

> Frequency range 9 kHz ~ 30 MHz

> Standard N interface for EMI port
