Line Impedance Stabilization Network

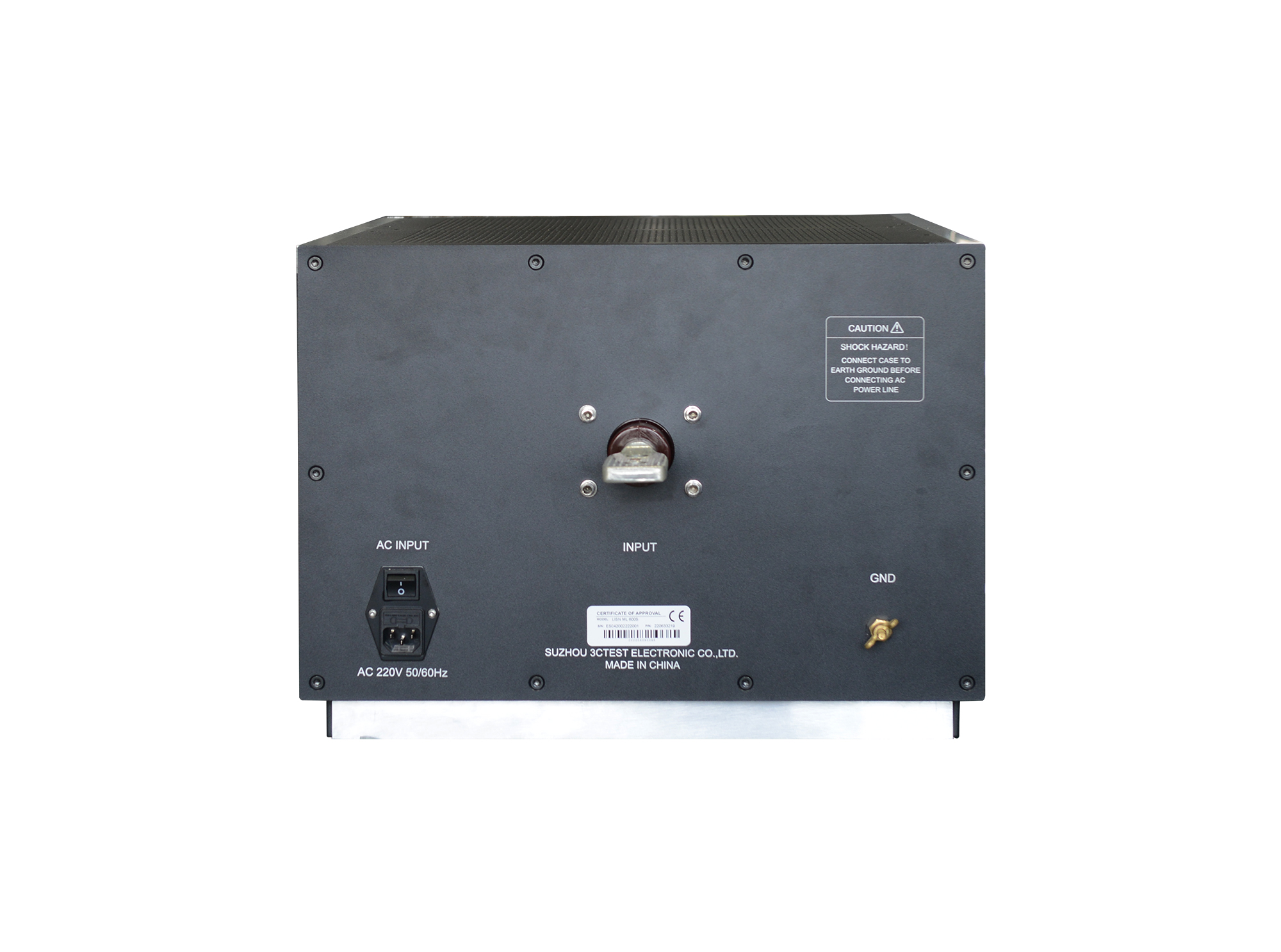

LISN ML 600S

The LISN ML 600S line impedance stabilization network is designed according to MIL-STD-461 and GJB 151. Designed for conducted emission test, it isolates power interference and provides the specified power impedance to EUT.

The Max. voltage of EUT port is DC 600V, 300 V 50 ~ 800 Hz, the maximum current is 600 A. In test, the OUTPUT port is connected to EUT and INPUT port connected to power supply. The EMI port is type N.

> Max. continuous current is 600 A

> Test voltage 600V DC, 300 V 50 ~ 800 Hz

> Frequency range 9 kHz ~ 30 MHz

> Standard N interface for EMI port
