Line Impedance Stabilization Network

LISN ML 800HVS

The LISN ML 800HVS line impedance stabilization network is designed according to MIL-STD-461 and GJB 151.

Request a Quote Add to Compare Add to Quote List

Introduction

The LISN ML 800HVS line impedance stabilization network is designed according to MIL-STD-461 and GJB 151. Designed for conducted emission test, it isolates power interference and provides the specified power impedance to EUT.

The Max. voltage of EUT port is 6,000V DC, 650 V 50/60 Hz, the maximum current is 800 A. The EMI port is type N.

Features

> Max. continuous current is 800 A

> Test voltage 6,000V DC, 650 V 50/60 Hz

> Frequency range 9 kHz ~ 30 MHz

> Standard N interface for EMI port

Standards

GJB Standards

Other Standards

Application Areas

Specification

Technical Parameters

Max. Test Voltage	6,000 V DC, 650 V 50/60 Hz
Max. Test Current	800 A
Test Terminal	Type N
Impedance	50 μH+5 Ω‖50 Ω
Coupling Capacitor	0.25 μF
Impedance Frequency Range	9 kHz ~ 30 MHz

General Parameters

Accessories

Standard Accessories

Power Cable, Fuse, Earthing Bar, User Manual

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: HV High Power Artificial Power Network Next: None Back to list

Working Power	AC 220 V (士10%), 50 Hz /60 Hz (士5%)
Power Input Terminal	M25 terminal post
Power Output Terminal	M25 terminal post
Dimension	510 (W)690 (H)1260 (D) mm
Weight	Approx. 140 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%, RH (no condensation)

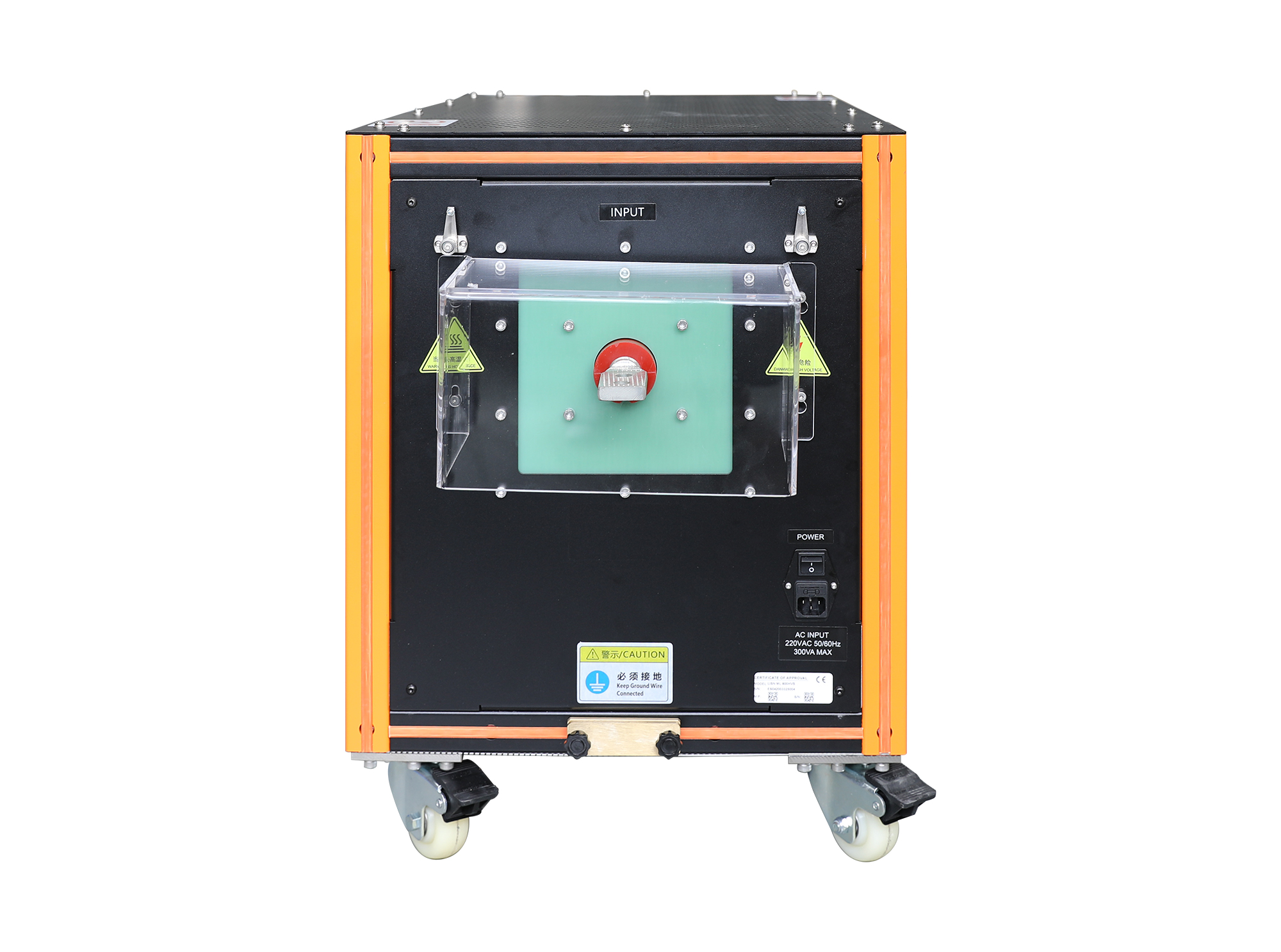

Line Impedance Stabilization Network LISN ML 800HVS
