New Professional Solution for 1500 V / 100 A Voltage Dips and Interruptions Testing.Efficient · Reliable · Safe and Controllable · Precise Simulation of High-Voltage Grid Faults

Industry Background

The 1500V AC voltage platform has gradually become a key development direction in new energy, industrial power, photovoltaic, and energy storage applications, offering advantages in high-power transmission and reduced power loss. Voltage fluctuations caused by grid faults and sudden load changes can easily lead to equipment malfunction, making rigorous voltage dip testing essential for ensuring reliable product operation.

Technical Challenges

The 1500V AC voltage dips, short interruptions, and voltage variations testing system fills a technical gap in industries such as new energy, industrial power, photovoltaics, and energy storage, supporting the validation of high-power equipment in these sectors. At the same time, it introduces major challenges in insulation and arc suppression under high-voltage and high-current conditions, precise simulation of voltage dips, and coordinated automation and safety protection — placing stringent demands on testing accuracy and reliability for large-scale production applications.

Solution

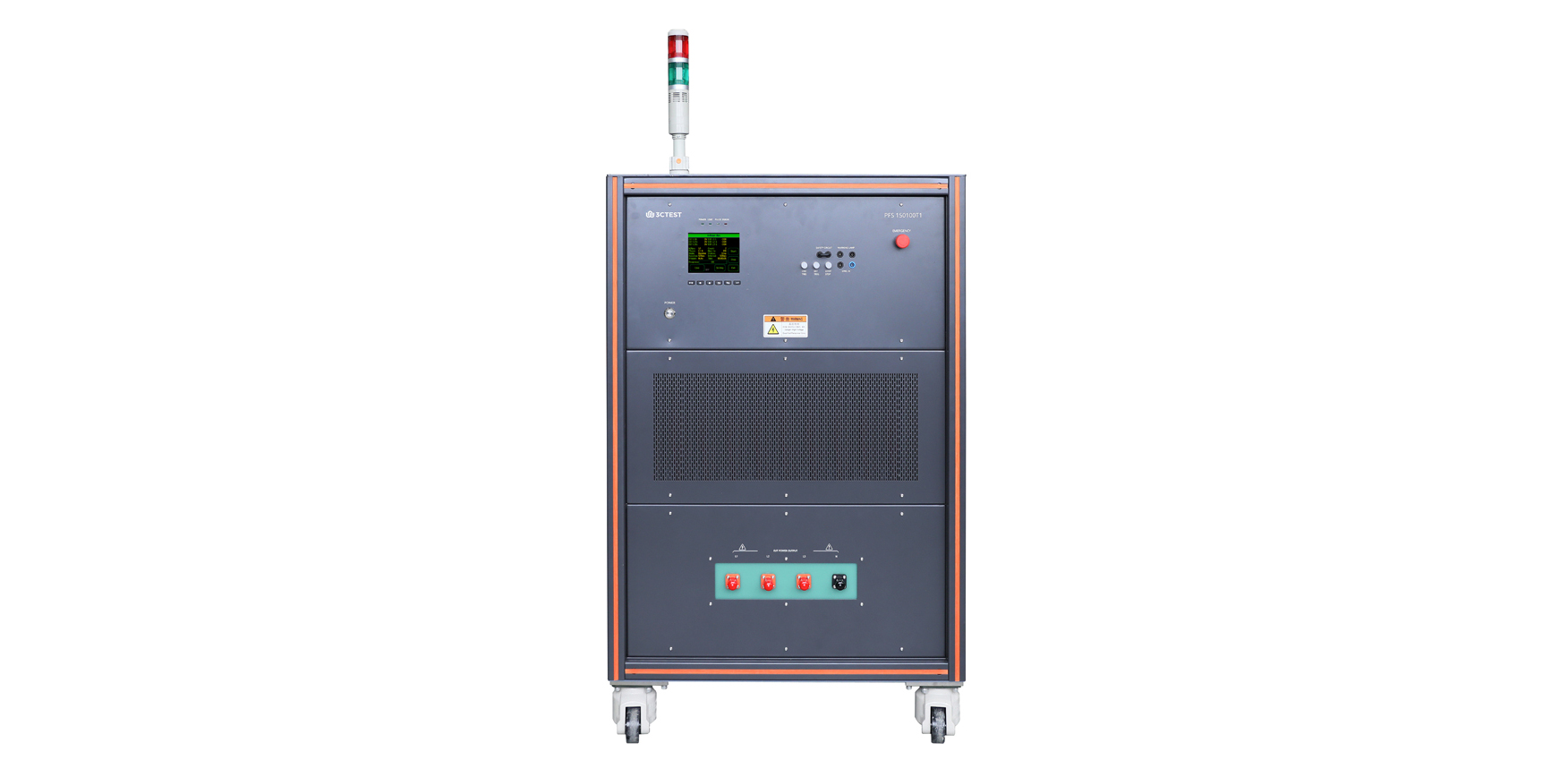

3CTEST PFS 150100T1 Power Failure Simulator

Standards-driven testing to ensure reliability, specifically designed to address the technical challenges above.

Standards Compliance: Compliant with IEC 61000-4-34 and GB/T 17626.34 technical requirements

Realistic Simulation: Optimized arc suppression and waveform control technologies precisely simulate power grid faults. High surge withstand capability supports extreme operating conditions and effectively resolves waveform distortion issues under high-voltage and high-current testing requirements.

Accurate Monitoring: Real-time voltage and current acquisition for complete visibility of test conditions

High Automation: Unified CoreLab software platform featuring graphical interface, test case editing, parameter configuration, automated execution, and full-process automated testing with data traceability

Safe and Controllable: Multiple protection mechanisms with remote control capability, ensuring both testing safety and operational efficiency

Key Technical Specifications

AC 1500V Voltage Dips, Short Interruptions, and Voltage Variations Test System

Model: PFS 150100T1 Power Failure Simulator (click for details)

· Compliant Standards: IEC 61000-4-34, GB/T 17626.34

· Maximum EUT Input Voltage: 1500V AC, 50 / 60Hz

· EUT Voltage/Current (customizable): 102 A

· Surge Current Capability: Greater than 1000 A

· Interruption and Dip Levels: 0%, 40%, 70%, 80%

· Dip and Interruption Duration: 0.3 ~ 9999 cycles or 10 ms ~ 99999 ms

· Dip and Interruption Interval Time: 50 ms ~ 50000 ms

· Dip and Interruption Rise/Fall Time: 1 μs ~ 50 μs @ 50Ω

· Built-in overcurrent, short-circuit, overvoltage, overtemperature, surge, EFT, and ESD protection; Flexible external safety accessory configuration supported (warning lights, emergency stop buttons, etc.)

3CTEST Professional Testing Solutions · Powering the Future

Choose the PFS 150100T1 Power Failure Simulator to safeguard your AC 1500V high-voltage system and ensure every innovation withstands the most demanding validation tests.
