Coupling/Decoupling Network for Shielded Lines

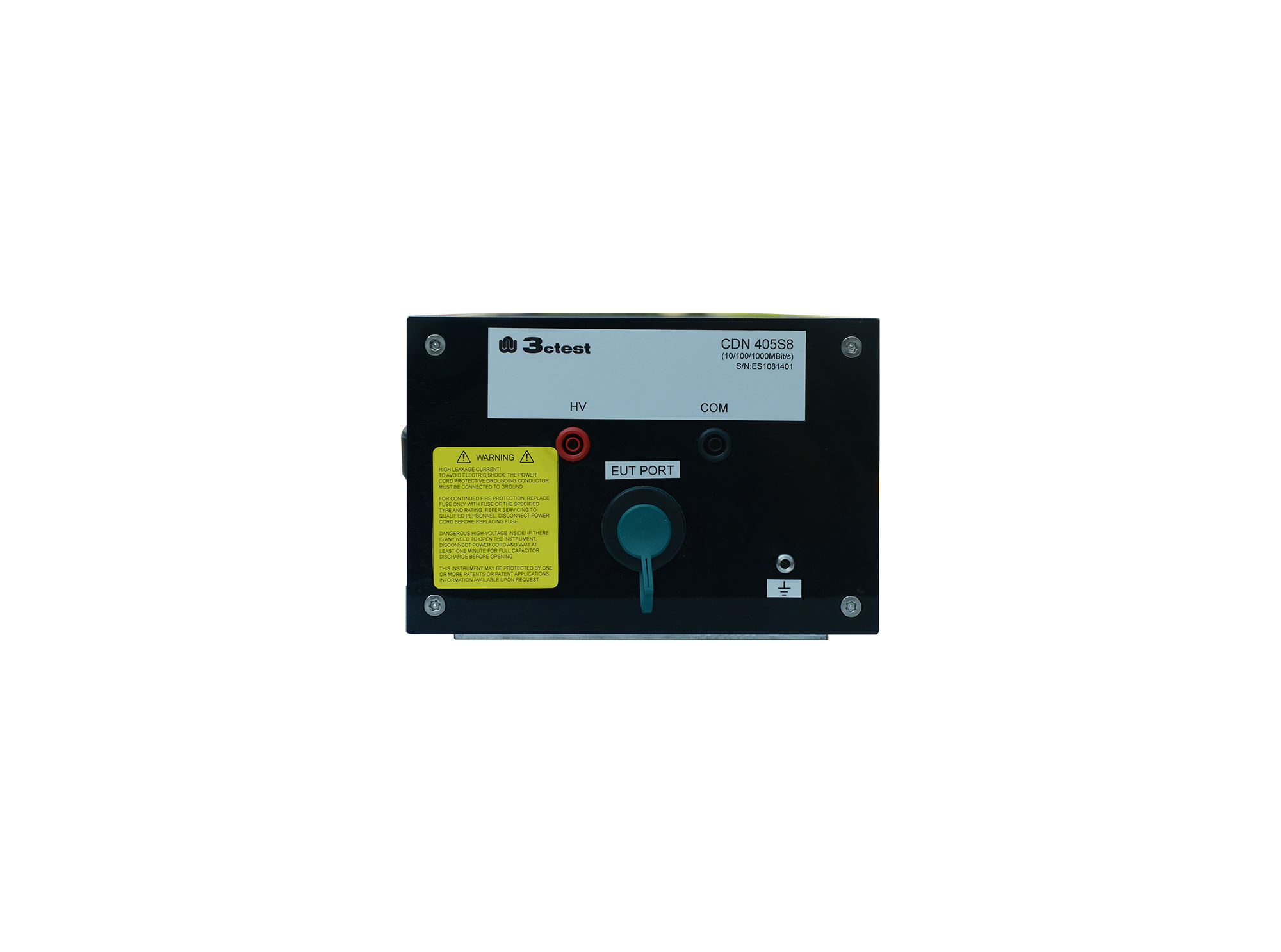

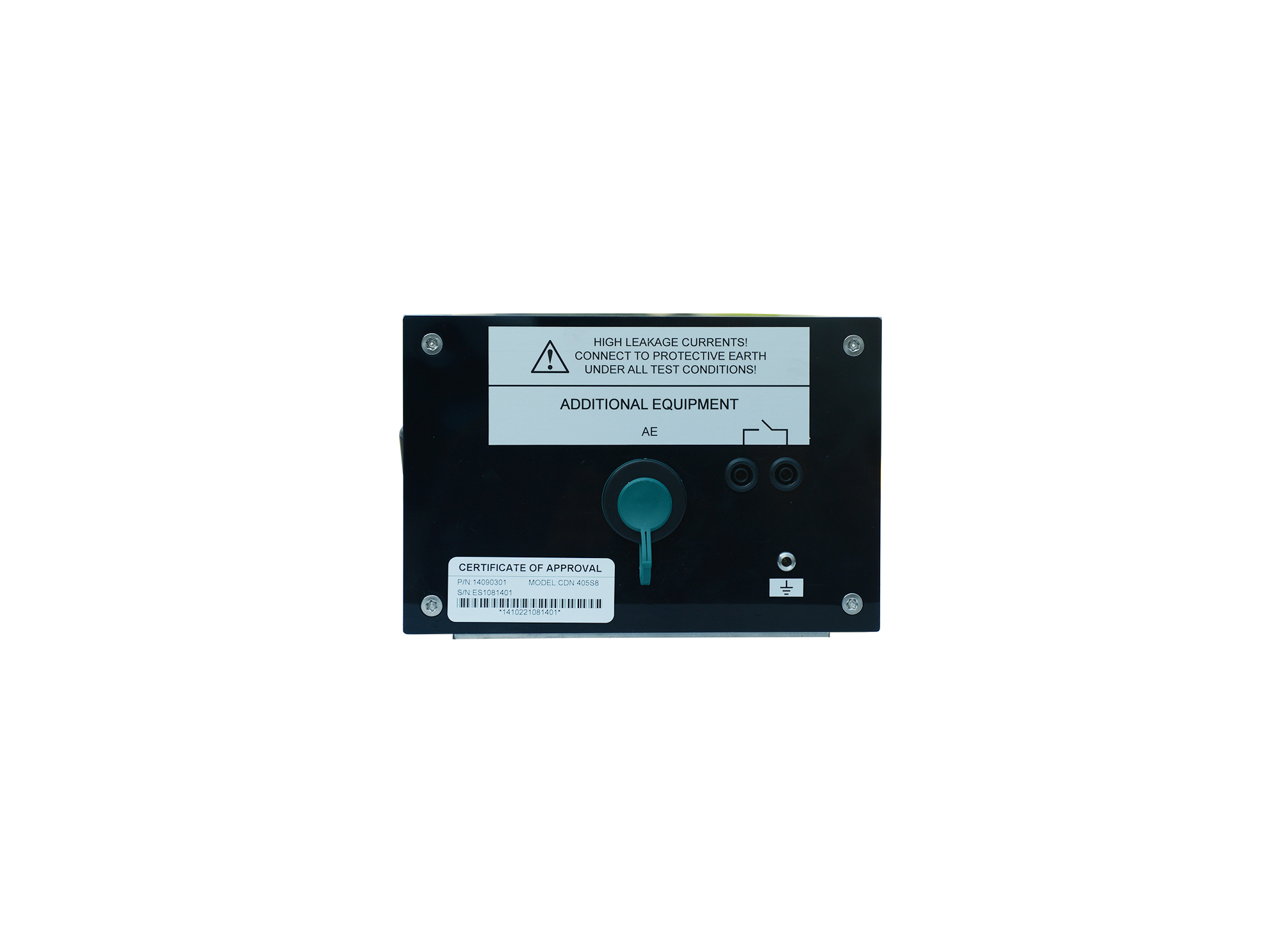

CDN 405S8

The CDN 405S8 Coupling/Decoupling Network for Screened Lines is designed in compliance with IEC/EN 61000-4-5, GB/T 17626.5, and fully complies with the performance and cabling specifications for CDNs.

The CDN 405S8 is a coupling/decoupling network designed for surge immunity testing of shielded Ethernet cables. Its max. test voltage is 6 kV and max. current reaches 1 A. The CDN 405S8 supports test requirements for cables with single-end grounded shielding and double-end grounded shielding.

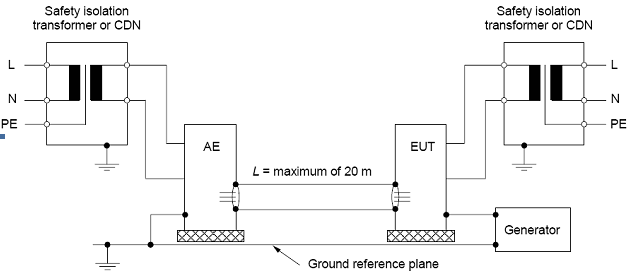

Connection Schematic:

Standard Schematic 1

(Shielded Cable with Both Ends Grounded)

Standard Schematic 2

(Shielded Cable with Single End Grounded)

> Max. pulse voltage 6 kV; Max. working current 1 A

> Support 1,000 Mbit/s signal transmission rate

> Support EMC generators of all brands, quick connection without extra adaptation

> Coupling Waveforms are 1.2/50 μs, 8/20 μs

> Suitable for shielded Ethernet with standard RJ45 interface
