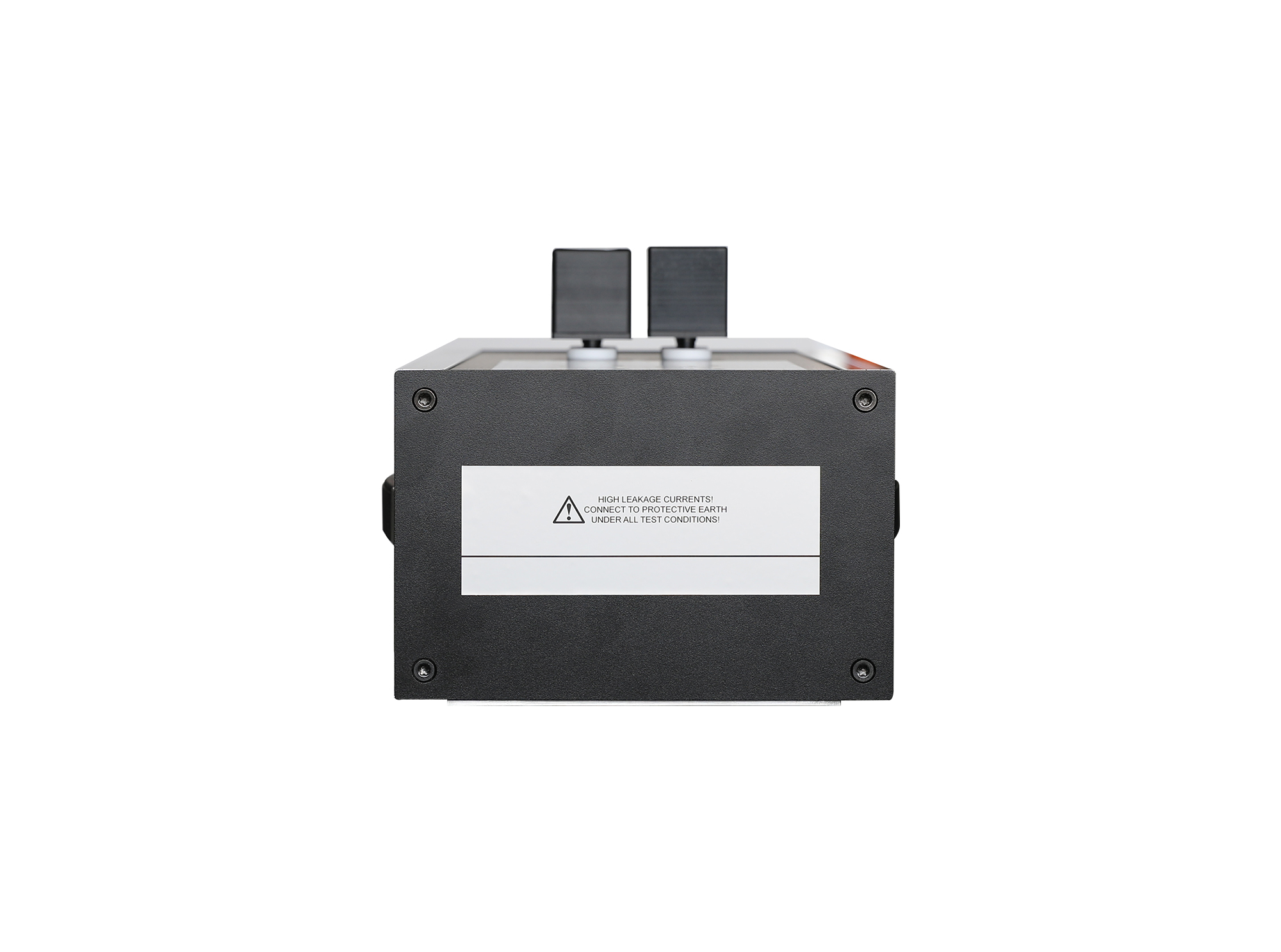

Coupling Network

CN 405AF4

The CN 405AF4 complies with IEC/EN 61000-4-5 and TB/T 3498. It is a professional CN developed for lightning surge immunity tests on railway power supply ports. It supports line-to-ground and line-to-line tests, with a max. pulse voltage of 10 kV. Suitable for line-to-ground and line-to-line tests on balanced communication transmission lines. It also supports line-to-ground and line-to-line tests for unbalanced communication transmission lines. Compact, portable and easy to operate.

Standard connection Schematic:

Figure 15 Balance Communication Transmission Line line-to-ground lightning test circuit diagram

(direct coupling)

Description: In the line-to-ground test, the shock wave is applied between the communication line and the ground wire respectively

Figure 16 Balance Communication Transmission Line line-to-line lightning test circuit diagram

(direct coupling)

Description: In the line-to-line test, the shock wave is applied between two lines of balanced communication line

Figure 17 Balance Communication Transmission Line line-to-ground lightning test circuit diagram

(discharge tube coupling)

Description: In the line-to-ground test, the shock wave is applied between the communication line and the ground wire respectively

Figure 18 Balance Communication Transmission Line line-to-line lightning test circuit diagram

(discharge tube coupling)

Description: In the line-to-line test, the shock wave is applied between two lines of balanced communication line

> Max. pulse voltage 10 kV

> Support EMC generators of all brands, quick connection without extra adaptation

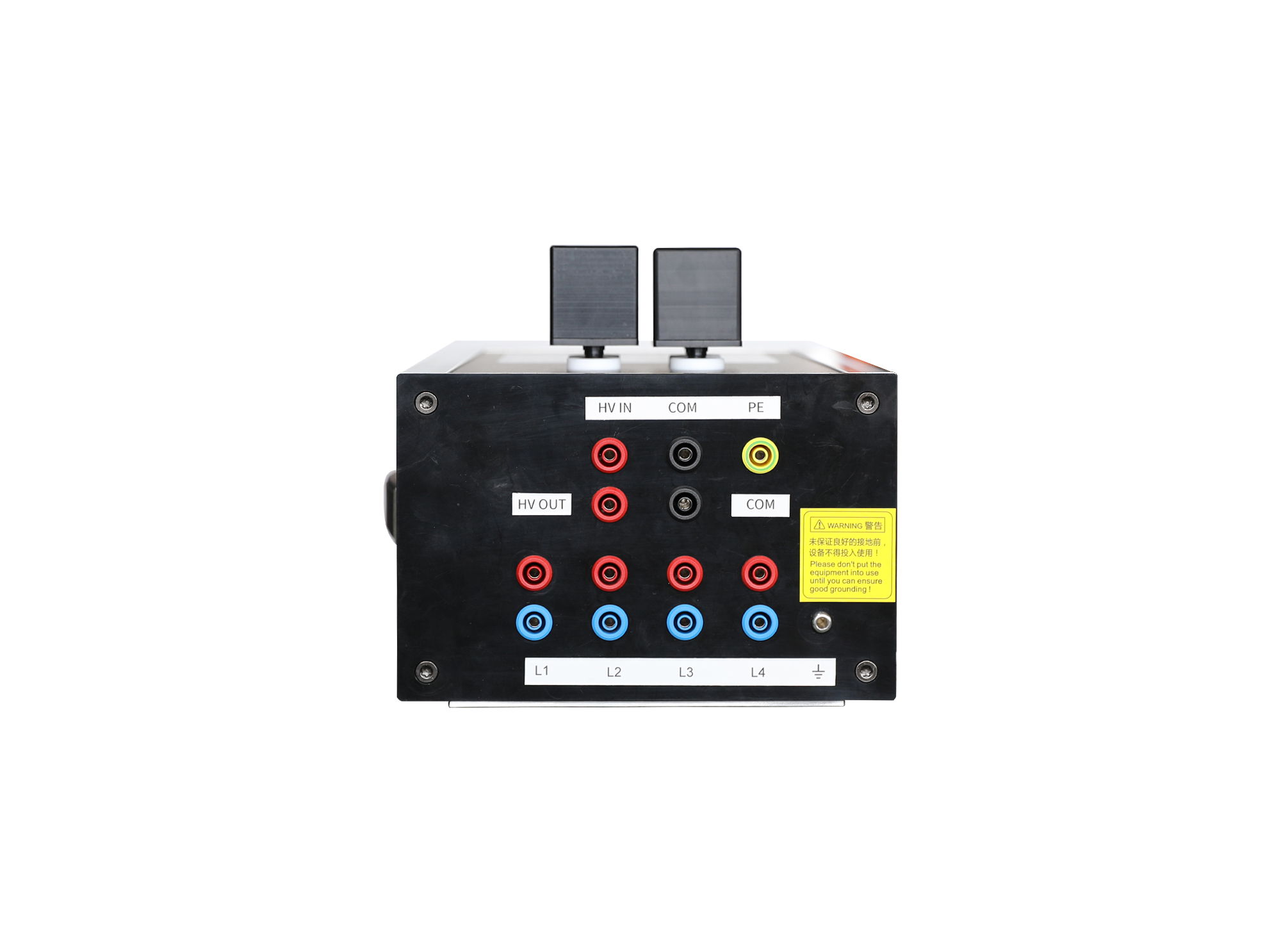

> All ports adopt 4 mm banana ports

> Coupling Waveforms are 1.2/50 μs, 8/20 μs; 10/700, 5/320 μs, 4/300 μs

> Unshielded 1/2/3/4-line; Line-to-Line / Line-to-Ground
