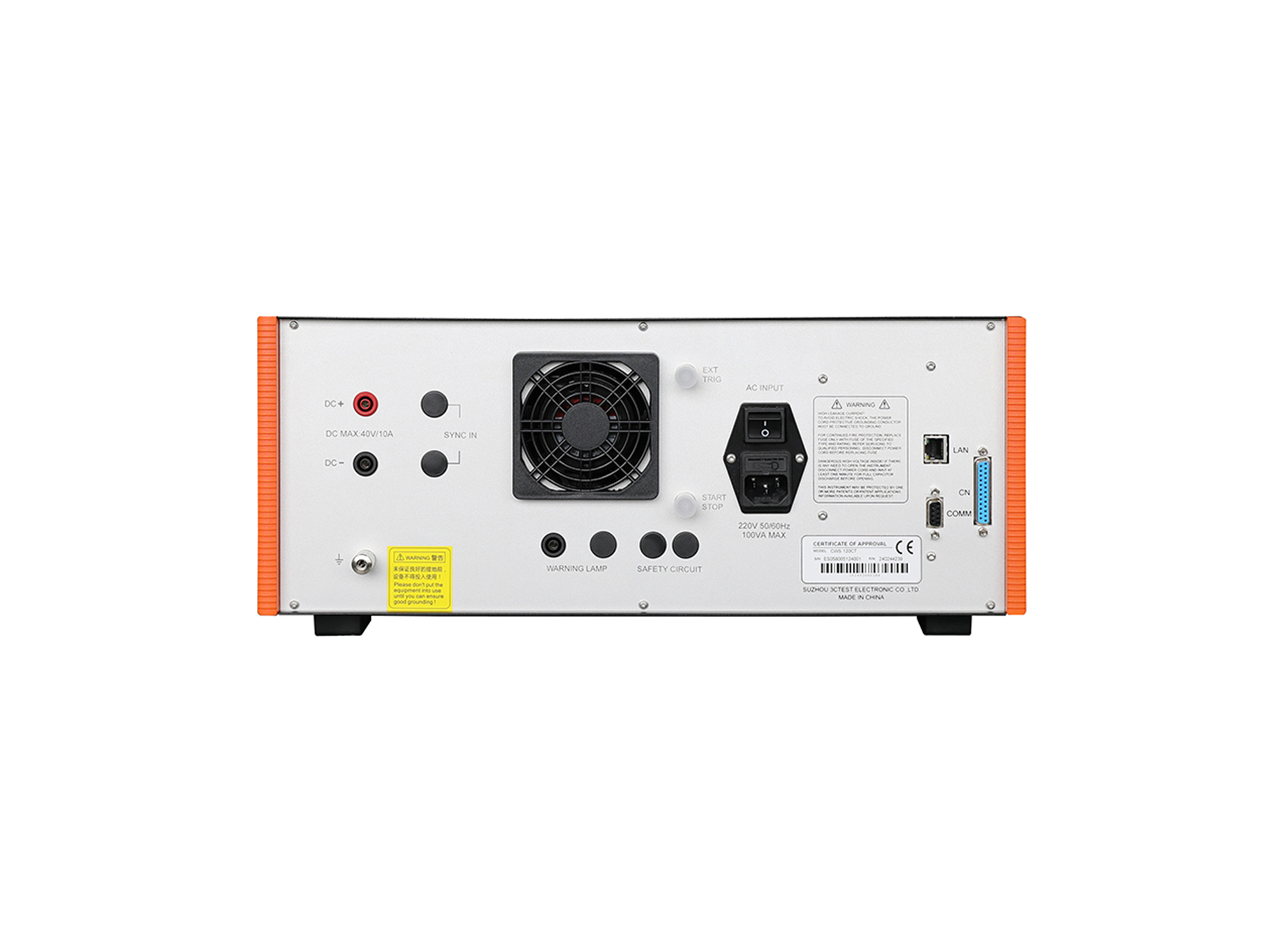

Low Voltage Combination Wave Lightning Surge Simulator

CWS 120CT

The CWS 120CT is specially designed for simulating low voltage surge pulse disturbances phenomenon, which can be used in surge protection device (TVS tube, TSPDs, SIDAC, surge suppressor and wafer or package level) immunity test. Its output voltage can be adjustable from 1 V to 1,200 V, which totally meet the test requirement of IEC/EN 61000-4-5 and GB/T 17626.5.

The product adopts 3-rd generation control platform and features high system integration, intelligent control and easy operation.

> 5.7-inch color touch screen front panel operation

> Test voltage 1 V ~ 1,200 V

> Standard source output impedance: 2 Ω, 12 Ω, 42 Ω

> Communication wave source output impedance: 15 Ω, 40 Ω

> Real-time display for peak voltage and peak current

> Built-in four coupling/decoupling networks

>EUT load capacity: 40 V DC, 10 A

> Test sequence function

> Ethernet and RJ45 interfaces, used for PC remote control and printing test reports
