Coupling/Decoupling Networks for Surge Immunity Test

SPN 4863T10

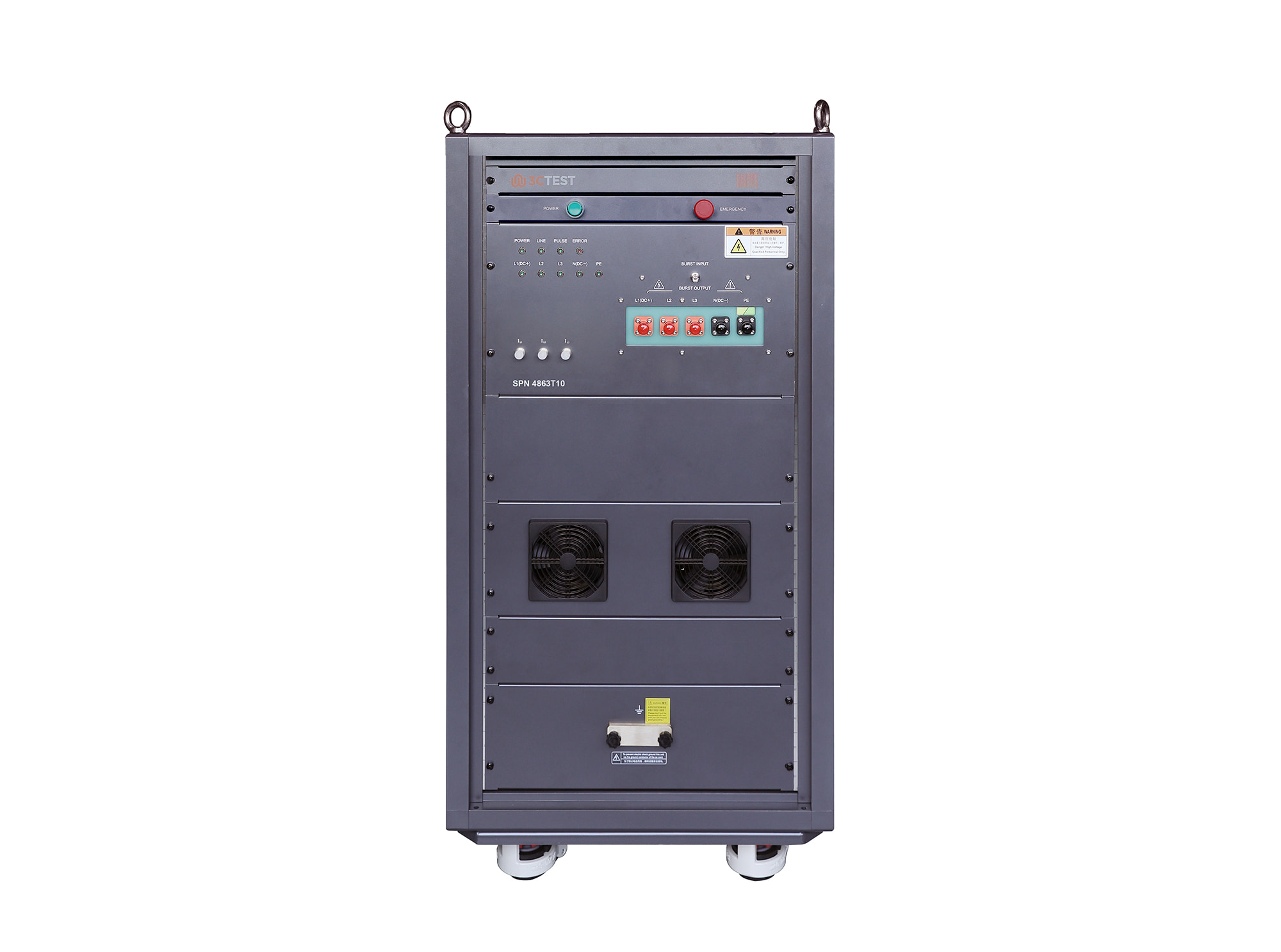

The SPN 4863T10 is an automatic coupling/decoupling network (CDN) designed for surge immunity testing in accordance with IEC 61000-4-5. It couples the specified disturbances onto the power lines of EUTs rated up to 480 V AC, 63 A three-phase or 500 V DC, 63 A. The CDN is compatible with 3CTEST CCS, CWS, and RWS series generators.

> Supports EUT power supplies up to 480 V AC (line-to-line) or 500 V DC

> EUT current capacity 0 ~ 63 A

> Surge coupling voltage up to 10.0 kV, current up to 5 kA

> Automatic selection of coupling paths and phase synchronization

> Integrated EUT overcurrent protection

> LED indication of the active pulse coupling path

> Integrated emergency stop button for enhanced safety
