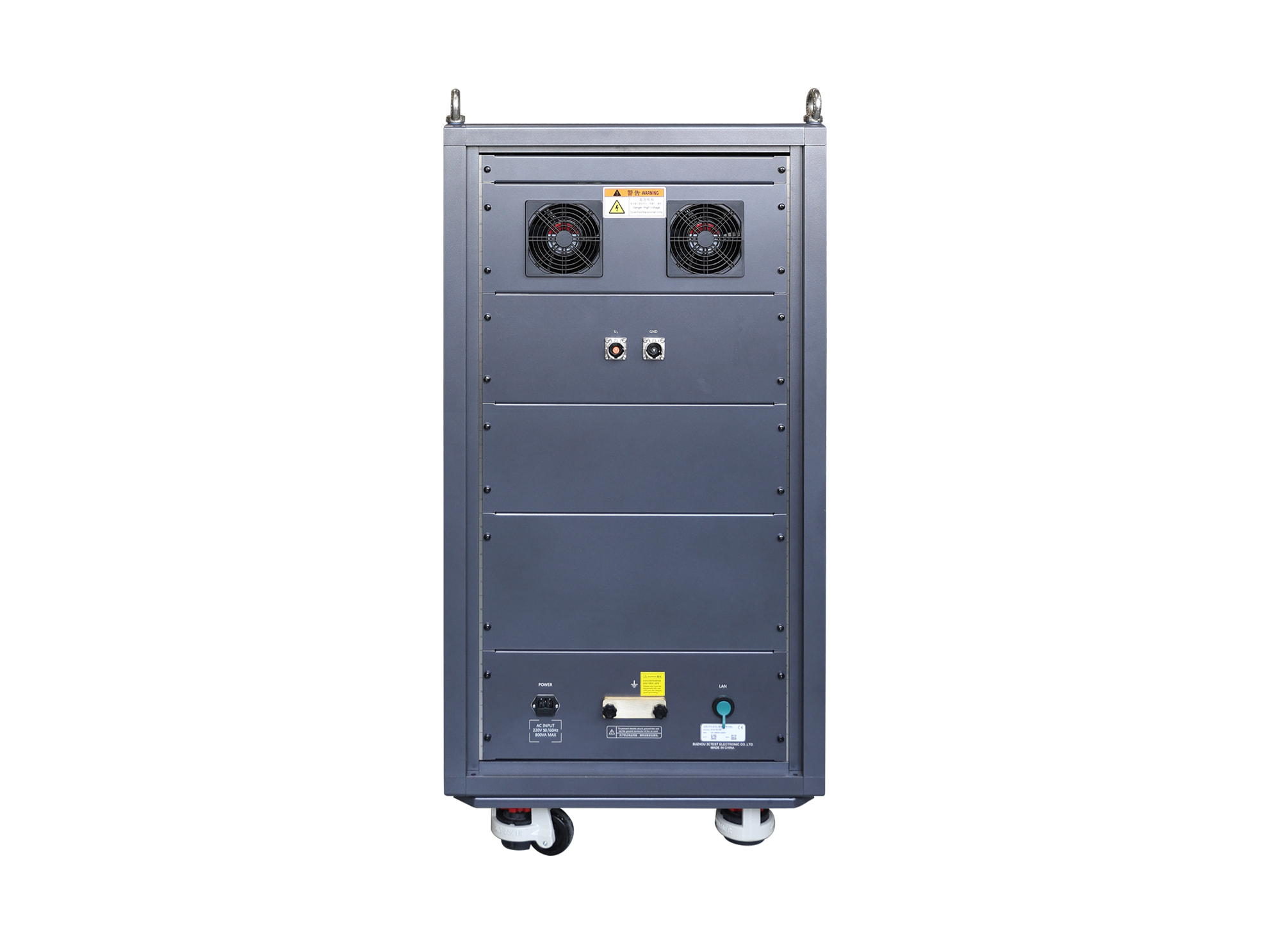

Short-Circuit Fault Simulator

BOB 50C50

The BOB 50C50 Short-Circuit Fault Simulator is designed for short-circuit testing of signal lines and load circuits, in compliance with the short-circuit test requirements of ISO 16750-2 and ISO 21780. It uses high-voltage, high-power relays, with a maximum load capacity of 60 V DC and 50 A per channel. Higher load currents can be customized.

Test Setup

① PC software AutoLab

② Four-Quadrant Power Supply Voltage Variation Simulator APS Series

③ Load Dump Pulse Simulator LDS Series

④ Power Network Simulator PNS Series

⑤ Automotive Power Failure Simulator PFS Series

⑥ Short-Circuit Fault Simulator BOB 50C50

⑦ Signal/Data Line Failure Simulator DFS Series

⑧ Power Network Simulator PNS Series

⑨ Ground Offset Simulator GOS Series

Equipment Connection

① PC software AutoLab

② Four-Quadrant Power Supply Voltage Variation Simulator APS Series

③ Short-Circuit Fault Simulator BOB 50C50

> 5.7-inch color touchscreen front-panel operation

> Signal-channel maximum load capacity DC 60 V, 50 A

> Short-circuit line impedance ≤20 mΩ

> Supports 50 test channels with built-in test sequence function for flexible testing

> Support single short-circuit mode and multi short-circuit mode

> Supports insulation failure and wire contact short circuit simulations

> Support current, voltage monitoring and protection

> Supports indicator lights for displaying line test status

> Emergency stop automatically disconnects the DUT and power supply
