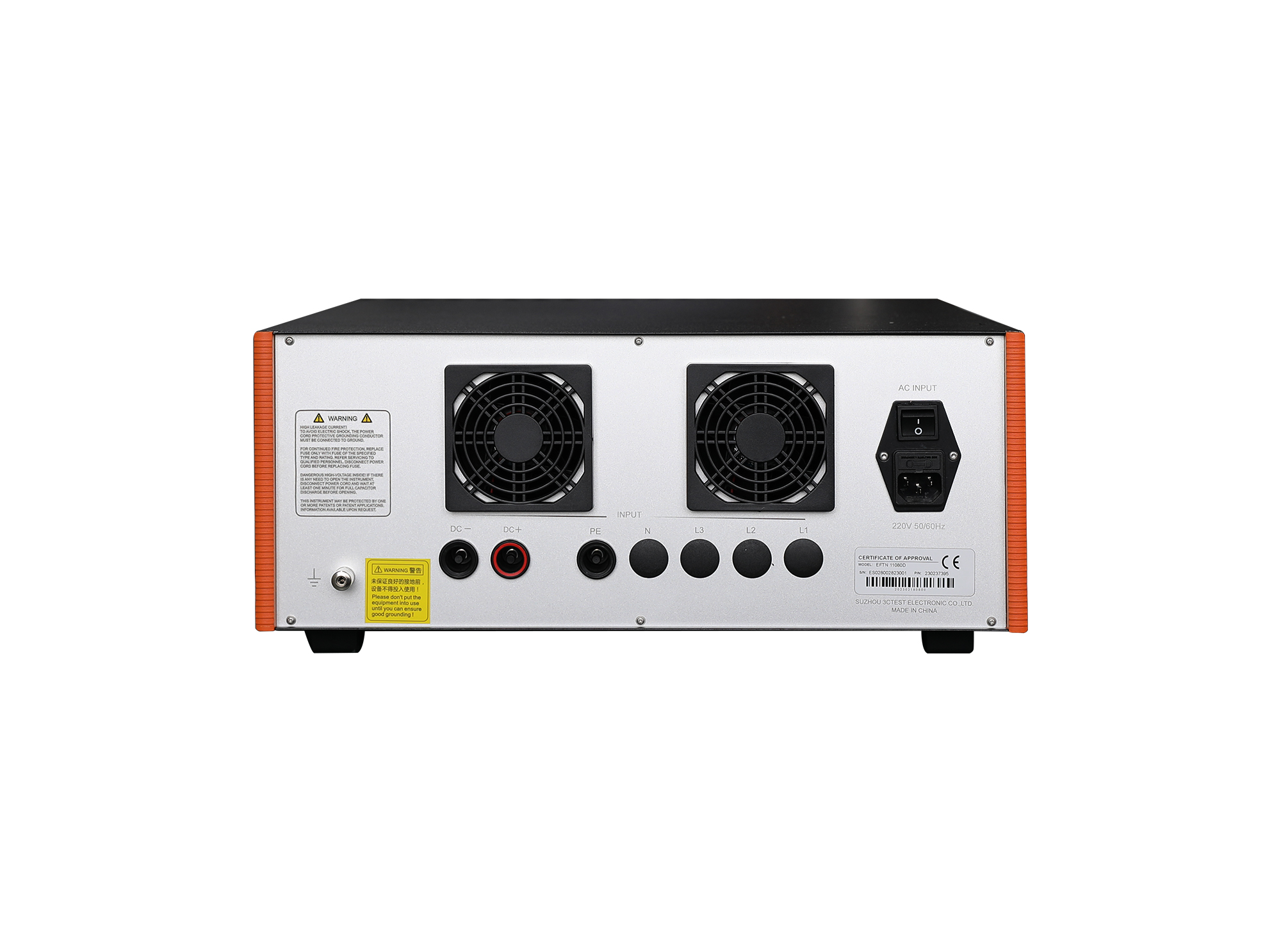

  • EFT/Burst Coupling/Decoupling Network_EFTN 11080D
  • EFT/Burst Coupling/Decoupling Network_EFTN 11080D

EFT/Burst Coupling/Decoupling Network
EFTN 11080D

The EFTN 11080D EFT/Burst Coupling/Decoupling Network is a manual CDN compliant with IEC 61000-4-4 requirements.

Download Datasheet
Request a Quote Add to Compare Add to Quote List
Introduction

The EFTN 11080D EFT/Burst Coupling/Decoupling Network is a manual CDN compliant with IEC 61000-4-4 requirements. It offers high reliability, stable performance, and easy operation, with a maximum load capacity of 1,100 V DC and 80 A.

Features

> Max. EUT supply voltage 1,100 V AC

> Supply current capability up to 80 A

> Max. pulse voltage 4 kV

> Manual selection coupling/decoupling path

Standards
IEC Standards
GB/T Standards
EN Standards
Specification
Technical Parameters
EUT Supply Voltage1,100 V DC
EUT CurrentMax. 80 A cont.
EFT/Burst Peak VoltageMax. 4 kV
Coupling PathAny coupling combination of DC+, DC- and PE
Coupling Switching ModeManual Switching
Coupling Capacitor33 nF
Residual Pulse Voltage at EUT Injection Port≤ 10% of the applied test pulse voltage
Grounding MethodGrounding wire
EFT Injection PortCoaxial cable
EFT Injection MethodSingle-line or multi-line simultaneous injection
General Parameters
Accessories
Standard Accessories

Test Cable, EUT Power Injection Cable, Grounding Wire, Coaxial Cable, User Manual

Optional Accessories
