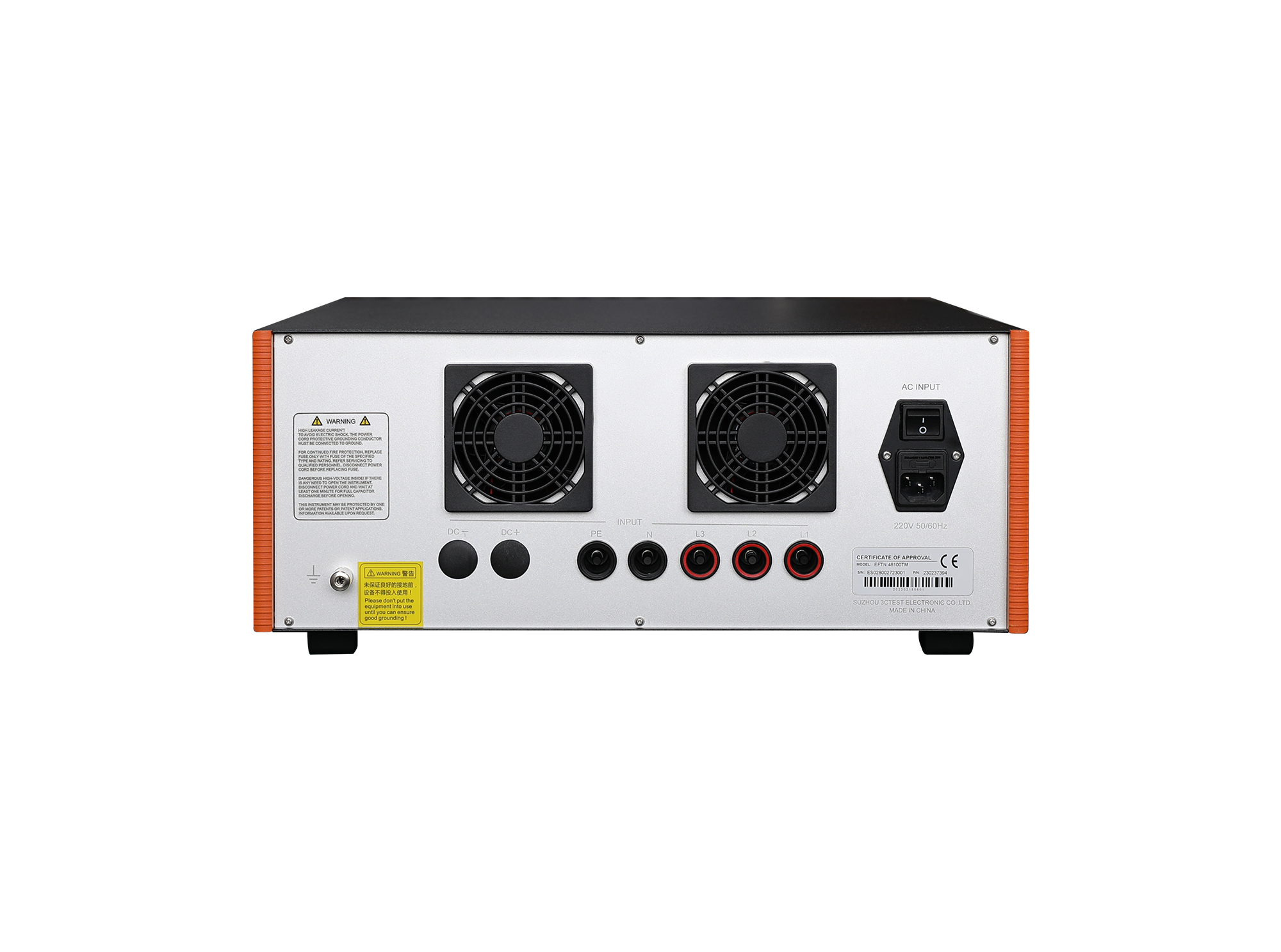

EFT/Burst Coupling/Decoupling Network

EFTN 48100TM

The EFTN 48100TM EFT/Burst Coupling/Decoupling Network is a manual CDN compliant with IEC 61000-4-4 requirements. It offers high reliability, stable performance, and easy operation, with a maximum load capacity of 480 V DC and 100 A.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

Features

> Max. EUT supply voltage 480 V AC

> Supply current capability up to 100 A

> Max. pulse voltage 4 kV

> Manual selection coupling/decoupling path

Standards

IEC Standards

GB/T Standards

GB/T 17626.4

EN Standards

EN 61000-4-4

Application Areas

Specification

Technical Parameters

EUT Supply Voltage	480 V DC
EUT Current	Max. 100 A cont.
EFT/Burst Peak Voltage	Max. 4 kV
Coupling Path	Any coupling combination of L1, L2, L3, N and PE
Coupling Switching Mode	Manual Switching
Coupling Capacitor	33 nF
Residual Pulse Voltage at EUT Injection Port	≤ 10% of the applied test pulse voltage
Grounding Method	Grounding wire
EFT Injection Port	Coaxial cable
EFT Injection Method	Single-line or multi-line simultaneous injection

General Parameters

Accessories

Standard Accessories

Test Cable, EUT Power Injection Cable, Grounding Wire, Coaxial Cable, User Manual

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: EFT/Burst Coupling/Decoupling Network Next: HV High-Power EFT/Burst Coupling/Decoupling Network Back to list

Dimension	4U rack, 450192610 mm
Weight	Approx. 35 kg
Ambient Temperature	15 ℃ ~ 35 ℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa

1	EFT/Burst Calibration Kit	Model: EFT-CA-KIT(SHV) TFB 500(SHV): Impedance 50 Ω, 500:1 TFB 1000(SHV): Impedance 1,000 Ω, 1,000:1
2	Coaxial Adaptor	Model: BNC-FFM Calibration adaptor
3	HV RF Connector	Model: SHV-BNC-JJ
