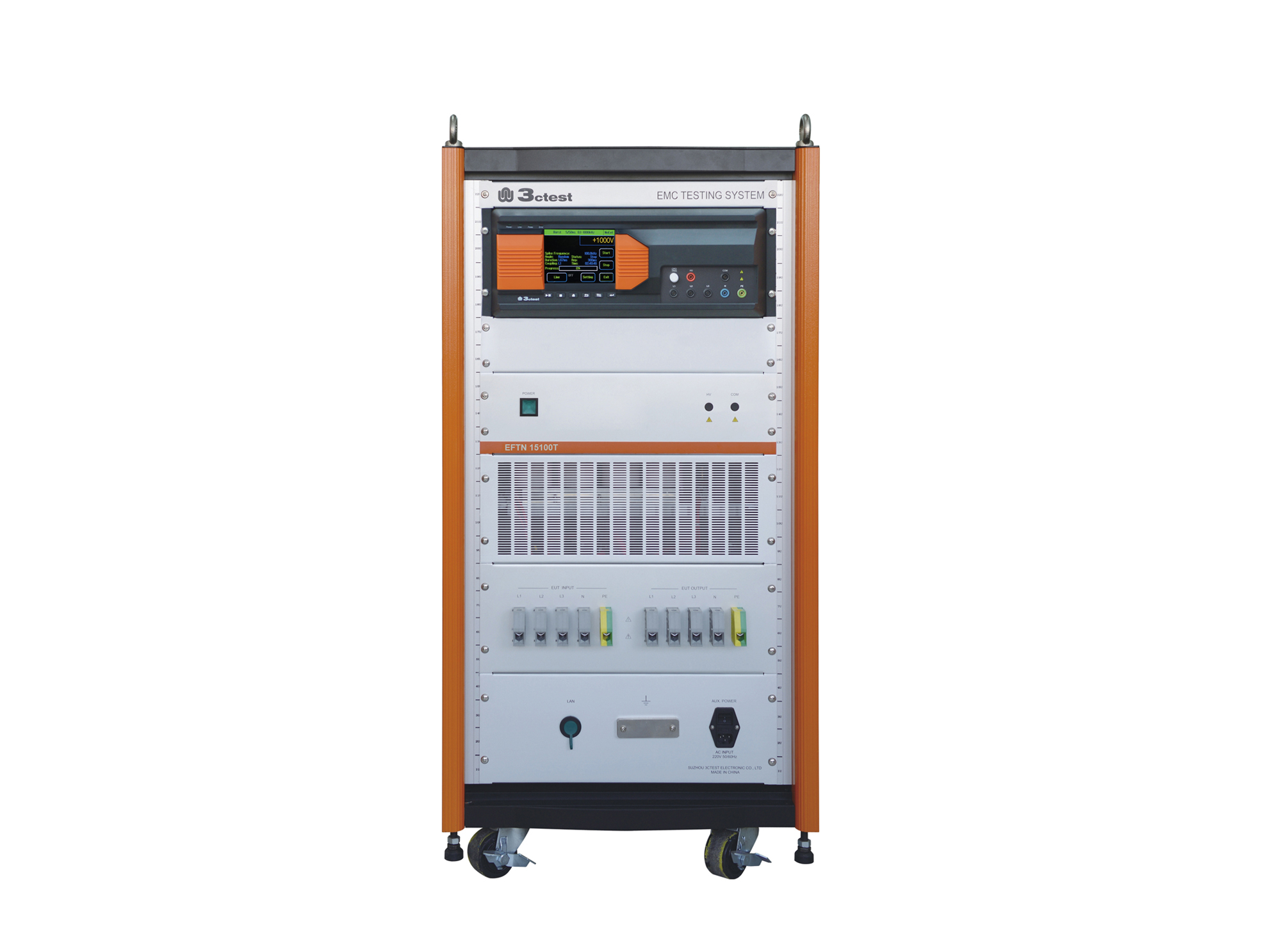

HV High-Power EFT/Burst Coupling/Decoupling Network

EFTN 15100T

The EFTN 15100T HV High-Power EFT/Burst Coupling/Decoupling Network complies with IEC/EN 61000-4-4 and supports CE and CCC certification requirements.

Designed for new energy test systems and high-power load testing, it provides reliable performance, stable operation, and ease of use. The CDN supports EUT load capabilities up to 1,500 V DC / 100 A and 700 V AC / 100 A (three-phase five-wire), with customized voltage and current ratings available upon request.

> EUT DC load capacity 1,500 V DC, 100 A

> EUT AC load capacity 700 V AC, 100 A, three-phase, five-wire

> Automatic EUT power switching

> Scheduled setting of test parameters, including test voltage, polarity, and phase synchronization angle, enabling fully automatic network switching

> Phase angle superposition of any combination of lines
