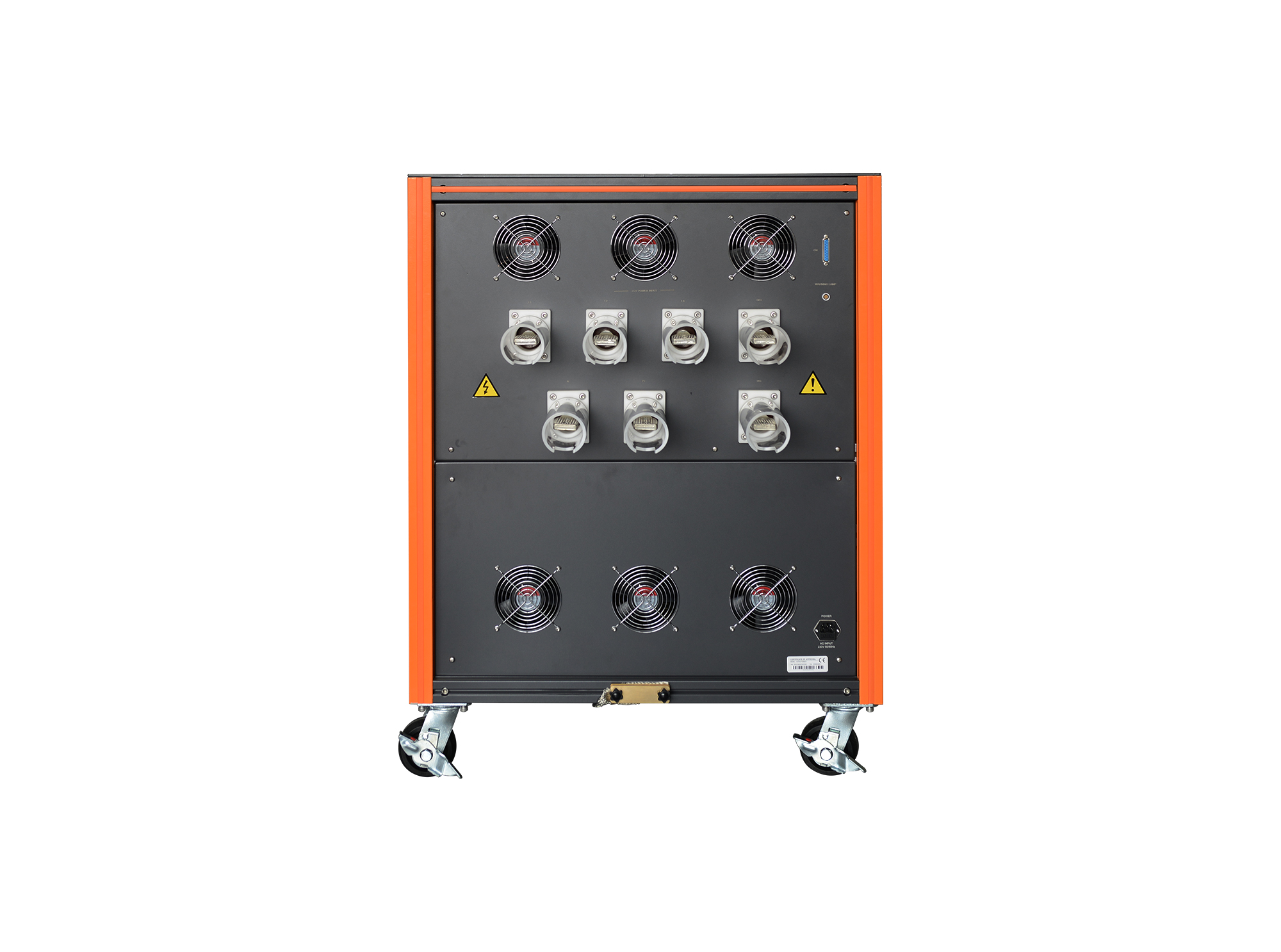

HV High-Power EFT/Burst Coupling/Decoupling Network

EFTN 70300T

The EFTN 70300T HV High-Power EFT/Burst Coupling/Decoupling Network complies with IEC/EN 61000-4-4 and supports CE and CCC certification requirements.

Designed for new energy test systems and high-power load testing, it provides reliable performance, stable operation, and ease of use. It supports EUT load capacities up to 1,500 V DC / 300 A and 700 V AC / 300 A, three-phase, five-wire. Customized EUT voltage and current ratings are available upon request.

> EUT DC load capacity 1,500 V DC, 300 A

> EUT AC load capacity 700 V AC, 300 A, three-phase, five-wire

> Max. output pulse voltage 7 kV

> Scheduled setting of test parameters, including test voltage, polarity, and phase synchronization angle, enabling fully automatic network switching

> Phase angle superposition of any combination of lines
