Calibration Kit for Capacitive Coupling Clamp

CA-CCC

The CA-CCC transducer plate is applied for the calibration of capacitive coupling clamp. It is designed in accordance with domestic and international standards including IEC 61000-4-4 and GB/T 17626.4. It senses pulses coupled by the capacitive coupling clamp. The compliance of the capacitive coupling clamp can be judged by measuring pulse waveform parameters on the transducer plate.

3ctest has developed a calibration fixture kit compliant with the latest standards.

The calibration kit includes:

— CA-CCC：Transducer Plate

— TFB 500：50 Ω attenuator

— AD-CA-CCC： Adapter

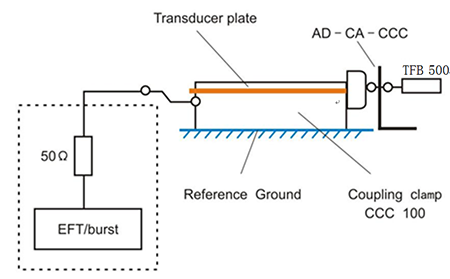

The CA-CCC transducer plate is placed inside the CCC 100 capacitive coupling clamp and connected to the TFB 500 attenuator via the AD-CA-CCC adapter.
