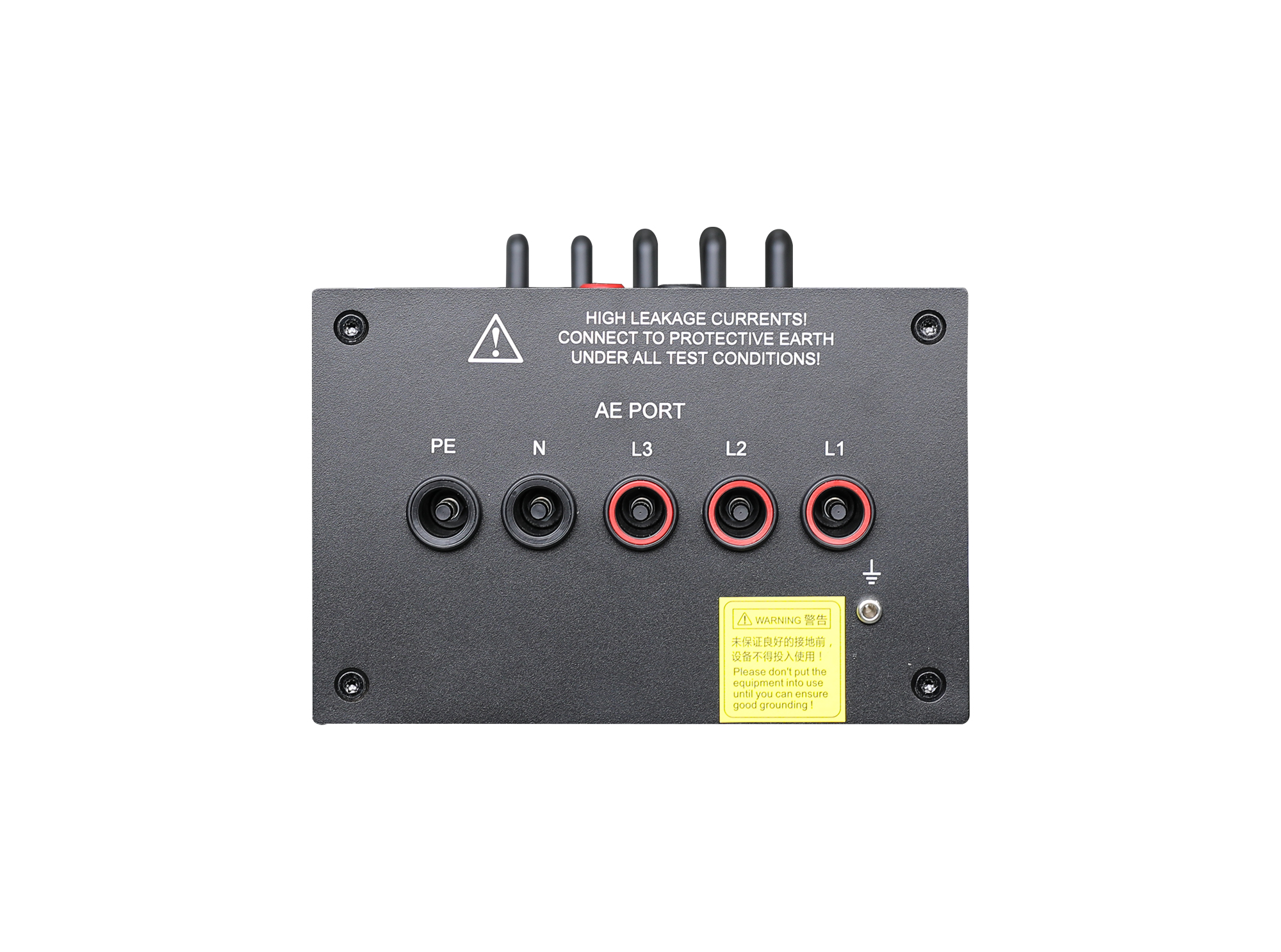

Common-mode Conducted Immunity Coupling Network

CN 416M5-100

The CN 416M5-100 Coupling Network complies with IEC 61000-4-16, GB/T 17626.16 and other domestic and international standards. It is applicable to common-mode conducted immunity tests on 3-phase 5-wire power lines within the frequency range of 0 Hz to 150 kHz.

The CN 416M5-100 supports CW signals across a wide frequency range of DC/15 Hz ~ 150 kHz. The max. coupling voltage is 300 V (rms), which covers standard test scenarios and meets stringent test requirements. It ensures stable data transmission during tests, accurately reproduces the actual communication status of devices, and guarantees accurate and repeatable test results.

Suitable for communication, medical, railway, aerospace, new energy and other fields, accelerating EMC certification.

> High voltage and high current rating for industrial use

> Built-in quick shorting switch, optimized for DC coupling with easy operation

> All ports adopt coaxial design for easy and efficient signal injection and device connection.
