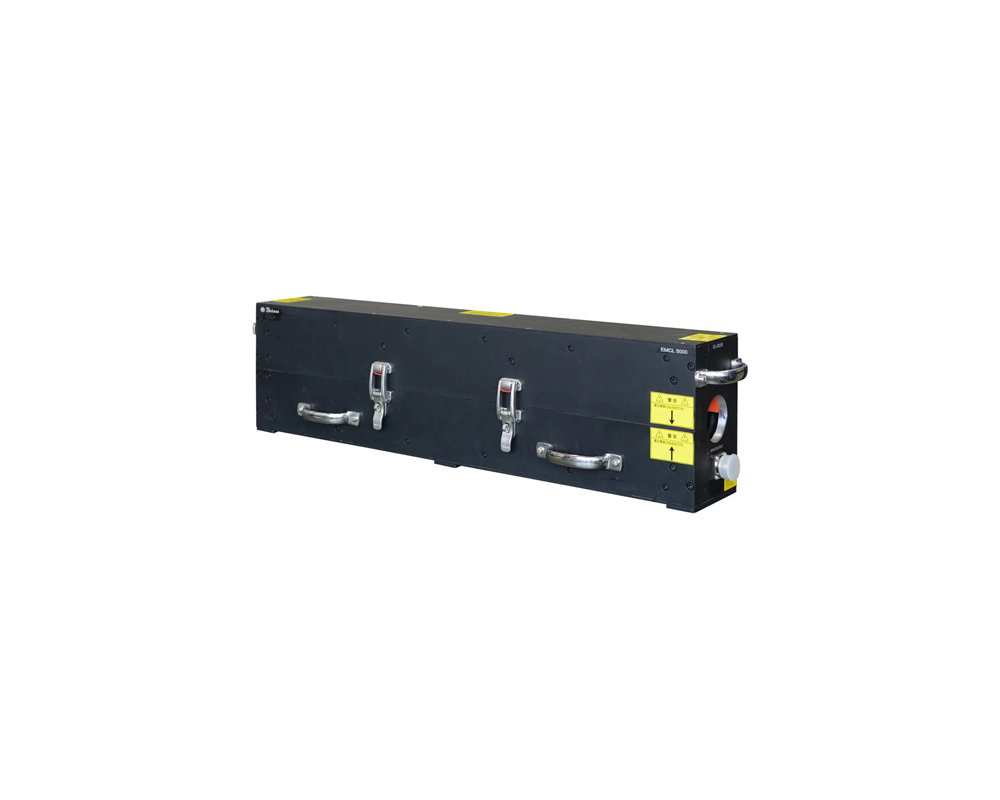

Electromagnetic Coupling Clamp

EMCL 5000

The EMCL 5000 Electromagnetic Coupling Clamp is a high-current coupling device. It delivers time-harmonic signal currents or pulse signal currents to the EUT via magnetic coupling, featuring distortion-free waveform and physical isolation from the EUT.

Designed to meet the requirements for high-current injection tests specified in standards including MIL-STD-188-125-1/-2 “High-Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time-Urgent Missions” and GJB 8848 Test Methods for System Electromagnetic Environmental Effects, it is widely used for EMC conducted susceptibility (immunity) tests.

S21 Curve
