Electromagnetic Clamp

EM CL 100

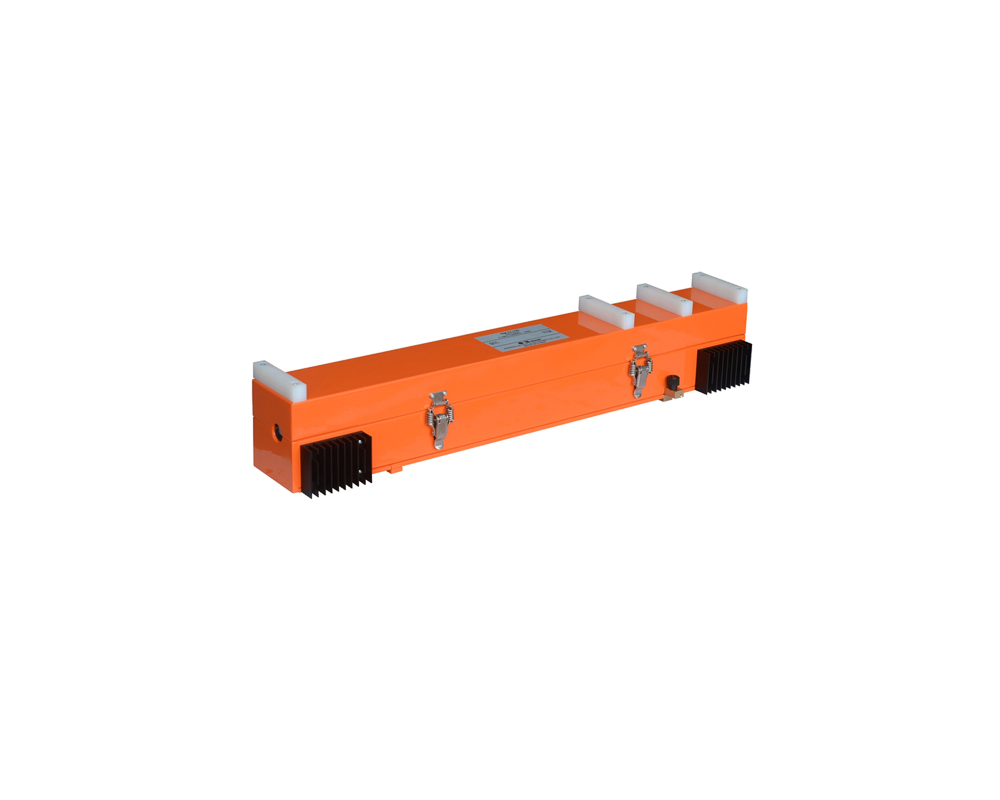

The EM CL100 electromagnetic clamp complies with the requirements of IEC 61000-4-6. It is a dedicated device designed to test the immunity of cable assemblies to conducted interference induced by radio-frequency fields.

The clamp injects interference signals into the cable assembly within the slot, allowing the EUT to be tested under the conditions specified by the international standard. Calibration of the electromagnetic clamp requires the use of the calibration accessories included in the kit, and the clamp must be calibrated in accordance with the standard.

PC-Based Test Connection Schematic

> Maximum injection power 100 VA (5 min);

> Inject Frequency 0.1 MHz ~ 1,000 MHz;

> Coupling / decoupling direction coefficient >10 dB (>0.1 MHz);

> Testable cable diameter < 18 mm
