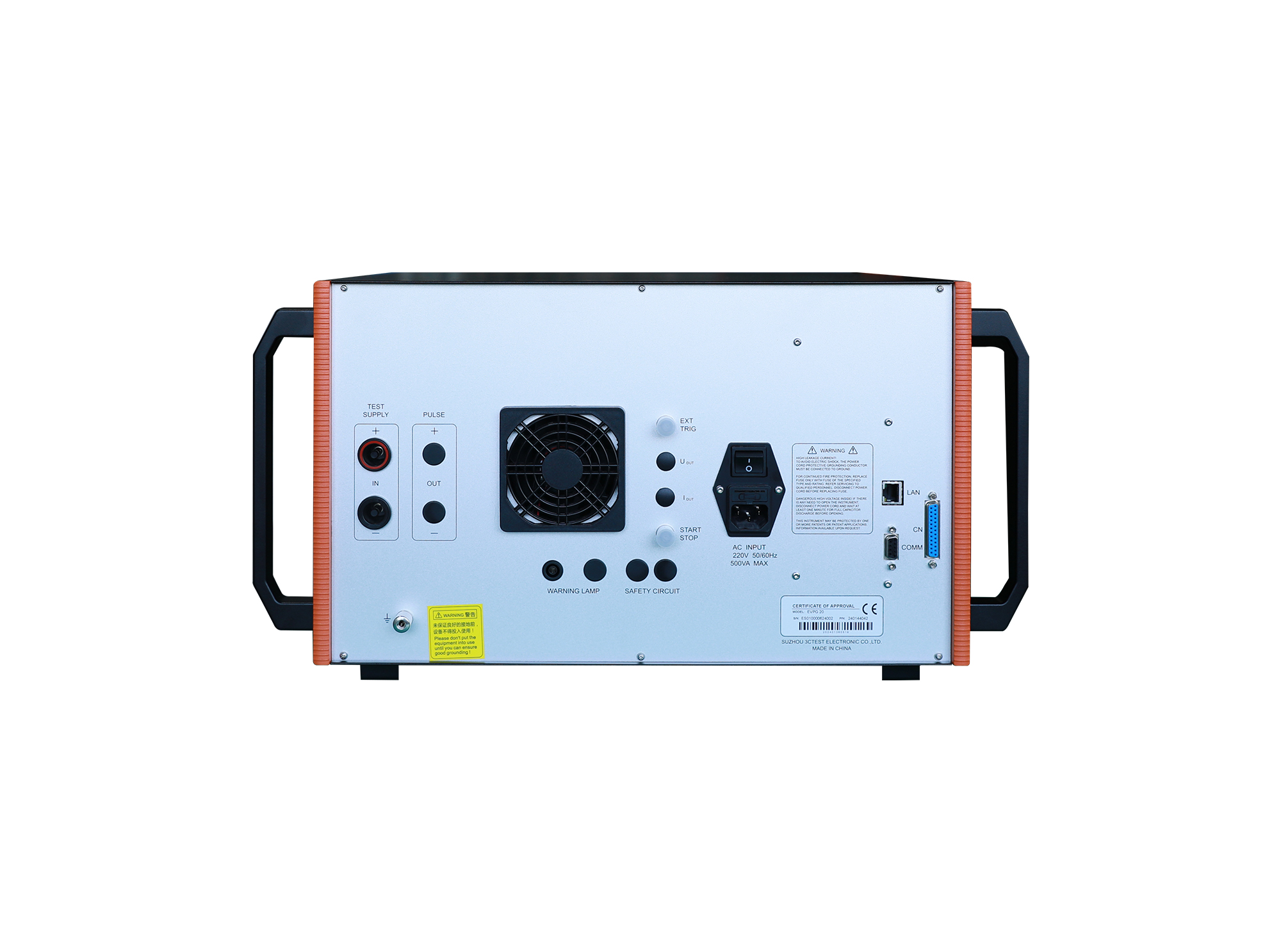

Electro-mobile Vehicles Pulse Disturbance Generator

EVPG 20

The EVPG 20 Electro-mobile Vehicles Pulse Disturbance Generator is designed as per EHV-16 HV pulse specified in VW 80300-02, which is used in vehicle HV electronic components test.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The EVPG 20 Electro-mobile Vehicles Pulse Disturbance Generator is designed as per EHV-16 HV pulse specified in VW 80300-02, which is used in vehicle HV electronic components test. It includes high-voltage pulse waveforms for two test items: Test Case 1 and Test Case 2.

The EVPG 20 has 5.7-inch color touch screen for operation and also can be controlled by PC software.

Features

> 5.7-inch color touch screen front panel operation

> Built-in high-voltage pulse waveforms

> Built-in fault alarm function

> Overcurrent protection

> EUT current acquisition and display function

Standards

Other Standards

VW 80300

Application Areas

Automotive Electronics

Specification

Technical Parameters

VW 80300_2021 (EHV-16)	Test case 1	Test case 2
Pulse Width	1 μs ~ 20 μs，±10%	1 μs ~ 5 μs，±10%
Waveform Feature	Approximate square wave
Pulse Voltage Amplitude	20 V ~ 200 V, ±10%
Calibration Voltage Amplitude	75 V ~ 200 V, ±10%
Voltage Slew Rate (0% ~ 100%)	＞1 V/ns
Nominal Output Impedance	0.16 Ω
Pulse Interval	10 ~ 100 ms	0.5 ~ 10 ms
Pulse Polarity	Positive, negative, alternative
Number of Pulses	1 ~ 100
Pulse Interval	0.1 s ~ 99 s
Number of Test Groups	1 ~ 100
Trigger Mode	Manual, Automatic, External Trigger
Coupling Mode	100 μF coupling capacitor per line
DUT Load	DC 1000 V / 100 A (customizable)
Input / Output Terminals	16 A banana terminals, 100 A solid terminals
Remarks: The maximum load capacity is 100 A. Higher need to be customized.

General Parameters

Accessories

Standard Accessories

Power Line, Fuse, Testing Wire, Flat Grounding Wire, User Manual

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: HV Artificial Network Next: Electric Vehicle HV Electrical Performance Comprehensive Tester Back to list

Working Power	AC 220 V, ± 10%, 50 Hz / 60 Hz
Fuse	6 A
Max. Power Consumption	300 W
Grounding Method	Flat grounding wire
Dimension	6U rack, 540 (W) 280 (H) 620 (D) mm
Weight	Approx. 69 kg
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%, RH (no condensation)
Atmospheric Pressure	86 kPa ~ 106 kPa
