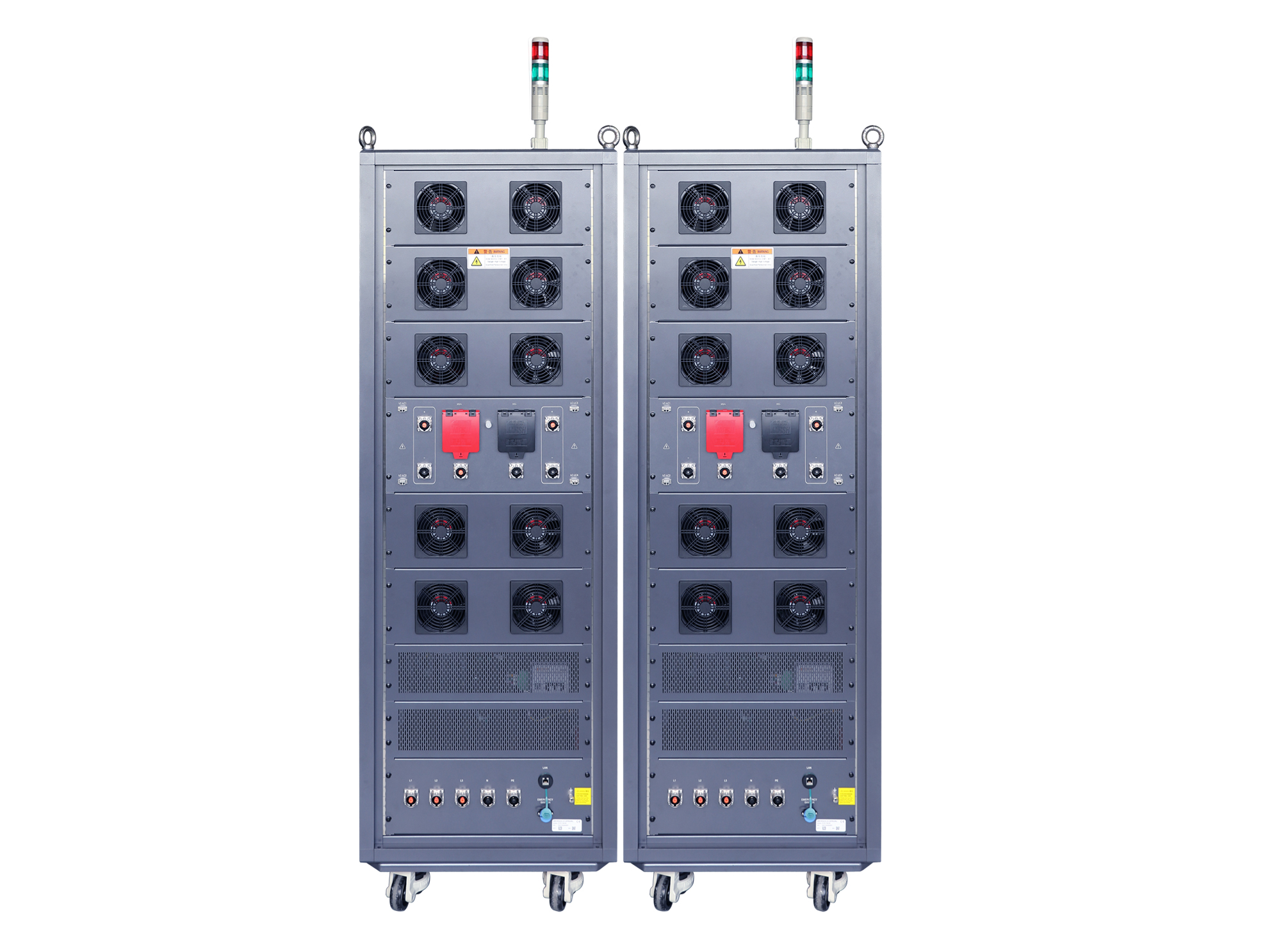

Electric Vehicle HV Electrical Performance Comprehensive Tester

EVTS 150C60

EVTS 150C60 Electric Vehicle HV Electrical Performance Comprehensive Tester complies with ISO 21498-2, LV 123, VW 80300 and LV 123 standards.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

EVTS 150C60 Electric Vehicle HV Electrical Performance Comprehensive Tester complies with ISO 21498-2, LV 123, VW 80300 and LV 123 standards. It is applicable to tests on DC voltage class B electrical circuits and components of electric vehicles, as well as tests for HV functional components. Besides, it can meet the HV component test requirements of other vehicle manufacturers including Mercedes-Benz and BMW.

The EVTS 150C60 is a bidirectional power supply that can operate as either a power source or an electronic load. It delivers a Max. output of DC 1,500 V / 600 A with a peak power of 300 kW. The whole test system, centrally controlled by AutoLab software (this product requires the software for operation), can improve system scalability and test efficiency. Test results support one-click saving, printing and internal enterprise sharing.

System Setup

① PC supporting test software: AutoLab

② EV HV Electrical Performance Comprehensive Tester: EVTS Series

③ HV Artificial Network: AN Series / High-Voltage Test Device: HTS Series

④ HV DC Short-circuit Simulator: HDSS Series

⑤ Wide-Range Adjustable Pre-charging Circuit Test Device: RC Series

⑥ Ripple Signal Generator: RSG Series

⑦ Coupling Transformer: TPT Series

⑧ EV Load Dump Simulator: EVDG 20 / Electric Vehicle Pulse Interference Generator: EVPG 20 / EV Pulse Interference Simulator: EVPS Series

Features

> Voltage slope control greater than 250 V/ms

> Bidirectional power supply can operate as either a power source or an electronic load

> Max. output voltage DC 1,500 V

> Max. output current 600 A (higher current available on request)

> Max. output power 300 kW (higher frequency available on request)

> Integrated compact design, stable and easy to operate

> Ethernet RJ45 for PC remote control and waveform editing

> Meets ISO 21498-2, VW 80300 standards

> Can simulate various complex electrical environments of HV components of new energy vehicles in practical use

Standards

ISO Standards

ISO 21498-2

Other Standards

Application Areas

Technical Parameters

DC Voltage	0 ~ 1,500 V
Max. Current	600 A
Max. Power	300 kW
Power Module	10 unit (30 kW / 60 A per unit)
Overvoltage Protection Range	0 ~ 1,650 V
Overcurrent Protection Range	0 ~ 660 A
Overpower Protection Range	0 ~ 330 kW
Waveform	Sine wave, Triangle wave, Voltage Slope wave
Changes In Amplitude and Position	Static, Linear
Max. Number of Supported Segments	100
Input/Output Terminals	300 A solid terminal and 600 A HV shielded terminal
Notes: Current and power can be customized upon requests; power modules support parallel operation with 1-master-N-slave control.

General Parameters

Accessories

Standard Accessories

User Manual, Test Cables, Power Cord, Flat Grounding Wire

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Electro-mobile Vehicles Pulse Disturbance Generator Next: Electric Vehicle HV Electrical Performance Comprehensive Tester Back to list

Working Power	AC 380 V，50 Hz/60 Hz
Grounding Method	Flat grounding wire
Dimensions	600 (W)1,850 (H)800 (D) mm
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
Weight (incl. Supply)	Approx. 700 kg

1	Automotive Immunity Test Software	Model: AutoLab > Compatible with Windows 7/8/10/11 > Easy to operate with a clean, intuitive UI. > Built-in standard test library supports quick custom test programming, meeting ISO 21498-2 and VW 80300 test standards.
2	HV Artificial Network	Model: AN Series Standards: ISO 21498, VW 80300 Input voltage range: 0 ~ 1,500 V DC DC current capacity: Max. 800 A (higher current available on request)
2	HV Test Device	Model: HTS Series Standards: VW 80300 Input voltage: 0 ~ 1,500 V DC DC current capacity: 0 mΩ/50 mΩ 300 A, 100 mΩ 200 A, 200 mΩ 100 A
3	HV DC Short-circuit Simulator	Model: HDSS Series Standard: ISO 21498 Clause 6.12 Input voltage: 0 ~ 1,500 V DC Sustained short-circuit current: 500 A (higher current available on request)
4	Wide-Range Adjustable Pre-charge Circuit Test Device	Model: RC Series Standard: VW 80300 EHV-04 Input voltage: 0 ~ 1,500 V DC Capacitance: 10 μF ~ 1,200 μF DC current capacity: Max. 300 A (higher current available on request)
5	Ripple Signal Generator	Model: RSG Series Standards: ISO 21498, VW 80300 Max. open-circuit output voltage: 160 Vpp Max. output current: 200 App Frequency: 10 Hz ~ 300 kHz
6	Coupling Transformer	Model: TPT Series Standards: ISO 21498, VW 80300 Max. coupling voltage: 160 Vpp Max. coupling current: 400 App DC current capacity: Max. 1,000 A (higher current available on request)
7	EV Load Dump Simulator	Model: EVDG 20 Standard: VW 80300 EHV-10 Pulse Voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 100 A (higher current available on request)
	EV Pulse Interference Generator	Model: EVPG 20 Standard: VW 80300 EHV-16 Pulse Voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 100 A (higher current available on request)
	EV Pulse Interference Simulator	Model: EVPS Series Standards: VW 80300 EHV-10 & EHV-16 Pulse voltage amplitude: 20 V ~ 200 V DC current capacity: Max. 300 A (higher current available on request)
