Wide-range Adjustable Pre-charging Test Device

RC 150C30

The RC 150C30 Wide-range Adjustable Pre-charging Test Device conforms to the EHV-04 pre-charging test specified in VW 80300.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The RC 150C30 Wide-range Adjustable Pre-charging Test Device conforms to the EHV-04 pre-charging test specified in VW 80300. The device is designed to verify the performance of pre-charging circuits in HV energy storage devices and HV components. Its max. test voltage is 1,500 V and max. test current is 300 A.

The RC 150C100 can be controlled by remote control software AutoLab, which enables users to carry out complete automated testing procedures conveniently.

Features

> 5.7-inch color touch screen front panel operation

> Max. voltage 1,500 V

> Support voltage and current monitoring

> Charge and discharge time monitoring

> Overcurrent protection setting range 1 A ~ 300 A

> Charging/discharging resistors and capacitors are automatically configured via touch screen to meet various test requirements of automakers

> High-precision resistors and capacitors ensure accurate measurement

Standards

Other Standards

Application Areas

Automotive Electronics

Specification

Technical Parameters

Max. Test Voltage	1,500 V
Max. Test Current	300 A
Capacitance	10 μF ~ 1,200 μF (accuracy: 2%, step: 10 μF）
Internal Resistor	0 Ω ~ 6 Ω (accuracy: 2%, step: 0.05 Ω)
Discharge Resistor	50 Ω ~ 1,200 Ω (accuracy: 2%, step10 Ω)
High Voltage (VES)	80% ~ 99% (step: 1%)
Hold Time (Th)	1 s ~ 9,999 s (step: 1 s)
End Voltage (VEND)	5 V ~ 20 V (step: 1 V)

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Grounding Wire, Fuses

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Automotive Power Failure Simulator Next: Wide-range Adjustable Pre-charging Test Device Back to list

Display Screen	5.7” TFT touch screen
Working Power	AC 220 V, ±10%，50/60 Hz, ±5%
Fuse	6 A
Max. Power Consumption	300 W
Communication Mode	Ethernet Lan
Pulse Trigger Mode	Auto
Safety Circuit	Stop working when pressing emergency
Failure Detection	LCD displays in front panel and stop work when failure occurs
Working Status Indication	LED indication in front panel
Grounding Method	Flat grounding wire
Dimension	22U rack, 600 mm(W) * 1,250(H) mm * 800 mm(D)
Weight	Approx. 256 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%

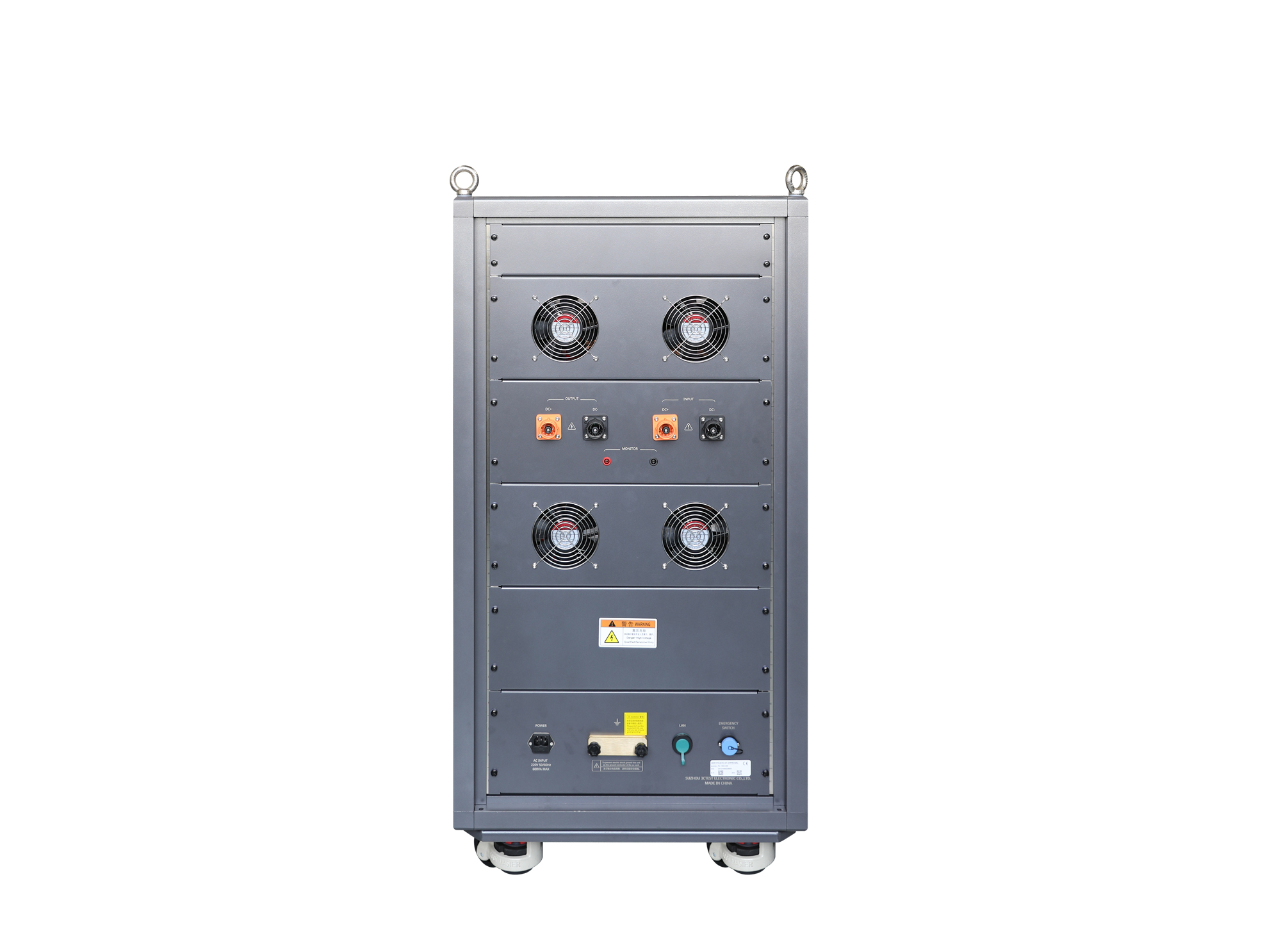

Wide-range Adjustable Pre-charging Test Device RC 150C30
