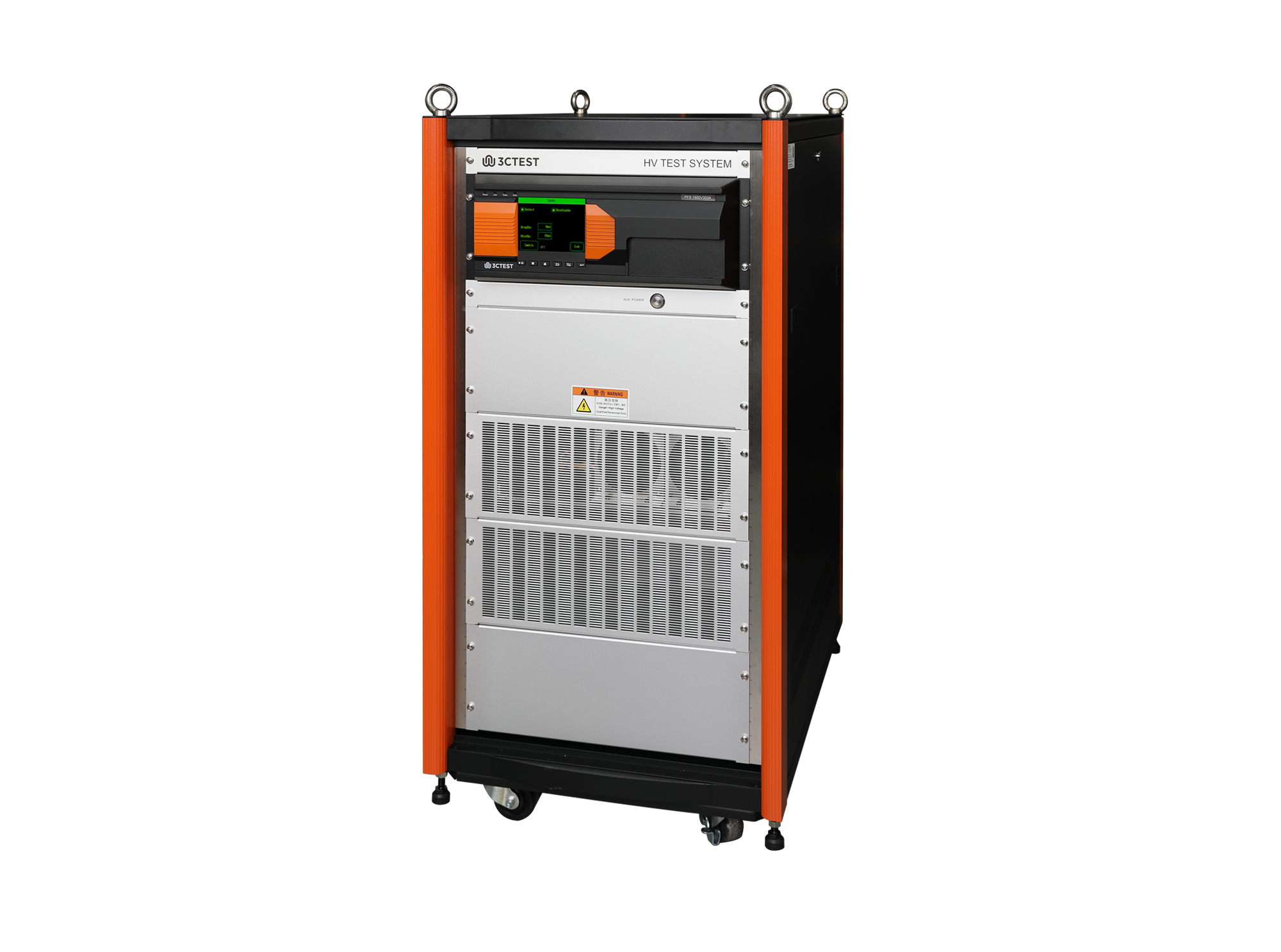

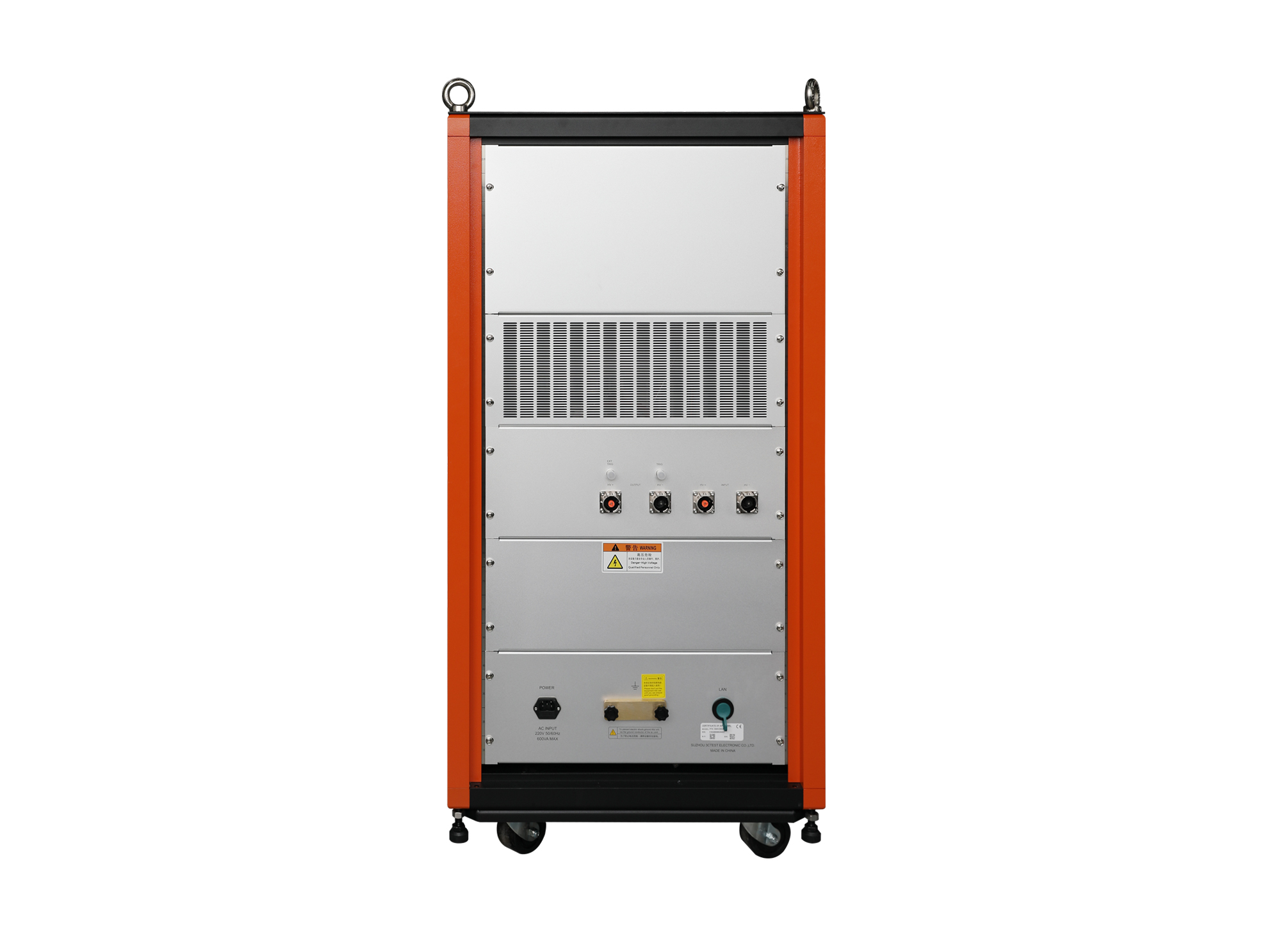

Automotive Power Failure Simulator

PFS 1500V300 A

PFS 1500 V 300 A vehicle Power Fault Simulator is designed for switching tests of high-voltage DC cables. Adopting the new-generation control platform, it is in accordance with TS_TG1-030-1, TS_TG1-039-2 and TS_TG1-048-1.

Equipped with high-voltage high-power high-speed switches, it features fast response (< 100 μs), contactless operation, low noise, as well as overvoltage and overcurrent monitoring and protection. With a rated voltage of DC 1,500 V and a rated current of 300 A, it is applicable to scenarios requiring high-voltage DC switching, including new energy systems, energy storage systems, DC power distribution, electric vehicle testing, photovoltaic inverters and reliability tests of high-voltage DC relays.

> 5.7-inch color TFT touchscreen front panel operation

> Fast contactless switching with silent operation and long service life

> Supports switching up to 1,500 V DC and 300 A

> Single-throw switching design for easy operation

> Built-in overload protection and thermal management system
