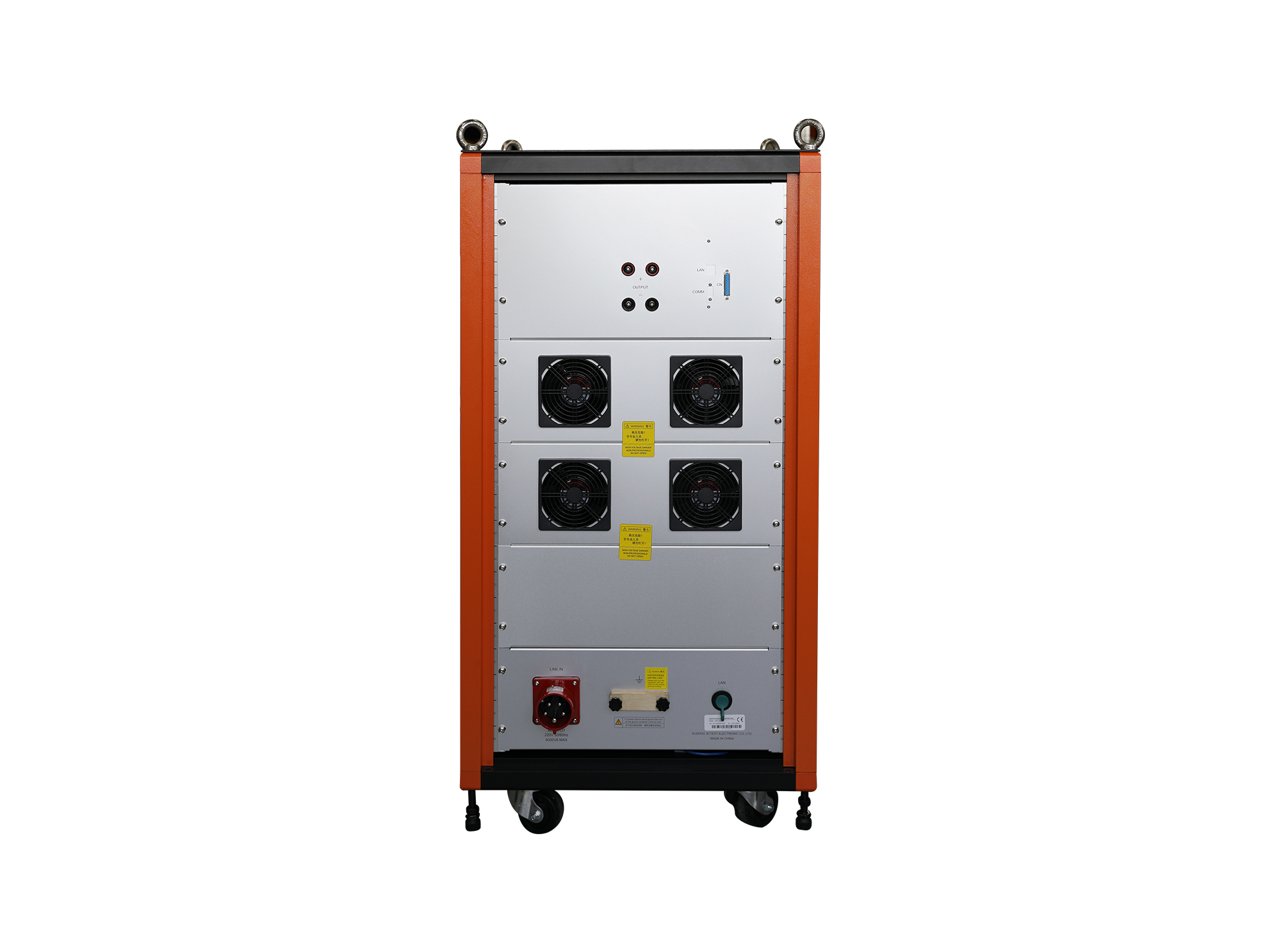

Ripple Signal Generator

RSG 80C50

The RSG 80C50 Ripple Signal Generator complies with ISO/TS 7637-4, ISO 21498, VW 80300, GJB 151B and ISO 11452-8

Request a Quote Add to Compare Add to Quote List

Introduction

The RSG 80C50 Ripple Signal Generator complies with ISO/TS 7637-4, ISO 21498, VW 80300, GJB 151B and ISO 11452-8, fulfilling the requirements of Pulse B for transient conducted measurement of new-energy vehicle electric drive systems and high-voltage components.

Adopting our 3rd-generation control platform, the instrument delivers intelligent control and easy operation. Parameters can be configured via the AutoLab software for one-click test execution, with support for closed-loop AC voltage and current testing.

Connection Diagram：

ISO 7637-4, B-wave line-to-line

ISO 7637-4,B波连接图 line-to-line.png

ISO 7637-4, B-wave HV+ line-to-ground

ISO 7637-4,B波连接图 HV+ line-to-ground.png

Features

> Equipped with overvoltage and overcurrent protection functions

> Multiple operation modes

> Low-frequency power amplifier 10 Hz ~ 300 kHz, Max. output voltage 160 VPP, Max. output current 100 APP

> Output voltage accuracy ±0.2 V

> Supports closed-loop AC voltage and current testing

> Ethernet and RJ45 interfaces, used for PC remote control and printing test reports

Standards

ISO Standards

GJB Standards

GJB 151B

Other Standards

VW 80300

Application Areas

Specification

Technical Parameters

Frequency Range	10 Hz ~ 300 kHz
Frequency Step	0.01 Hz
Max. Output Voltage	160 V_PP
Max. Current Voltage	100 A_PP
Ripple Dwell Time	2 s ~ 999 s, resolution 0.1 s
Output Voltage Accuracy	± 0.2 V

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cable, Grounding Wire

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Ripple Signal Generator Next: None Back to list

Display Screen	5.7” TFT touch screen
Working Power	AC 380 V，±10%，50~60 Hz
Communication Interface	Ethernet LAN (RJ45)
Working Status Indication	LED indication and LCD display in front panel
Ground Connection	Flat grounding wire
Max. Power Consumption	6 kW
Dimension	22U rack, 1,250 mm (H) * 800 mm (D) * 600 mm (W)
Weight	Approx. 156 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%, RH (no condensation)

1	Coupling Transformer	Model: TPT-7637-4C100B Max. unsaturated voltage: 160 V_PP Max. coupling current: 100 A_PP Max. EUT current: DC 100 A Max. EUT voltage: DC 1,000 V Turns ratio: 1:1 Frequency: 10 Hz ~ 300 kHz
2	PC Control Software	Model: AutoLab Support Windows 7/8/10/11; Users can easily customize test sequences and arbitrary waveforms. The system automatically identifies and enables flexible test report generation.
