High-Frequency Radiation Ring

HFRR Series

The HFRR series high-frequency radiation rings complies with NECA TR-28 standard.

Request a Quote Add to Compare Add to Quote List

Introduction

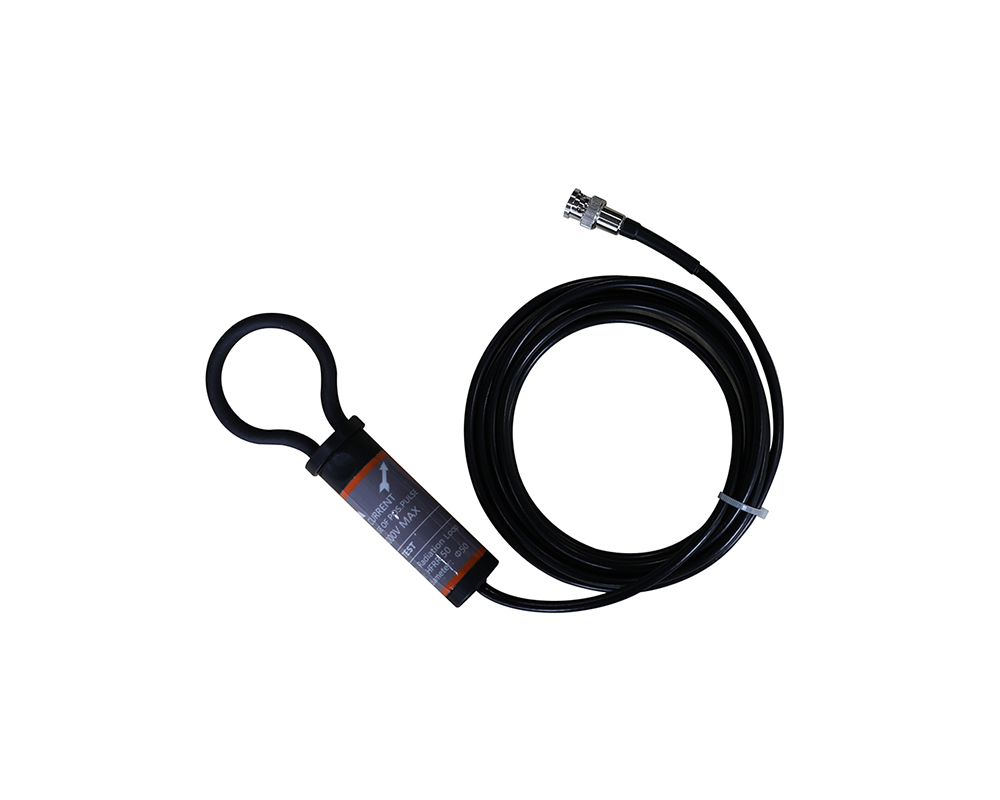

The HFRR series high-frequency radiation rings complies with NECA TR-28 standard. Matched with high-frequency noise simulators, they are applied to radiation susceptibility tests of various EUTs.

Features

> High adaptability to high-amplitude pulse signals

> Fast rising edge, wide pulse width range and abundant frequency spectrum of pulsed radiation field

Standards

Other Standards

NECA TR-28

Application Areas

Specification

Technical Parameters

Model	Max. Input Pulse Voltage	Input Pulse Width	Ring Diameter (mm)	Cable Type	Cable Length (mm)	Connector Type	Weight (kg)
HFRR 50	±4,000 V	50 ns ~ 1 μs	50	RG-58	2,000	BNC (HBNC-GP-55U)	0.20
HFRR 75	±4,000 V	50 ns ~ 1 μs	75	RG-58	2,000	BNC (HBNC-GP-55U)	0.20
HFRR 100	±4,000 V	50 ns ~ 1 μs	100	RG-58	2,000	BNC (HBNC-GP-55U)	0.40
HFRR 150	±4,000 V	50 ns ~ 1 μs	150	RG-58	2,000	BNC (HBNC-GP-55U)	0.48
HFRR 200	±4,000 V	50 ns ~ 1 μs	200	RG-58	2,000	BNC (HBNC-GP-55U)	0.60
HFRR 250	±4,000 V	50 ns ~ 1 μs	250	RG-58	2,000	BNC (HBNC-GP-55U)	0.66
HFRR 300	±4,000 V	50 ns ~ 1 μs	300	RG-58	2,000	BNC (HBNC-GP-55U)	0.73

Accessories

Optional Accessories

1	High-Frequency Noise Simulator	Model: INS 400 The INS 400 high-frequency noise simulator simulates interference generated by rapid current switching of inductive components, typically caused by relay on-off actions. Output voltage: 0.1 kV ~ 2 kV Pulse width: 50 ns ~ 1 μs
2	High-Frequency Noise Simulator	Model: INS 800 The INS 800 high-frequency noise simulator simulates interference generated by rapid current switching of inductive components, typically caused by relay on-off actions. Output voltage: 0.2 kV ~ 4 kV Pulse width: 50 ns ~ 1 μs
