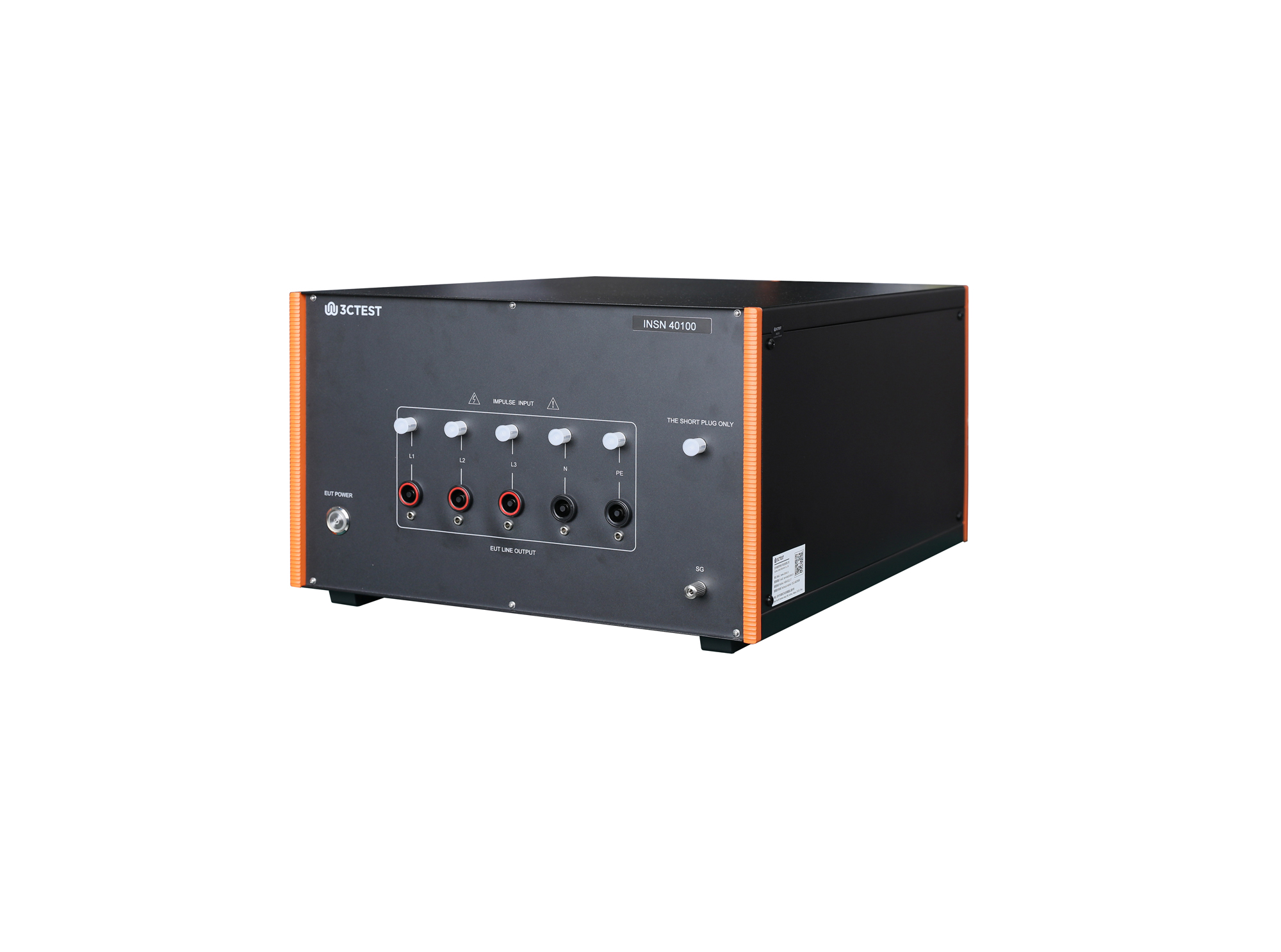

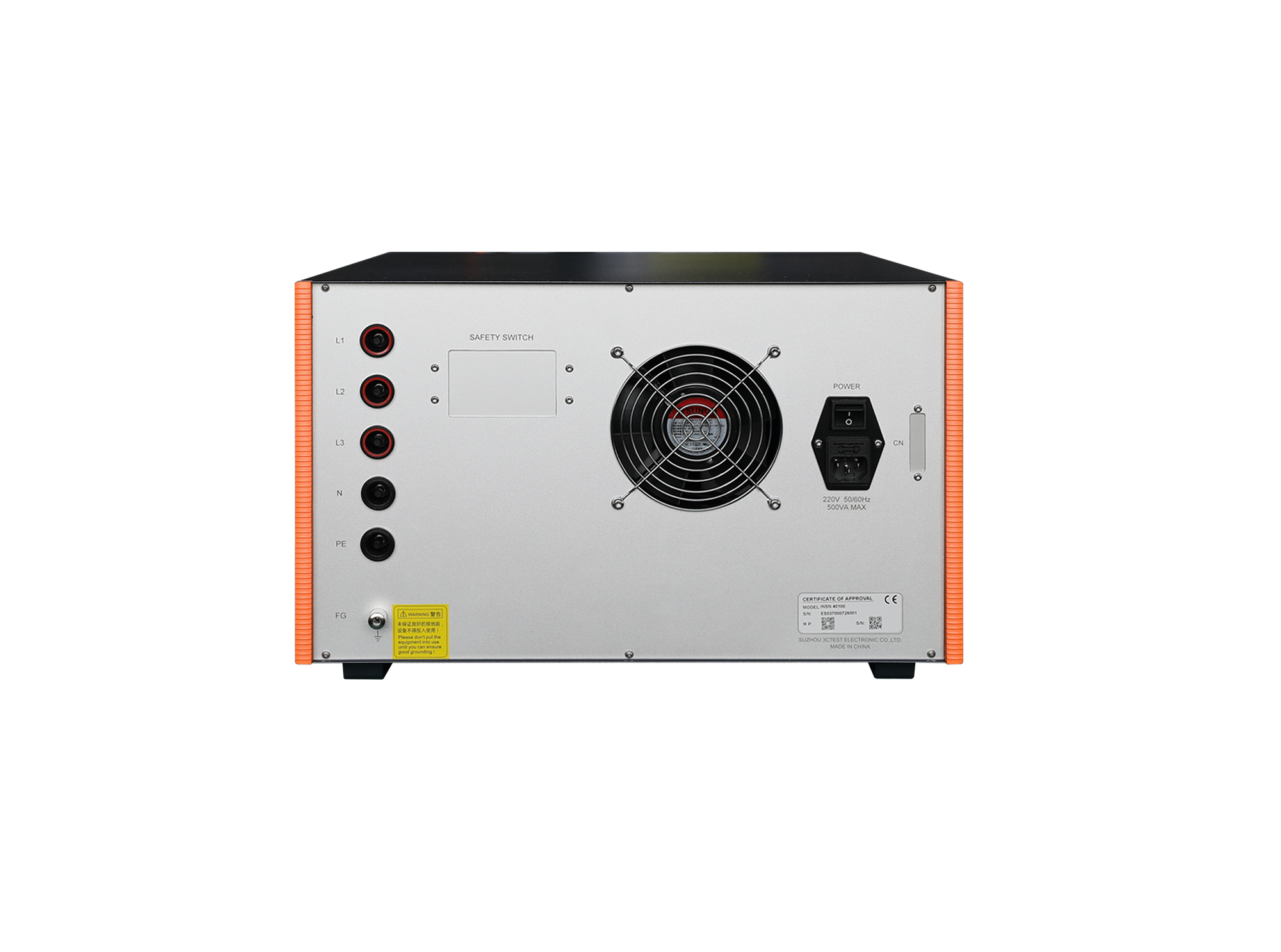

High Frequency Noise Coupling/Decoupling Network

INSN 40100

INSN 40100 High-frequency Noise Coupling/Decoupling Network, meet the requirements of NECA TR-28 standard assessing the immunity of electronic equipment to transient conducted interference. It also tests immunity performance of systems that can be qualitatively judged, partial radiation immunity and system grounding performance.

Designed as an external coupling/decoupling network, it is used with INS 800 high-frequency noise simulator. The max open-circuit test voltage is 8,000 V, 4,000 V @50Ω and the max load capacity is AC 400 V 100 A, DC 400 V 100 A.

> External coupling/decoupling network, matched with high frequency noise simulator INS 800

> Max. open-circuit test voltage 8,000 V, 4,000 V@50 Ω

> Max. load capacity of EUT: AC 400 V 100 A, DC 400 V 100 A
